Description

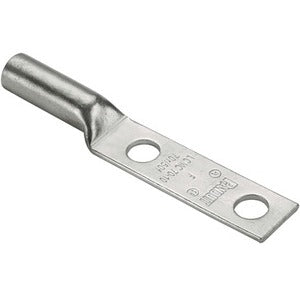

Panduit Terminal Connector – Tin-Plated, 6-Pack, 1 x Terminal
Discover a reliable, corrosion-resistant solution for secure electrical terminations with the Panduit Terminal Connector. Designed for versatility and built to perform under demanding environments, this tin-plated terminal connector comes in a convenient 6-pack, making it an ideal choice for industrial control panels, telecommunications racks, and remote electrical installations. The compact design is purpose-built to fit in tight spaces without compromising connection integrity, while the Tin plating delivers superior conductivity and enhanced resistance to tarnish and corrosion over time. Panduit’s heritage of quality engineering shines through in this straightforward, durable connector, offering you long-lasting performance in both new builds and maintenance projects.
Whether you’re wiring a distributed power system, assembling a panel enclosure, or replacing aging components, the Panduit Terminal Connector is engineered to deliver consistent, repeatable results. Expect clean, corrosion-resistant terminations that stay secure through vibration, temperature cycling, and frequent environmental changes. The 1 x Terminal configuration keeps installation simple, reducing the risk of miswired connections while delivering dependable electrical performance. With Panduit’s precision manufacturing and strict quality control, you can trust that these tin-plated terminals will provide reliable conductivity and a stable electrical path for years to come.
- High-Quality Tin-Plated Finish: The terminal connectors feature a tin plating that enhances electrical conductivity and resists corrosion. This makes them ideal for environments with humidity, temperature fluctuations, or exposure to salts and other corrosive elements. The tin finish also helps reduce the risk of oxidation at the termination, ensuring a stable, long-lasting connection that remains dependable across service cycles.
- Compact 6-Pack for Ready-Made Deployments: The Panduit Terminal Connector is packaged in a practical 6-pack, enabling quick deployment across multiple wiring runs or panels. This bulk packaging is especially valuable for field installations, system upgrades, and maintenance projects where you need consistent components at hand, minimizing downtime and ensuring uniform performance across all terminations.
- 1 x Terminal Configuration for Easy Integration: The simple 1 x Terminal design is compatible with a broad range of wire terminations, supporting straightforward installation in control panels, distribution boards, and cabinet enclosures. Its streamlined profile helps you maximize available space in crowded electrical environments while maintaining secure, dependable connections.
- Durable Material for Long-Life Performance: Constructed from a robust copper alloy with a tin plating, these connectors are built to withstand repeated disconnect/reconnect cycles, vibration, and thermal cycling. This durability translates into fewer replacement parts, reduced maintenance costs, and improved uptime for critical systems.
- Versatile Applications Across Industries: Panduit’s terminal connectors are well-suited for industrial automation, telecommunications, data centers, and electrical installations where reliable wiring terminations are essential. The tin-plated connectors resist galling and wear, ensuring consistent performance in panel wiring, field installations, and service upgrades.
- Quantity: 6-pack
- Terminal Type: 1 x Terminal
- Finish: Tin plating
- Material: Copper alloy
- Brand: Panduit
- Applications: Electrical assemblies, control panels, telecom wiring, and panel upgrades
- Power down electrical equipment and verify absence of voltage before beginning installation. Safety is essential to prevent shock and equipment damage during terminations.
- Prepare conductors by trimming insulation to the required length and removing any oxide or oxidation from the conductor surface. Clean, exposed wire ensures better contact and minimizes resistance at the termination.
- Insert the conductor into the terminal with a secure fit. Ensure the insulation is correctly seated and that there is no exposed copper beyond the terminal interface, which could cause short circuits or arcing.
- Engage the terminal with the appropriate crimp, clamp, or termination method specified for the connector and wire gauge. Use the proper tool recommended by Panduit to achieve a solid, uniform crimp or compression without damaging the terminal or insulation.
- Inspect the finished termination for alignment, cleanliness, and secure seating. A proper termination should show no gaps, and the conductor should be fully captured within the terminal without any exposed strands that could cause intermittent connections.
- Terminate additional wires as needed, labeling each connection for easy traceability. After completing the wiring, perform a continuity check and insulation resistance test to confirm proper installation and system integrity.
- What is included in the Panduit Terminal Connector 6-pack? The 6-pack includes six tin-plated terminal connectors designed for reliable 1 x terminal terminations, ready for quick deployment in wiring projects.
- What environments are these connectors best suited for? They are ideal for industrial control panels, telecom racks, data centers, and any installation requiring corrosion-resistant, reliable terminations, especially in environments with humidity or exposure to contaminants.
- What makes tin plating advantageous for terminal connectors? Tin plating provides improved conductivity, tarnish resistance, and corrosion protection, helping maintain a stable electrical path over time and reducing maintenance needs.
- Can these connectors handle vibration or thermal cycling? Yes. Built from a durable copper alloy and finished with tin plating, they are designed to withstand vibration and temperature changes common in industrial settings, maintaining a secure connection.
- Do I need special tools to install these connectors? Installation typically requires the appropriate crimping or termination tools recommended by Panduit for the specific wire gauge and connector type to ensure proper performance.
