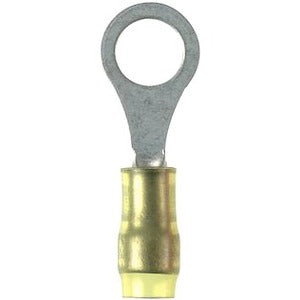

Panduit Terminal Connector — Tin-Plated Yellow Ring Terminal, 100 Pack

Upgrade your electrical assemblies with the trusted reliability of Panduit Terminal Connectors. This 100-pack delivers durable, tin-plated ring terminals in a yellow insulated design, engineered to inhibit corrosion and ensure secure, long-lasting connections across automotive, industrial, and electronics applications. Whether you’re building harnesses, upgrading panels, or performing routine maintenance, these ring terminals provide quick, dependable terminations with consistent performance in challenging environments.

• Corrosion-resistant tin plating: Each terminal is tin-plated to inhibit oxidation and corrosion, extending the life of the connection in damp, humid, or temperature-fluctuating conditions.
• Yellow insulated ring terminals: The yellow insulation adds visibility and provides reliable protection against accidental shorts while indicating a standard wire-gauge range for easy selection.
• Value-packed 100-pack: A bulk supply that keeps your workshop, job sites, and service vehicles stocked with dependable ring terminals for any project.
• Secure ring-terminal design: The ring configuration delivers a solid clamp around a stud or bolt, helping resist loosening from vibration and mechanical stress.
• Versatile for multiple applications: Perfect for automotive wiring, electrical panels, control cabinets, and other harness assemblies where durable crimped connections are essential.

Technical Details of Panduit Terminal Connector

• Pack size: 100 ring terminals
• Terminal type: Ring terminal (insulated, yellow)
• Conductive material: Copper-based conductor with tin plating
• Plating: Tin-plated to inhibit corrosion
• Insulation: Yellow insulated shell for protection and visibility
• Termination style: Crimp terminal designed for standard crimp tooling
• Application: Suitable for automotive, industrial, and electronics wiring needs

how to install Panduit Terminal Connector

Installing a Panduit tin-plated yellow ring terminal is straightforward when you follow proper crimping practices and use the right tools. Below are general steps to achieve a secure, compliant termination.

Step 1 — Select the correct terminal and wire gauge: Confirm that the yellow insulated ring terminal is appropriate for the conductor size you are using. Match the terminal to a wire gauge within the tool’s and terminal’s recommended range. Incorrect size can lead to poor crimp performance or intermittent connections.

Step 2 — Prepare the conductor: Strip the insulation from the wire to expose a clean, straight conductor length per the terminal’s specifications. Ensure there are no nicks or damaged strands, and twist the strands together to prevent fraying during insertion.

Step 3 — Insert the conductor into the terminal: Insert the stripped wire firmly into the barrel of the ring terminal. Make certain the conductor is fully seated and not protruding beyond the barrel, which could affect the crimp and electrical quality.

Step 4 — Crimp with the appropriate tool: Use a high-quality crimping tool designed for insulated ring terminals. Position the crimping jaws at the barrel crimp zone and apply even pressure until the crimp is fully formed. If your tool has separate stops for conductor and insulation, ensure both are securely crimped. For dual-crimp designs, confirm a clean, uniform crimp around the barrel and a solid bite on the insulation where applicable.

Step 5 — Inspect and verify: Check for a solid mechanical fit, no loose strands, and a clean, uniform crimp. Gently tug on the wire to verify the connection is secure. Ensure the insulation is flush against the wire and that there is no excess exposed conductor beyond the barrel. If the crimp shows gaps or deformities, re-crimp or replace the terminal.

Step 6 — Attach to a stud or bolt: Place the ring over the stud or bolt and fasten with the appropriate nut or fastener. Ensure the connection is tight and that the conductor remains properly seated within the terminal after installation. For vibration-prone applications, consider additional securing methods or sealants as recommended by electrical standards and your project specifications.

Step 7 — Final checks: After installation, perform a continuity or resistance check if equipment allows. Inspect for heat around the terminal during initial operation and recheck periodically as part of preventative maintenance. Proper installation minimizes the risk of loose connections, heat buildup, and electrical faults.

Frequently asked questions

Q: Are these terminals insulated and color-coded? A: Yes. They feature yellow insulation for protection and visibility, indicating insulation and ease of identification in wiring harnesses.

Q: How many terminals come in the package? A: The package contains 100 ring terminals, designed for bulk installation and long-term stock in workshops or service fleets.

Q: What is the plating and its benefit? A: The terminals are tin-plated, which helps inhibit corrosion and maintain reliable electrical contact in demanding environments.

Q: What kinds of projects are suitable for these Panduit terminals? A: They are well-suited for automotive wiring, electrical panels, control cabinets, and any application requiring a durable, crimped ring-terminal connection.

Q: Do I need a special tool to crimp these terminals? A: A standard crimp tool sized for insulated terminals is typically used. Using the proper tool ensures a secure, compliant termination and extends the life of the connection.

Q: Can these terminals be used in harsh or outdoor environments? A: The tin plating offers corrosion resistance, and the insulated design provides protection against short circuits. For extreme outdoor exposure, verify with your application’s environmental requirements and protective enclosures.

The Panduit Terminal Connector set is designed to deliver dependable performance across a broad range of electrical tasks. With corrosion-resistant tin plating, yellow insulated sleeves for visibility and protection, and a bulk 100-pack format, these ring terminals are a practical choice for installers, technicians, and hobbyists alike. The combination of solid mechanical engagement and reliable electrical contact makes them a credible option for ensuring durable terminations in automotive wiring, panel wiring, and industrial harnessing projects. If you’re building or repairing wiring harnesses, choosing a trusted brand like Panduit can help you meet quality standards and improve the longevity of your installations. This set emphasizes the balance between performance, ease of use, and cost efficiency, delivering a credible solution for professional-grade electrical terminations.
