Panorama Antennas ASFC-155-U2-B1 Antenna

Panorama AntennasSKU: 4924233

Price:
Sale price$80.93

Description

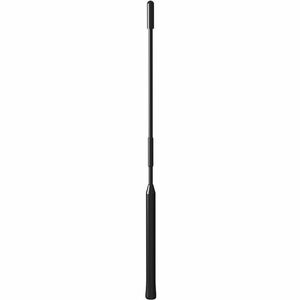

Panorama Antennas ASFC-155-U2-B1 Antenna

The Panorama ASFC-155-U2-B1 is a versatile, multi-band whip antenna engineered to support a broad spectrum of radio communications with a focus on reliability, discreet styling, and easy integration into a variety of environments. Designed to cover key bands across VHF, UHF, and mid-band frequencies, this antenna is ideal for applications where a single compact solution is preferred for multi-system compatibility. Its thoughtful construction delivers durability for daily use while preserving a sleek, low-profile silhouette that blends into control rooms, workstations, and equipment cabinets.

  • The ASFC-155-U2-B1 provides multi-band coverage across VHF 150-160 MHz, UHF 450-512 MHz, and 745-806 MHz, with fallback coverage across 806-870 MHz. This broad spectrum support helps reduce the need for multiple antennas and simplifies installation in mixed radio environments, ensuring compatibility with a wide range of radios and systems.
  • Style meets resilience in a compact, discreet design. The antenna whip features a flexible overmoulded base and a black jacketed flexible wound rod element. This combination delivers a robust, long-lasting performance while maintaining a refined appearance suitable for professional spaces where aesthetics matter as much as signal reliability.
  • Durability you can rely on. The ASFC-155-U2-B1 is built to withstand daily handling and routine installations without sacrificing performance. The flexible wound rod element and rugged base are designed to resist casual bumps, flexing, and minor environmental exposure encountered in typical indoor environments such as control rooms, maintenance areas, and equipment racks.
  • Minimalist installation with maximum flexibility. The base-mounted design is engineered for quick, clean mounting on flat surfaces, cabinets, or light-duty mounting points, reducing install time and allowing operators to deploy a multi-band solution with fewer parts and less maintenance.
  • Broad applicability across industries and use cases. Whether supporting enterprise communications, building management systems, emergency services infrastructure, or industrial control networks, the ASFC-155-U2-B1 offers a single, adaptable solution that helps maximize system reach while keeping equipment footprint small and visually discreet.

Technical Details of ASFC-155-U2-B1

  • Frequency coverage: VHF 150-160 MHz, UHF 450-512 MHz, 745-806 MHz with fallback coverage across 806-870 MHz.
  • Antenna type: Whip antenna with flexible wound rod element and flexible overmoulded base.
  • Construction features: Stylish, discreet, and durable design highlighted by a black jacketed element and a robust base for everyday use.
  • Mounting style: Base-mounted configuration designed for easy installation on surfaces, cabinets, or associated equipment.
  • Physical profile: Compact, low-profile form factor that blends into professional environments while offering broad frequency coverage.

how to install ASFC-155-U2-B1

  • Select a suitable installation location with minimal obstructions and away from large metal objects that could affect performance. A vertical surface or cabinet proximity often yields the most consistent results for multi-band whip antennas.
  • Prepare the mounting area by cleaning the surface and ensuring it is structurally capable of supporting the base. Use appropriate mounting hardware suitable for the surface type (screws, brackets, or fasteners compatible with the base design).
  • Secure the ASFC-155-U2-B1 base firmly to the chosen surface. Ensure the base is level and stable to prevent movement that could affect RF performance or long-term durability.
  • Connect the RF coaxial cable to your radio equipment following the connector and impedance guidelines for your system. Use appropriate connectors and keep cable runs as short as possible while avoiding sharp bends or kinks that could degrade signal quality.
  • Route and secure the coaxial cable to prevent strain, abrasion, or interference. Use cable clips or ties to maintain a clean, organized installation, and keep the cable away from power lines or sources of RF noise where feasible.
  • Power up the radio or system and perform a functional test. Validate reception and transmission across the target bands, adjusting the antenna height or position if necessary to optimize performance for your specific environment.

Frequently asked questions

  • Q: What bands does the ASFC-155-U2-B1 cover? A: It covers VHF 150-160 MHz, UHF 450-512 MHz, and 745-806 MHz, with fallback coverage across 806-870 MHz.
  • Q: Is this antenna suitable for discreet indoor installations? A: Yes. Its stylish, discreet, and durable design, combined with a black jacketed flexible wound rod element, makes it well-suited for indoor environments such as control rooms, equipment racks, and professional workspaces where a low-profile solution is preferred.
  • Q: How do I install the ASFC-155-U2-B1? A: Install the base on a clean, stable surface, connect the RF cable to your radio system, route and secure the coax, and test the antenna across the target bands. Refer to the installation steps outlined above for detailed guidance.
  • Q: What makes this antenna multi-band? A: The design is engineered to operate effectively across multiple spectrum bands (VHF, UHF, and mid-band ranges), enabling compatibility with diverse radio systems using a single, compact whip solution.
  • Q: What environments is the ASFC-155-U2-B1 intended for? A: The antenna is suitable for professional settings where a compact, durable, and multi-band solution is beneficial, including control rooms, equipment cabinets, and other indoor installations that require versatile signal coverage.
