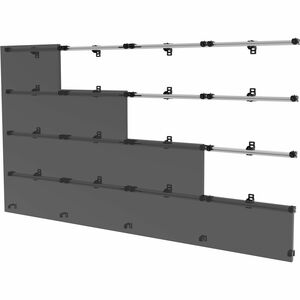

Peerless-AV SEAMLESS Kitted DS-LEDUNV1220-4x4 Wall Mount for LED Display, Video Wall, Display - Black, Silver - Landscape/Portrait

The Peerless-AV SEAMLESS Kitted Universal dvLED Mounting System is engineered to deliver a truly seamless video wall experience with a minimal footprint and maximum versatility. This slim, modular mounting solution is designed to simplify the installation of large-scale dvLED displays by consolidating essential components into a single, cost-effective kit. At the heart of the system lies a patent-pending universal spacer that makes the mount adaptable to a broad range of latching dvLED panels, eliminating the need for custom fabrication and reducing field complexity. With a streamlined frame, precisely engineered display adapters, and a mounting framework optimized for both landscape and portrait configurations, the SEAMLESS Kitted DS-LEDUNV1220-4x4 delivers dependable support, effortless alignment, and a visually flawless result for LED walls in corporate lobbies, control rooms, retail environments, and creative installations.

• Ultra-slim, modular design: The mount minimizes depth behind the display, helping to preserve sightlines and reduce staging clearance while delivering a polished, professional look for video walls and LED displays.
• All-in-one, cost-effective kit: This ready-to-install system bundles display adapters, a mount frame, and the universal spacer into a single package, simplifying procurement and shortening installation timelines.
• Patent-pending universal spacer: A key feature that enables compatibility with a wide array of latching dvLED displays, providing a truly universal fit that minimizes on-site fabrication and rework.
• Precise X and Y alignment: Built-in alignment controls and modular adapters ensure tight tolerances between modules, producing a seamless mosaic with uniform gaps and consistent image quality across the 4x4 matrix.
• Flexible orientation and serviceability: Designed for both landscape and portrait layouts, with easy access to fasteners and modular components to simplify maintenance, realignment, or replacement without disassembling the entire wall.

Technical Details of Peerless-AV SEAMLESS Kitted DS-LEDUNV1220-4x4

• Configuration: Seamless Kitted Universal dvLED Mounting System configured for a 4x4 display matrix, enabling scalable video walls for large-format messaging and immersive visuals.
• Finish and aesthetics: Black and Silver frame options that blend with a wide range of interiors and LED panel finishes, offering a clean, professional appearance for corporate environments or retail spaces.
• Orientation support: Fully compatible with both landscape and portrait orientations to accommodate diverse wall layouts and content strategies.
• Inclusions: Display adaptors, mount frame, patent-pending universal spacer, and necessary mounting hardware to deliver a complete DVLED wall mounting solution out of the box.
• Compatibility: Engineered to adapt to most latching dvLED displays, reducing the need for model-specific hardware and enabling rapid deployment across multiple wall configurations.
• Construction: Slim profile with robust steel construction and reinforced joints designed to withstand the demands of large-format displays and high-traffic installation environments.
• Installation footprint: Optimized for wall-mounted DVLED walls with a streamlined silhouette that keeps the focus on the content rather than mounting hardware.

How to install Peerless-AV SEAMLESS Kitted DS-LEDUNV1220-4x4

To achieve a precise, secure video wall with minimal downtime, follow these steps that align with typical DVLED mounting best practices and the intended use of the SEAMLESS Kitted system.

• Plan and verify: Confirm the 4x4 configuration and determine whether the installation will be deployed in landscape or portrait orientation. Inspect the wall for plumbness, levelness, and load capacity to ensure a safe mounting surface.
• Prepare the mounting surface: Locate wall studs or appropriate anchors for concrete or masonry, and prepare the surface with a clean, level plane. If needed, install a backer or mounting plate to distribute weight evenly behind the wall.
• Unpack and inspect the kit: Check the mount frame, display adapters, universal spacer, and all mounting hardware for completeness and any signs of transit damage. Cross-check against the 4x4 layout to ensure correct components are available.
• Attach frame to wall: Begin by securing the mount frame to the wall using the supplied hardware. Use a level to confirm that the frame is perfectly plumb and square, then tighten fasteners to the recommended torque.
• Attach display adapters and spacer: Mount each dvLED display adaptor to its corresponding LED module, then install the patent-pending universal spacer as directed by the installation guide. Ensure uniform spacing and alignment cues line up across all modules.
• Install the DVLED modules: Starting from one corner, place and secure each LED module to the mount frame, making incremental X and Y adjustments to achieve a seamless seam between modules. Recheck alignment after every few modules.
• Fine-tune and verify: Once all modules are mounted, perform a final alignment pass to minimize gaps, verify image continuity across the entire 4x4 wall, and check for any misalignments or loose hardware. Test power and signal connections to confirm full functionality.
• Secure and document: Tighten all fasteners to the recommended torque, record installation details for maintenance, and ensure that cables are neatly managed to prevent strain or accidental disconnections during operation.

Frequently asked questions

• Q: What displays are compatible with the SEAMLESS Kitted DS-LEDUNV1220-4x4? A: The kit is designed to be adaptable to most latching dvLED displays via the patent-pending universal spacer, enabling a broad range of panel depths and latch mechanisms. For exact compatibility with a specific model, consult the installation guide or contact Peerless-AV support.
• Q: Can the system be used in both landscape and portrait orientations? A: Yes. The SEAMLESS Kitted DS-LEDUNV1220-4x4 is engineered to support both orientations, enabling flexible wall configurations and content layouts to suit different spaces and viewing angles.
• Q: What is included in the kit? A: The kit includes display adapters, a mount frame, the patent-pending universal spacer, and the mounting hardware necessary to assemble a complete DVLED wall installation. Some installations may require additional fasteners based on wall type.
• Q: Do I need specialized tools? A: Most installations can be completed with standard hand tools and a level. Depending on the wall material, you may need a drill, masonry bits, or anchors suitable for supporting DVLED panels.
• Q: How do I maintain alignment after installation? A: Periodic checks of fasteners and alignment guides are recommended. The modular design of the system makes adjustments straightforward, allowing you to re-level and re-align without disassembling the entire wall.
• Q: Is serviceability a consideration with this kit? A: Yes. The Kitted design emphasizes accessible components and modular connections, which simplifies routine maintenance, part replacement, and upgrades as new dvLED panels become available.
