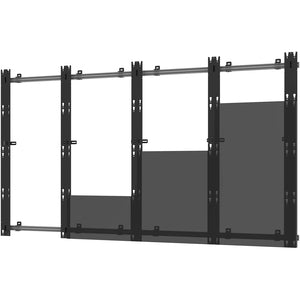

Peerless-AV SEAMLESS Kitted DS-LEDZRD-4X4 Wall Mount for LED Display

The Peerless-AV SEAMLESS Kitted DS-LEDZRD-4X4 Wall Mount is the premium mounting solution engineered to deliver a flush, virtually seamless presentation for 4x4 Direct View LED tile configurations. Built for precision and ease, this system is part of Peerless-AV’s SEAMLESS Kitted Series Flat dvLED Mounting System, purpose-built to complement the sleek lines of Sony Crystal B and C Series Direct View LED Displays. With a focus on space efficiency, clean aesthetics, and robust construction, the DS-LEDZRD-4X4 enables installers to achieve a professional, museum-grade look in a variety of environments—from corporate lobbies to immersive digital signage applications. The design emphasizes minimal depth while maintaining outstanding load-bearing capacity, ensuring your LED wall remains stable, level, and visually continuous across the full surface. By integrating cable management directly into the mounting framework and offering straightforward hang hardware, this kit reduces installation time and post-install adjustments, so your video wall looks perfect and performs reliably from day one.

• Seamless, low-profile mounting for Sony Crystal B and C Series DVLED displays: The DS-LEDZRD-4X4 is purpose-built to create a near-invisible junction between tiles, delivering a uniform, uninterrupted viewing surface. Its streamlined silhouette minimizes gaps and shadows between panels, helping your content shine with enhanced brightness and uniform color across the entire wall. Designed to align perfectly with Sony Crystal B and Crystal C Series displays, this mount prioritizes both aesthetics and performance, ensuring a premium display experience in high-visibility applications.
• Modular, configurable design for multi-tile DVLED walls: The SEAMLESS Kitted approach emphasizes flexibility, enabling configurations that maximize screen real estate while preserving a clean profile. Whether you’re assembling a compact 2x2 cluster or expanding to a larger 4x4 array, the DS-LEDZRD-4X4 provides precise alignment, repeatable mounting geometry, and scalable support that adapts to evolving display layouts. This modularity helps minimize on-site guesswork and streamlines future upgrades or expansions without sacrificing visual continuity.
• Integrated cable management for a tidy, service-friendly install: A key feature of the SEAMLESS Kitted system is its built-in approach to cable routing. The mount conceals and organizes power, signal, and data cables, reducing clutter behind the wall and along the back of the display. The result is a safer, more reliable installation with less risk of cable strain or accidental disconnections during maintenance or future reconfigurations. With cables kept neatly out of sight, the overall presentation is cleaner, more professional, and easier to service over time.
• Easy-hang hardware and fast installation for a confident, secure mount: Peerless-AV equips the DS-LEDZRD-4X4 with intuitive, pre-assembled hardware that simplifies installation while delivering a strong, secure attachment to the wall. The easy-hang mechanism minimizes the steps required to mount the display and align each tile, helping technicians complete projects faster and with fewer adjustments. This user-friendly approach reduces downtime during installation and service calls, ensuring your video wall delivers consistent performance from the moment it goes live.
• Durable finish options and compliance for professional installations: The DS-LEDZRD-4X4 features a robust finish in black and silver to complement a wide range of interiors and branding schemes. As a TAA-compliant solution, it meets procurement standards for eligible government and defense projects, and its sturdy construction is designed to withstand the demands of long-term, high-usage environments. The combination of quality materials, precise engineering, and strict compliance makes this wall mount a dependable choice for demanding commercial installations where reliability matters as much as appearance.

Technical Details of [DS-LEDZRD-4X4]

• Model / Product family: DS-LEDZRD-4X4, part of Peerless-AV SEAMLESS Kitted Series Flat dvLED Mounting System
• Compatibility: Designed exclusively for Sony Crystal B and Crystal C Series Direct View LED Displays
• Finish / color options: Black and Silver finish to match modern AV environments
• Compliance: TAA Compliant
• Mount type: Wall-mounted, seamless dvLED mounting system
• Configuration support: Supports multi-tile DVLED wall configurations, optimized for 4x4 tile grids

How to install [DS-LEDZRD-4X4]

• Step 1: Prepare the mounting surface and verify structural capability to support a 4x4 dvLED wall. Check for level and plumb accuracy, and confirm stud placement or an appropriate anchor system per local building codes.
• Step 2: Unpack the DS-LEDZRD-4X4 kit and lay out all components. Align the mounting rails and brackets with the intended tile configuration, ensuring compatibility with Sony Crystal B/C Series displays and matching the orientation (landscape or portrait) required by your installation.
• Step 3: Attach the mounting framework to the wall using the included hardware, taking care to maintain level alignment across all mounting points. Tighten fasteners evenly to prevent any tilt or misalignment that could affect the seamless appearance of the final video wall.
• Step 4: Secure the LED tiles to the mounting frame using the easy-hang hardware. Install in stages to maintain alignment, and adjust tile positioning to achieve a perfectly flush surface across the entire 4x4 array.
• Step 5: Route and secure cables through the built-in cable management channels, connect power and signal lines, and perform a system test to verify brightness uniformity, color calibration, and screen alignment. Finalize by photometering the wall and making any necessary micro-adjustments to ensure a continuous display with minimal gaps.

Frequently asked questions

• Q: What displays are compatible with the DS-LEDZRD-4X4? A: This wall mount is designed exclusively for Sony Crystal B and Crystal C Series Direct View LED Displays, delivering a tailored fit and optimal performance for those panels.
• Q: Does this mounting system support multiple configurations? A: Yes. The SEAMLESS Kitted Series emphasizes modularity and seamless integration, enabling configurations that are ideal for 4x4 tile grids and adaptable to expanding or reconfiguring LED walls while preserving a flush, continuous surface.
• Q: Is the DS-LEDZRD-4X4 TAA compliant? A: Yes. The system is listed as TAA Compliant, suitable for government and enterprise procurement requirements where applicable.
• Q: What hardware is included with the kit? A: The kit includes the easy-hang hardware and integrated cable management components required to install and secure a 4x4 dvLED wall, along with mounting rails and brackets designed for precise alignment with Sony Crystal B/C displays.
• Q: What surfaces can support this wall mount? A: The DS-LEDZRD-4X4 is intended for sturdy, level walls capable of bearing the load of a multi-tile LED display. Always follow installation guidelines and local building codes to ensure a safe installation.
