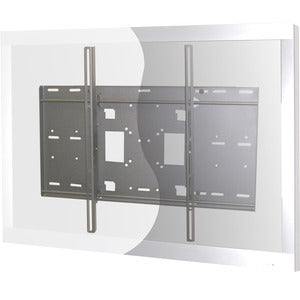

Planar FWMV-MXL Wall Mount for Flat Panel Display - Black

Planar FWMV-MXL is a high‑performance tilting wall mount engineered for large displays, delivering secure, flexible mounting for 75" to 98" screens weighing up to 300 lbs. This robust solution is designed to provide clean, professional aesthetics while offering versatile positioning to optimize viewing angles in home theaters, corporate spaces, and digital signage environments. With a tilt range of 12 degrees and support for both landscape and portrait orientations, it makes it effortless to tailor your setup to every seating arrangement, lighting condition, and room layout. Whether you’re upgrading a living room cinema, equipping a conference room, or creating a storefront display, the FWMV-MXL delivers dependable stability and precise alignment that professionals expect.

The Planar FWMV-MXL wall mount emphasizes quick, painless installation without compromising security. Its lockable design enables fixed wall installations, giving you peace of mind in public or semi‑public settings where tamper resistance matters. The universal hardware kit included with the mount ensures broad compatibility across a wide range of VESA patterns, reducing the headaches of sourcing adapters and simplifying installation for installers and DIY enthusiasts alike. The end result is a sleek, low‑profile mounting solution that keeps the focus on your display rather than the hardware supporting it.

• Heavy‑duty tilting wall mount designed to support 75" to 98" displays up to 300 lbs, delivering a robust mounting solution for large LCD and LED panels in home theaters, corporate spaces, classrooms, and retail environments. Its solid construction ensures long‑term reliability even in high‑traffic areas where screens are accessed or repositioned frequently.
• 12‑degree tilt range enables customizable viewing angles for seating layouts and lighting conditions, reducing glare and offering comfortable posture for extended viewing sessions. The tilt mechanism provides smooth, precise adjustments, making it easy to optimize the screen angle for different seats or devices while preserving the wall silhouette.
• Landscape or portrait orientation with precise lateral alignment capability ensures your screen is perfectly centered on the wall, even when room layouts change or after re‑hanging from future furniture arrangements. This flexibility helps maintain a balanced, professional look regardless of how the space evolves over time.
• Lockable design provides secure fixed‑wall installations, helping prevent unauthorized movement while maintaining a clean, professional appearance that highlights the display. In busy offices, classrooms, or public lobby areas, the lock adds a layer of security without sacrificing the streamlined silhouette you expect from a modern installation.
• Universal hardware kit included, covering a wide range of VESA patterns and mounting scenarios for quick, simple installation with widely available fasteners and standard tools. The kit reduces installation time and simplifies stock management for installers, ensuring you can mount most large‑format panels with confidence.

Technical Details of Planar FWMV-MXL Wall Mount for Flat Panel Display

• Display compatibility: 75" to 98"
• Weight capacity: Up to 300 lbs (136 kg)
• Tilt range: 12 degrees
• Orientation: Landscape or portrait supported
• Alignment: Precise lateral alignment for centering on the wall
• Locking: Lockable for fixed wall installations
• Finish: Black
• Hardware: Includes universal hardware kit
• Mount type: Tilting wall mount for flat panel displays

How to install Planar FWMV-MXL Wall Mount

• Prepare the mounting surface by confirming wall strength and locating studs or anchors capable of supporting the full 300 lb load; ensure you have a level workspace and the necessary tools before you begin.
• Attach the wall plate to the wall using the universal hardware kit provided, selecting fasteners suitable for the wall type and ensuring the plate is perfectly level for accurate mounting and long‑term stability.
• Attach the display mounting hardware to the back of your panel, following the device’s VESA pattern recommendations and using the universal hardware kit to secure spacers or adapters as needed to fit your specific panel.
• Hang the display onto the wall plate or attach the panel’s mounting hardware to the plate according to the instructions, then engage any locking mechanism if you are configuring a fixed wall installation to preserve alignment and security.
• Adjust the tilt within the 12‑degree range to obtain your preferred viewing angle, then use the precise lateral alignment to center the screen on the wall; recheck the level and tighten all fasteners after the final alignment is achieved.

Frequently asked questions

• Q: What display sizes does the Planar FWMV-MXL support?
• A: It supports large displays from 75" to 98" with a maximum weight of 300 lbs.
• Q: Can the mount be used in both landscape and portrait orientation?
• A: Yes. The mount supports both orientations with precise lateral alignment to keep the screen centered on the wall.
• Q: Is the mount lockable?
• A: Yes. It can be locked for fixed wall installations to enhance security and maintain a clean appearance.
• Q: Does the package include hardware?
• A: Yes. A universal hardware kit is included to fit a wide range of mounting patterns and panels.
• Q: What tilt adjustment does the mount offer?
• A: The Planar FWMV-MXL provides a 12-degree tilt range to optimize viewing angles and minimize glare.
• Q: Is professional installation required?
• A: While many installations are straightforward with the universal hardware kit, we recommend a qualified installer for complex wall structures or high‑rise installations to ensure safety and proper mounting.
