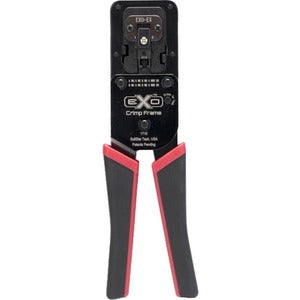

Platinum Tools EXO Crimp Frame with EXO-EX Die for ezEX-RJ45 Connectors

The Platinum Tools EXO Crimp Frame with EXO-EX Die is a precision termination system designed for demanding network installs. Built to handle larger cables and conductors, typically Cat6 and Cat6A, this patented duo is engineered to work seamlessly with the ezEX-RJ45 connectors. If you’re installing high-performance Ethernet networks where cleaner terminations and consistent results matter, this EXO-crimping solution delivers what you need—reliable crimps, faster workflows, and professional-grade outcomes that stand up to the rigors of data centers, voice/data applications, and intensive residential deployments.

What makes the EXO Crimp Frame with EXO-EX Die stand out is its tailored approach to larger-gauge cables. Traditional crimp frames can struggle with the stiffness and thickness of Cat6/6A conductors, leading to mis-aligned terminations or uneven compression. Platinum Tools solved this with the EXO system, pairing a robust crimp frame with a precision die that accommodates larger conductors while preserving the integrity of every conductor in the bundle. The result is consistently reliable performance across multiple crimps, reducing the need for re-terminations and callbacks in professional installations. This is crucial for installers who demand fast, repeatable results without compromising signal integrity.

Designed to complement the ezEX-RJ45 pass-through connectors, this combination streamlines the termination process. The pass-through design makes it easier to verify conductor seating, simplify trimming, and ensure that every pin aligns accurately with its corresponding contact. The EXO-EX Die is engineered to seat conductors flush against the connector’s termination face, helping to minimize solderless gaps and ensuring a solid, low-impedance connection that supports gigabit and 10G Ethernet performance. For installers working in tight spaces or with complex cable bundles, the EXO system offers a tangible advantage—precise terminations that look and test consistently, even after repeated insertions and removals during testing and labeling tasks.

Beyond performance, the EXO Crimp Frame with EXO-EX Die emphasizes durability and productive ergonomics. The frame is constructed to withstand the rigors of daily field use, with components designed for long service life and dependable repeatability. The ergonomic form helps reduce hand fatigue during long projects, and the tool’s balanced weight distribution allows for steady, precise crimps even when working with dense cables, shields, and jackets. When combined with ezEX-RJ45 connectors, this system provides a cohesive, professional-grade termination workflow that technicians can rely on—time after time.

• Designed for larger cables and conductors (Cat6/6A): The EXO Crimp Frame + EXO-EX Die is purpose-built to terminate the thicker cables that standard tools struggle with, delivering reliable crimps without compromising conductor seating or contact integrity.
• Patented EXO Crimp Frame with EXO-EX Die for precise, repeatable terminations: The combination ensures uniform compression and accurate alignment across every termination, reducing variation from one crimp to the next.
• Optimized for ezEX-RJ45 pass-through connectors: This system is engineered to pair seamlessly with ezEX-RJ45, enabling straightforward seating, cleaner terminations, and faster installation workflows in congested or high-density installations.
• Durable, ergonomic design for professional use: Built to withstand field conditions, the tool offers a comfortable grip and balanced feel to minimize hand fatigue during extended projects while delivering consistent results.
• Improved reliability and efficiency: By delivering solid crimps on thicker conductors with fewer mis-crimps and less rework, technicians can complete more terminations per shift with confidence in the electrical and data performance of each connection.

Technical Details of Platinum Tools EXO Crimp Frame with EXO-EX Die

• Product: EXO Crimp Frame with EXO-EX Die
• Designed for: Termination of larger cables and conductors, typically Cat6/6A
• Connector compatibility: ezEX-RJ45 pass-through connectors
• Die system: EXO-EX Die
• Crimp system: Patented EXO Crimp Frame
• Material and build: High-strength frame designed for durability in field use
• Usage note: Optimized for reliable terminations with RJ45 pass-through designs

how to install Platinum Tools EXO Crimp Frame with EXO-EX Die

Follow these steps to achieve fast, reliable terminations with Cat6/6A cables using ezEX-RJ45 connectors:

• Prepare the cable: Strip back the outer jacket to expose the conductors as specified for Cat6/6A terminations. neatly arrange and trim the conductors so that they are in the correct order and ready for seating in the ezEX-RJ45 connector.
• Verify conductor order: Ensure that the individual wire pairs are untwisted only the necessary amount and aligned to the connector’s pinout. Make sure there is no stray copper showing beyond the termination face.
• Insert into ezEX-RJ45: Place the prepared cable into the ezEX-RJ45 pass-through connector, aligning conductors with the appropriate contacts. The pass-through design should allow the conductor tips to extend slightly beyond the termination face for clean trims.
• Position the EXO-EX Die in the EXO Crimp Frame: Install the EXO-EX Die into the EXO Crimp Frame according to the manufacturer’s guidelines, ensuring proper seating and alignment with the connector face. Confirm that the die and frame are securely engaged and locked before crimping.
• Crimp and inspect: Squeeze the EXO Crimp Frame with steady, even pressure to complete the termination. Remove the connector and inspect the termination for uniform compression, proper seating, and clean trim. Confirm that the conductors are fully seated and that the plug’s pins align with the conductors without any misalignment or gaps.
• Test and label: If you have testing equipment, verify continuity and resistance within acceptable specifications. Label the termination as needed. If any conductor shows signs of improper seating, trim and reseat, then re-crimp with the EXO system for a repeatable result.

Frequently asked questions

• Q: What cables is this tool designed to terminate? A: It is designed for larger cables and conductors, particularly Cat6 and Cat6A, in conjunction with ezEX-RJ45 pass-through connectors.
• Q: Can I use standard RJ45 connectors with this crimp frame? A: This setup is optimized for ezEX-RJ45 pass-through connectors and the EXO-EX Die; for best results, use the recommended EZ/EXO-compatible components.
• Q: Is the EXO Crimp Frame compatible with other brands or connector systems? A: The EXO system is designed to work with Platinum Tools ezEX-RJ45 connectors and EXO-EX Die; compatibility with non-PLATINUM TOOLS components may vary and is not guaranteed.
• Q: What benefits does the EXO system offer over traditional crimp frames? A: It provides precise, repeatable terminations for thicker cables, optimized alignment with pass-through connectors, and a durable, ergonomic design that reduces rework and enhances installation efficiency.
• Q: How should I maintain the tool for longevity? A: Keep the tool clean, store it in a dry environment, and inspect the die and frame for wear or damage before each use. Regularly verify that the die seats are free of debris and that the connector seating remains accurate.
