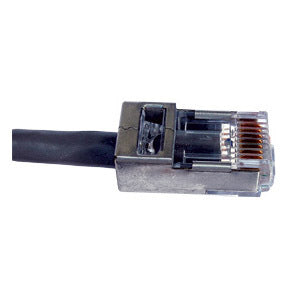

Platinum Tools EZ-RJ45 RJ-45 Connector
Upgrade your network installations with the Platinum Tools EZ-RJ45 RJ-45 Connector, engineered to deliver fast, precise terminations with professional-grade results. This connector is designed for installers and DIY enthusiasts who demand reliability, repeatable performance, and a streamlined workflow from cable preparation to final testing. With its pass-through design, color-coded wiring, and durable construction, it helps you achieve clean, professional terminations on CAT5e and CAT6 networks.
- Effortless pass-through termination: The EZ-RJ45 design simplifies wiring by allowing conductors to pass through the connector, enabling you to verify wiring order before final seating. This feature minimizes guesswork and reduces re-terminations, making it ideal for fast-paced installations and onsite adjustments.
- Durable, field-ready construction: Built to withstand the rigors of professional use, the connector features a robust housing and precision-molded insulator. Its rugged design resists damage from repeated insertions and crimping, ensuring long-term performance in duct, rack, or field environments.
- 8-position, gold-plated contacts for reliable connections: The connector employs high-quality contacts with reliable conductivity, delivering consistent signal integrity for 8P8C Ethernet terminations across Cat5e and Cat6 cables. Gold-plated contacts help resist corrosion and maintain solid performance over time.
- Color-coded, clear wiring guidance: Designed with intuitive color-coding and alignment cues to support both 568A and 568B wiring schemes. The clear visual references help installers terminate quickly and accurately, reducing mistakes during network rollouts or upgrades.
- Versatile compatibility and value: Compatible with common Cat5e and Cat6 twisted-pair cables and suitable for use with standard RJ-45 crimping tools in addition to Platinum Tools EZ-RJ45-specific tools. This versatility makes it a staple for professional installers who manage multiple cable types and project requirements.
Technical Details of Platinum Tools EZ-RJ45 RJ-45 Connector
- Product Type: RJ-45 connector
- Cable compatibility: Cat5e and Cat6 twisted-pair cables
- Termination method: Pass-through EZ-RJ45 design for quick terminations
- Contacts: 8-position, gold-plated contacts
- Material: Durable housing with precision-molded insulator
- Wiring schemes supported: 568A and 568B
- Color/finish: Natural or standard connector color as provided by packaging
- Packing options: Sold individually or in multi-pack configurations depending on retailer
how to install Platinum Tools EZ-RJ45 RJ-45 Connector
- Prepare the cable: Begin by selecting the appropriate length, then trim back the outer jacket to expose the twisted pairs. Be careful not to nick the wires and maintain the correct pair order. Gently untwist the pairs just enough to align them with the color-coding guidelines and ensure clean terminations.
- Choose the wiring scheme: Decide whether you will terminate using 568A or 568B. Use the color-coded guide on the connector to arrange each conductor in the correct position before insertion.
- Insert the conductors: Slide the prepared wires into the connector so that each conductor fully seats into its corresponding slot. With the pass-through design, you can verify that each wire is in the proper position and that no strands are misaligned before final seating.
- Crimp or seat the connector: Use a compatible RJ-45 crimp tool to secure the connector onto the cable. Apply steady, uniform pressure to seat the contacts firmly and trim any excess conductors flush with the connector body for a clean finish.
- Test and verify: After termination, test the cable with a standard cable tester to confirm continuity, proper pairing, and absence of miswiring. If any fault is detected, re-terminate the end promptly to ensure reliable network performance.
Frequently asked questions
- Q: Is this connector compatible with CAT5e and CAT6 cables? A: Yes. The EZ-RJ45 connector is designed to terminate both Cat5e and Cat6 twisted-pair cables, making it suitable for a wide range of Ethernet installations and upgrades.
- Q: Does it support both 568A and 568B wiring schemes? A: Yes. The connector includes clear guidance for both wiring schemes, allowing you to select and follow the appropriate code for your network.
- Q: Do I need a special tool to use the EZ-RJ45 connector? A: The connector is designed to work with standard RJ-45 crimp tools. Platinum Tools also offers EZ-RJ45-specific tools that optimize terminations, but common crimp tools are compatible for most applications.
- Q: Will the pass-through design help reduce mis-wiring and trimming mistakes? A: Absolutely. The pass-through feature lets you verify wire order before crimping, reducing the likelihood of mis-terminated cables and saving time on site.
- Q: How can I ensure reliable terminations in the field? A: Use proper preparation (strip length, avoid nicking wires), maintain correct pair order, verify with a cable tester after termination, and store connectors in a clean environment to prevent damage to contacts.
