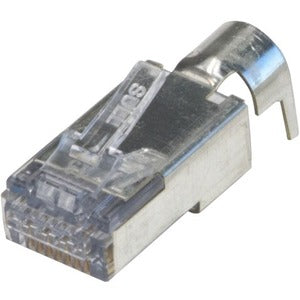

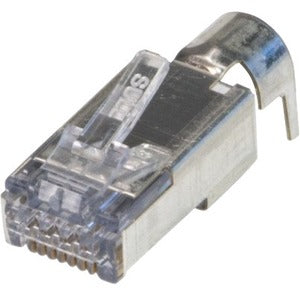

Platinum Tools ezEX 44 Shielded External Ground CAT6 Connector

Engineered for professional network installations, the Platinum Tools ezEX 44 Shielded, External Ground, CAT6 Connector delivers durable, high-performance terminations for shielded CAT6 environments. Built around the patented ezEX-RJ45 design, this connector is purpose-built for larger conductors and shielded cables, making every termination smoother, faster, and more reliable. Its unique integrated Hi-Lo stagger load bar guides wires into the correct positions, while the ability to pass big conductors through the front end lets technicians verify the wiring sequence before crimping. The external ground feature ensures shielding continuity, helping to minimize interference and maximize performance in demanding data center, enterprise, and residential installations. If you’re upgrading a network, upgrading a home theater system, or deploying high-speed connections in an office, this connector is designed to deliver consistent, clean terminations with less rework and fewer callbacks.

• Integrated Hi-Lo stagger load bar simplifies routing of larger conductors, enabling quick verification of the wiring sequence before termination and reducing the likelihood of miswires.
• Shielded construction minimizes EMI, crosstalk, and signal loss, delivering reliable CAT6 performance in crowded networks and environments with potential interference.
• External ground connection provides a solid shielding path, enhancing overall signal integrity and shielding effectiveness for high-frequency data transmission.
• Patented ezEX-RJ45 design is optimized for larger cables and conductors, allowing easier handling and compatible terminations with premium shielded cables.
• Front-end conductor pass-through enables on-the-spot wiring verification, speeding up installations and helping technicians confirm correct wire order before crimping.

Technical Details of Platinum Tools ezEX 44 Shielded External Ground CAT6 Connector

• Connector type: RJ45, shielded
• Cable category: CAT6
• Shielding: Shielded (STP) with external ground option for enhanced EMI protection
• Designed for larger conductor sizes commonly used with premium shielded CAT6 cables
• Termination mechanism: ezEX-RJ45 with integrated Hi-Lo stagger load bar
• Pre-termination verification: front-end pass-through to confirm wiring sequence before crimp
• Construction: durable, field-ready design intended for professional installations
• Grounding: external ground accessibility supports shielding continuity across connectors and panels

how to install Platinum Tools ezEX 44 Shielded External Ground CAT6 Connector

• Confirm cable type and conductor size to ensure compatibility with shielded CAT6 connectors designed for larger conductors.
• Prepare the cable by stripping jacket length as specified by the connector’s guidelines, exposing conductors with the correct length for termination.
• Slide the connector onto the cable from the front, allowing the conductors to align with the contact positions while utilizing the front-end pass-through to verify wiring order.
• Inspect the wiring sequence visually through the front opening, ensuring that each conductor is in the correct position according to the CAT6 wiring standard.
• Crimp the connector with a compatible RJ45 crimping tool, ensuring the external ground path engages properly and the contacts are fully seated.
• Test the terminated cable with a cable tester to verify continuity, pair integrity, and shielding performance; confirm the external ground connection is properly established.
• Label and store the finished termination for organization and future troubleshooting, then proceed to terminate additional cables as needed.

Frequently asked questions

• Q: Is the ezEX 44 connector compatible with standard CAT6 cables or only shielded variants?
• A: The ezEX 44 is designed for larger conductors and shielded CAT6 installations, delivering optimal performance with shielded cables while maintaining compatibility with high-quality CAT6 terminations.
• Q: Does this connector require a special tool?
• A: A compatible RJ45 crimping tool with the appropriate dies is recommended to ensure proper seating and termination of the connector.
• Q: What is the benefit of the external ground feature?
• A: The external ground path improves shielding continuity, helping to minimize EMI and maintain signal integrity in high-speed CAT6 applications.
• Q: Can I verify wiring before crimping?
• A: Yes. The front-end pass-through and Hi-Lo stagger load bar enable visual verification of the wiring order before termination, reducing rework and errors.
