Description

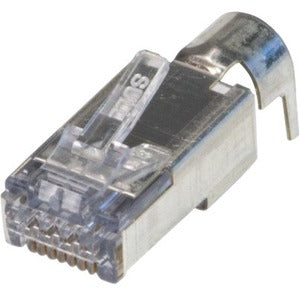

Upgrade your network terminations with the Platinum Tools ezEX 48 Shielded CAT6 connector. This patented, shielded RJ45 connector is engineered for larger cables and conductors, delivering reliable, high-performance terminations with less guesswork. Its innovative design includes an integrated Hi-Lo stagger load bar and a front-end pass-through that lets you verify the wiring sequence before you terminate, making it ideal for professional installs, data centers, and demanding residential or commercial cabling projects. Built to simplify complex runs, the ezEX 48 helps technicians achieve consistent results, faster, with a focus on quality shielding and dependable grounding.
- Designed for larger cables and conductors: The ezEX 48 is purpose-built to handle bigger conductors, reducing the need for awkward trims or re-terminations and minimizing the risk of poor connections in crowded cable bundles.
- Integrated Hi-Lo stagger load bar for consistent terminations: The Hi-Lo stagger load bar balances insertion forces during termination, promoting uniform contact compression across all pairs and improving repeatable performance from install to install.
- Front-end pass-through to verify wiring sequence: Large conductors can pass through the connector’s front end, allowing installers to visually verify the wiring order before crimping, which helps prevent mis-wires and rework on both CAT6 and shielded networks.
- Shielded construction with external grounding: Shielding provides superior EMI/RFI protection, while an external ground path ensures a solid, low-impedance ground connection for shielded CAT6 circuits in high-noise environments.
- Patented ezEX design for fast, confident terminations: The ezEX platform accelerates professional terminations for installers working with dense fiber and copper runs, delivering dependable results with less training time and fewer mistakes.
Technical Details of Platinum Tools ezEX 48 Shielded, External Ground, CAT6 Connector
- Connector Type: Shielded RJ45 connector with external grounding capability designed for CAT6 installations.
- Cable Type Compatibility: Primarily Cat6 shielded cabling; compatible with standard RJ45 terminations and shielding requirements for shielded networks.
- Conductor Handling: Accommodates larger conductors found in shielded CAT6 runs; features a front-end pass-through to facilitate pre-termination wiring verification.
- Shielding & Grounding: Full shield around the connector body with an external ground contact to improve EMI/RFI performance in shielded environments.
- Load Bar & Termination: Integrated Hi-Lo stagger load bar supports balanced termination forces and helps ensure uniform contact across all pairs during crimping.
- Termination Method: Crimp-style termination compatible with standard Platinum Tools EZ-series crimp tools; designed for repeatable, field-ready terminations.
- Standards & Compliance: Engineered to meet Category 6 performance requirements for shielded networks and designed to operate within professional data‑center and enterprise installations.
- Application: Ideal for high-density network deployments, home theater or media-room installations, and any environment requiring shielded connectivity and external grounding.
how to install Platinum Tools ezEX 48
Installing the ezEX 48 is a straightforward process designed to minimize guesswork and maximize performance. Start with the right preparation, then follow a consistent termination sequence to deliver a reliable, shielded connection:
- Prepare the cable: Strip the CAT6 shielded cable according to your tool’s guidelines, exposing the conductor length required for termination while keeping the shielding intact to preserve EMI protection.
- Inspect and verify: Use the front-end pass-through feature to visually confirm the wiring sequence before inserting the conductors into the connector body. Ensure the conductors are in the correct order (as specified by your termination standard).
- Arrange conductors: Place the conductors into the appropriate slots, aligning them with the Hi-Lo stagger load bar to ensure even seating and proper contact pressure across all pairs.
- Crimp termination: Insert the connector into the EZ-series crimp tool and apply firm, even pressure. The integrated load bar and shield alignment will help guide a clean, repeatable termination.
- Inspect the termination: After crimping, inspect the completed contact to confirm that the shield is engaged, the ground contact is seated, and all pairs are fully seated in their respective channels. If any conductor is misaligned, remove and re-terminate with proper alignment.
- Test the connection: Use a suitable Ethernet tester to verify continuity, pair integrity, and shielding performance. Confirm that the shielded path and ground connection are providing the expected signal quality.
- Label and organize: Once tested, label the connector and route cables neatly to maximize airflow, accessibility for maintenance, and future upgrades.
Frequently asked questions
- Q: What makes the ezEX 48 different from standard CAT6 connectors? A: The ezEX 48 combines a shielded design with an external ground option, an integrated Hi-Lo stagger load bar, and a front-end pass-through for quick wiring verification, delivering faster terminations with fewer errors on larger, shielded CAT6 conductors.
- Q: Can I use this connector for non-shielded CAT6 runs? A: While designed for shielded CAT6, it can be compatible with non-shielded environments, but you may not gain shielding or grounding benefits. For best results in shielded networks, use the EZEX 48 as intended.
- Q: Do I need a special crimp tool to install ezEX 48? A: The connector is designed for use with Platinum Tools EZ-series crimp tools. Using the intended tool helps ensure proper seating, grounding, and consistent terminations.
- Q: Is the connector compatible with T568A and T568B wiring schemes? A: The ezEX 48 supports standard termination schemes used in CAT6 installations; ensure you follow the same scheme consistently across the run to avoid cross-wiring.
- Q: What environments benefit most from external grounding? A: Environments with high EMI/RFI, dense cable bundles, data centers, or professional installations benefit most from external grounding, as it helps maintain signal integrity and reduces noise.
- Q: How can I verify that the termination is good? A: Use a certified Ethernet tester to verify continuity, pair order, and shielding effectiveness. Visual inspection via the front-end pass-through can help catch mis-ordered conductors before final crimping.
