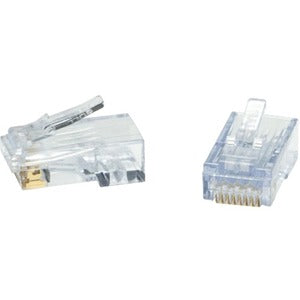

Platinum Tools ezEX48 - ezEX-RJ45 CAT6A Connector

Platinum ToolsSKU: 14265366

Price:
Sale price$88.01

Description

Platinum Tools ezEX48 - ezEX-RJ45 CAT6A Connector

Meet the Platinum Tools ezEX48, the premium ezEX-RJ45 CAT6A Connector engineered for professional network installations that demand speed, accuracy, and long-term reliability. This patented connector brings a smart, contractor-friendly design to the world of high-bandwidth cabling, combining an integrated Hi-Lo stagger load bar with a pass-through capability that enables you to verify the wiring sequence before termination. Ideal for Cat6A (Lg. Cat6) cabling, the ezEX48 is built to streamline terminations in tight spaces, reduce troubleshooting time, and deliver consistent, code-compliant results on every job. If you’re deploying 10 Gigabit Ethernet or future-proof CAT6A networks, this connector helps you stay ahead of the curve with less guesswork and more confidence. From data centers to corporate offices, home studios to enterprise installations, ezEX48 is designed to deliver dependable performance in the field while simplifying the process of a perfect termination.

  • Integrated Hi-Lo stagger load bar for precision terminations — The unique load bar arrangement guides conductors into the proper stagger, reducing tilt, misalignment, and common termination errors on Cat6A runs.
  • Front-end pass-through verification for large conductors — Big conductors can pass through the front of the connector, allowing you to inspect the wiring order before you crimp, which minimizes rework and speeds up the install.
  • Cat6A readiness for high-bandwidth networks — Specifically designed to support the higher performance demands of Cat6A cabling, delivering reliable performance for up to 10 Gigabit Ethernet in compliant installations.
  • User-friendly termination workflow — The ezEX48 simplifies the termination process with clear alignment and verification features that reduce miswiring and improve consistency across multiple terminations.
  • Rugged construction for professional use — Built to withstand the rigors of field installation, with precision contacts and durable housing that hold up to frequent terminations and handling.

Technical Details of Platinum Tools ezEX48 - ezEX-RJ45 CAT6A Connector

  • Connector type: RJ45 Cat6A connector featuring ezEX technology for simplified terminations
  • Special features: Integrated Hi-Lo stagger load bar and front-end pass-through capability to verify wiring before terminating
  • Conductor compatibility: Designed for Cat6A cabling with support for larger conductors passing through the front for quick verification
  • Application: Primarily used with Cat6A (Lg. Cat6) installations requiring reliable, field-ready terminations
  • Brand: Platinum Tools

How to Install Platinum Tools ezEX48 - ezEX-RJ45 CAT6A Connector

Step 1 — Prepare the cable: Begin by choosing a Cat6A cable appropriate for your installation. Ensure the cable jacket length is sufficient for the connector and that the cable is free from damage. Cut to length with a clean, straight edge, and trim back the outer jacket to expose the conductors with the recommended length for proper termination depth.

Step 2 — Strip and arrange conductors: Strip the insulation from each conductor to the required length, taking care to keep the wires aligned and in the correct order according to the wiring standard you’re using (T568A or T568B). The ezEX48’s design helps you visualize the sequence as you prepare the wires, which reduces the chance of swaps or misplacements.

Step 3 — Insert conductors through the front: Because the ezEX48 allows big conductors to pass through the front end, insert the conductors so the tips extend into the front of the connector. Use this pass-through feature to confirm that each wire aligns with the intended termination position before you crimp. This step is critical to ensuring proper contact and signal integrity.

Step 4 — Align with the Hi-Lo stagger bar: With the conductors seated, align them with the integrated Hi-Lo stagger load bar. This stagger arrangement guides each conductor into its correct channel, helping to prevent misalignment and ensuring a consistent, clean termination across all 8 positions.

Step 5 — Crimp and seat: Use a compatible crimp tool designed for RJ45 connectors to crimp the ezEX48 onto the prepared conductors. Apply consistent pressure to seat the contacts firmly into the cable jacket and housing. After crimping, inspect the termination to confirm that all conductors are fully seated and that there are no stray strands or mispositioned wires.

Step 6 — Test the connection: Perform a continuity and pair test with a suitable tester to verify that every conductor is correctly mapped according to the chosen standard. The pass-through verification feature helps in catching any wiring errors before finalizing the installation, saving time and reducing callbacks.

Step 7 —Label and organize: If the installation requires labeling, document the wiring scheme and the port assignments. Proper labeling improves future maintenance and makes upgrades easier for technicians who come after you.

Tips for best results: Ensure you’re using Cat6A-rated tools and testers for accuracy, handle the connector with clean hands to avoid oils or debris on contact surfaces, and keep conductors as straight as possible during insertion to prevent cross-talk or misalignment. If you encounter resistance when inserting wires, re-check the order and alignment with the Hi-Lo stagger bar before re-crimping.

Frequently asked questions

  • Q: What problem does the ezEX48 solve compared to traditional RJ45 CAT6A connectors?
    A: It brings a patented integrated Hi-Lo stagger load bar and a front-end pass-through feature, which together simplify correct wiring verification before termination, reducing miswiring and the time spent on rework in Cat6A installs.
  • Q: Can I use this connector with standard crimp tools?
    A: Yes, the ezEX48 is designed to be terminated with standard RJ45 crimp tools while leveraging its pass-through verification capabilities. Always verify compatibility with your specific tool model and follow the manufacturer’s crimping guidelines for best results.
  • Q: Is the ezEX48 suitable for high-density deployments?
    A: The compact design and pass-through verification make it well-suited for dense terminations often found in data centers and enterprise closets, where quick verification and consistent terminations matter most.
  • Q: Does this connector support only Cat6A, or can it be used with other categories?
    A: The ezEX48 is optimized for Cat6A cabling and workmanship, delivering performance aligned with Cat6A standards. For non-Cat6A installations, refer to the appropriate connector specification from Platinum Tools.
  • Q: How do I ensure a reliable termination with the ezEX48?
    A: Use the pass-through verification to confirm wiring order before crimping, follow the Hi-Lo stagger alignment during seating, and test the finished cable with a proper cable tester to verify continuity and pair integrity. A clean cut, correct conductor length, and proper seating are key to reliability.
