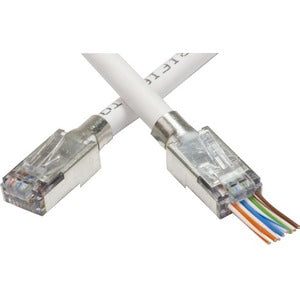

Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

Platinum ToolsSKU: 14265336

Price:
Sale price$192.92

Description

The Original EZ-RJ45 shielded CAT5e/6 connector redefines how technicians terminate twisted-pair Ethernet cables. This rugged, purpose-built connector is designed to address RF interference and grounding requirements that challenge traditional terminations. By allowing wires to be fed through the connector and exit the front for easy verification of wiring sequence, it dramatically reduces mis-wirings and installation time. The external ground feature provides a direct path from the cable shield to the equipment grounding system, delivering improved EMI suppression and signal integrity in demanding environments such as data centers, industrial facilities, and RF-rich installations. Compatible with CAT5e and CAT6 cabling, this shielded EZ-RJ45 is a practical, high-performance upgrade for installers who demand speed, reliability, and clean network performance. Whether you're upgrading an office backbone, deploying PoE-powered devices, or hardening a network against interference, this connector is engineered to deliver consistent results with Platinums Tools’ renowned EZ-RJ45 system.

  • EZ verification of wiring sequence: The innovative pass-through design lets you feed wires through the connector and visually verify their exact order before final termination. This feature minimizes guesswork, accelerates installs, and reduces the chance of costly re-terminations caused by swapped conductors. The ability to check wiring sequence at a glance is especially valuable in high-volume deployments, training environments, and shielded installations where precision matters.
  • Shielded performance with external ground: A dedicated external grounding path connects the connector’s shield to the equipment ground, providing enhanced EMI/RF shielding. This design helps suppress interference from nearby motors, radios, or switching gear, and it supports compliance with shielding requirements in RF-prone spaces. The external ground feature is a practical solution for secure cabinet grounding, sensitive electronics, and spaces where lightweight, reliable shielding is essential.
  • CAT5e & CAT6 compatibility: Built to support modern enterprise networks, this shielded EZ-RJ45 connector accommodates both CAT5e and CAT6 cables, delivering dependable performance for Gigabit Ethernet, PoE, and emerging high-speed applications. Its versatile compatibility reduces inventory complexity for installers who service mixed cable plants and ensures a single connector type can cover a broad range of network needs.
  • Tool-free efficiency and durability: The connector’s robust housing is engineered for repeated crimp cycles and long-term reliability. The design minimizes tool wear and debris buildup, helping technicians achieve consistent terminations even in tight spaces. Quick, durable terminations mean faster turnarounds on job sites and fewer callbacks due to loose or incomplete contacts.
  • Seamless integration into existing workflows: This shielded EZ-RJ45 works with standard RJ45 crimp tools and fits into Platinum Tools’ EZ-RJ45 family, enabling installers to upgrade shielded terminations without abandoning familiar hand tools. The integration supports streamlined procurement, consistent quality control, and smoother handoffs between design, installation, and maintenance teams.

Technical Details of Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

  • Connector type: Shielded EZ-RJ45 compatible with CAT5e and CAT6 cabling
  • Shielding and grounding: External ground tab provides a dedicated grounding path to equipment ground
  • Wiring verification: Wires are fed through the front, allowing immediate inspection of wiring sequence
  • Cable compatibility: Designed for standard shielded CAT5e and CAT6 cables, supporting high-density installations
  • Performance characteristics: Engineered to minimize crosstalk and EMI, improving overall network reliability in challenging environments

How to install Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

  • Prepare the cable: Begin by trimming back the outer jacket to expose the shielded twisted-pair conductors. Untwist the pairs and align them according to the chosen wiring scheme (T568A or T568B). Trim conductors to the appropriate length for a neat, protected termination, ensuring none of the wires extend beyond the connector’s front face.
  • Thread the wires through the connector: Feed the conductors through the front of the shielded EZ-RJ45 so they project out for easy inspection. Verify that each wire reaches the predicted position and that none are nicked or damaged during preparation. Confirm that the cable shield mates properly with the connector’s shielding interface.
  • Align the shield and ground: Connect the shield to the external grounding tab, guiding it to a suitable equipment ground point. This step is essential for achieving optimal EMI suppression and maintaining a low-impedance ground path in the network enclosure or cabinet. Ensure a solid, corrosion-free connection for reliable performance.
  • Crimp and secure: Use a compatible RJ45 crimp tool to crimp the shielded EZ-RJ45 onto the prepared cable. Apply steady, even pressure to ensure all contact pins seat correctly and the housing locks into place. A successful termination should show consistent contact integrity and no gaps between the shell and the cable jacket.
  • Test and inspect: After crimping, visually inspect the termination for proper wire order and secure seating. Use a network tester to confirm continuity and correct pair mapping, and check that the shield is properly grounded. If any conductor is mis-ordered or a contact is open, re-terminate with a fresh connector to avoid intermittent connectivity issues.

Frequently asked questions

  • Q: What makes Shielded EZ-RJ45 different from standard RJ45 connectors?
    A: This connector adds shielding and an external grounding tab, plus a pass-through front-entry design that enables easy verification of the wiring sequence before final termination, improving reliability in RF-prone environments.
  • Q: Can I use this connector with CAT5e and CAT6 cables?
    A: Yes. It is designed to terminate both CAT5e and CAT6 shielded cabling, supporting current and evolving network requirements while maintaining compatibility with common crimp tools.
  • Q: Do I need special tools to install this connector?
    A: A standard RJ45 crimp tool suitable for shielded connectors is typically sufficient. Ensure your tool applies uniform pressure and is compatible with the EZ-RJ45 housing to achieve a solid termination.
  • Q: Is shielding and grounding necessary for all installations?
    A: Shielding and grounding are most beneficial in environments with high RF interference, long cable runs, or sensitive electronics. In such applications, the external ground tab provides a reliable path to earth ground, reducing EMI and improving signal integrity.
  • Q: Will this connector work with PoE devices?
    A: It supports standard CAT5e and CAT6 networks, including PoE deployments. Always verify the total power requirements and ensure the connector and cable gauge meet the PoE specifications for your installation.
  • Q: How do I verify that the wiring sequence is correct?
    A: The forward-entry wires allow you to visually confirm the order before final termination. After crimping, use a tester to verify continuity and pairing, ensuring the exact T568A or T568B arrangement is maintained across all conductors.
