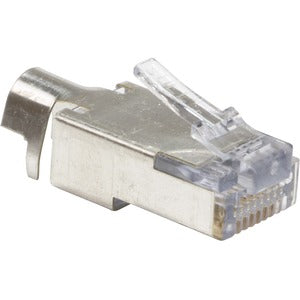

Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

Designed for network installers who demand reliability in the harshest environments, the Platinum Tools Shielded EZ-RJ45 connector combines fast, front-access verification with robust shield protection. This shielded CAT5e and CAT6 RJ45 termination solution features an external ground to preserve shielding integrity and minimize RF/EMI interference. Whether you’re building a data center, performing in-field cable runs, or tackling challenging installations near powerful electrical equipment, this connector helps you achieve clean, repeatable terminations with fewer callbacks. Its innovative EZ-RJ45 design lets you thread the wires through the connector and out the front for quick wiring verification, saving time and reducing miswiring errors. With Platinum Tools, you get a professional-grade connector engineered to deliver consistent performance, year after year.

• EZ-RJ45 front-wire verification: The original EZ-RJ45 design lets you thread conductors through the connector and view wiring sequence from the front, making it easy to confirm correct termination before crimping.
• Shielded performance for CAT5e & CAT6: Specifically built for shielded twisted-pair cables, this connector preserves shielding integrity to minimize RF noise and crosstalk in demanding environments.
• External ground for superior shielding: An integrated external ground path helps maintain a continuous shield around the pair, helping to reduce EMI/RF interference at the point of termination.
• Durable, professional design: Crafted to stand up to repeated use in the field, with a rugged housing and high‑quality contacts that promote reliable connections and long service life.
• User-friendly for quick installs: Engineered for straightforward terminations with standard tools, enabling fast, repeatable results without sacrificing performance or reliability.

Technical Details of Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

• Compatibility: Shielded CAT5e and CAT6 twisted-pair cables
• Shielding: External ground connection to maintain shield continuity and reduce EMI/RF leakage
• Termination type: EZ-RJ45 shielded connector designed for front-view wiring verification
• Materials: Durable housing with robust contacts suitable for professional installations
• Performance focus: Suitable for environments with RF challenges, grounding requirements, and demanding network deployments
• Certifications and compliance: Designed to meet industry standards for shielded Ethernet terminations

how to install Platinum Tools Shielded EZ-RJ45 for CAT5e & CAT6 with External Ground

• Prepare the cable by trimming back the jacket to expose the twisted pairs, taking care not to nick the conductors. Use a proper stripper to ensure clean, square cuts and consistent conductor lengths.
• Choose your wiring standard (T568A or T568B) and arrange the individual conductors in the correct order. The front-view verification feature helps you confirm the sequence before you terminate.
• Slide the conductors into the connector through the rear, guiding them straight into the contact slots. Ensure each wire seats fully and aligns with the intended position to prevent mis-termination.
• Crimp the connector with an appropriate RJ45 crimping tool designed for shielded terminations. Apply steady, even pressure to secure the contacts and establish a solid shield connection. If the connector includes an external ground lead, attach it to the equipment grounding path as required by your installation standards.
• Inspect the termination visually for proper conductor alignment and seating. Use a cable tester to confirm continuity, pair integrity, and correct pinout. If any conductors are out of place, rework the termination promptly to avoid network issues.
• Attach the shield ground to the relevant chassis or shielded enclosure grounding point, following your local electrical and building codes. This step is essential for maintaining shield integrity in environments with significant electromagnetic interference.
• Perform a final test on the installed link to verify performance. If the test indicates any faults, re-terminate the connector or replace the housing as needed to ensure a reliable connection.

Frequently asked questions

• What cables are supported by this shielded EZ-RJ45 connector? It is designed for shielded CAT5e and CAT6 twisted-pair cables, offering enhanced shielding and grounding for RF-prone installations.
• How does the external ground improve performance? The external ground path helps maintain shield continuity around the twisted pairs, reducing EMI/RF interference and helping preserve signal integrity, especially in environments with dense electrical activity.
• Can I use standard RJ45 crimp tools with this connector? Yes, you can use a standard RJ45 crimping tool compatible with shielded terminations. Ensure the tool is suited for shielded connectors to achieve a consistent crimp and proper shield contact.
• Is this connector suitable for field deployments? Yes. The rugged design and front-view wiring verification are specifically intended to streamline field terminations while maintaining high reliability in challenging environments.
• Do I need to modify grounding when using shielded cables? In most cases, you should connect the shield ground to the equipment or chassis grounding path per your local codes and installation standards. This ensures the shield remains effective and compliant with regulations.
• Will this connector work with both solid and stranded conductors? The EZ-RJ45 shielded design is compatible with common CAT5e/CAT6 installations, which typically include solid or stranded conductors. Always verify conductor sizing and connector compatibility for your specific cable type.
