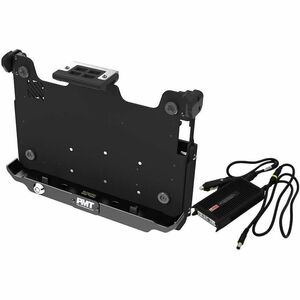

PMT Docking Station for Dell Latitude 7230 Rugged Extreme Tablet

The PMT Docking Station is a purpose-built docking solution designed to elevate productivity for Dell Latitude 7230 Rugged Extreme Tablet deployments in the most demanding environments. Engineered with a focus on compactness and durability, this ultra-slim, low-profile station minimizes protrusion in vehicle cabins, field rigs, and command posts while maximizing available operating space for the driver and crew. Crafted from rugged aluminum, it combines exceptional strength with light weight, delivering a durable platform that can withstand vibrations, impacts, dust, and temperature variations common to mobile and field service scenarios. A secure key lock enhances physical security, reducing the risk of tampering or unauthorized removal during transport or on-site assignments. The PMT Docking Station employs a no RF pass-through design to limit electromagnetic interference with surrounding vehicle electronics, helping ensure stable performance of connected peripherals, displays, and networks. Designed for reliability and long service life, this docking station seamlessly integrates with the Dell Latitude 7230 Rugged Extreme Tablet to provide a robust, secure, and easy-to-use workload hub wherever your work takes you. The combination of a slim footprint, rugged construction, and practical features makes it an ideal choice for fleet operations, field technicians, emergency responders, and mobile professionals who require a dependable docking solution without sacrificing precious vehicle space or operational efficiency.

• Ultra-slim, low-profile design minimizes protrusion into cabin or vehicle operating space, enabling quick docking and undocking even in tight setup zones while preserving driver visibility and ergonomic access to controls. The compact geometry also helps reduce snag hazards during transit and simplifies installation in crowded work environments.
• Rugged aluminum construction offers durable, lightweight performance that withstands shocks, vibrations, dust, and temperature swings commonly experienced in field service, while remaining easy to install and transport. The material choice balances stiffness and weight, so installers can handle mounting with confidence and operators can rely on sustained performance over time.
• Integrated key lock enhances security by preventing unauthorized docking or removal, helping protect the tablet, data, and connected peripherals in transit and during stops. This secure interface supports fleet compliance requirements and provides peace of mind in high-traffic or remote locations where equipment is at risk of tampering.
• No RF pass-through with Full HD support provides a clean, interference-free electrical path for connected devices and enables high-definition display output to external monitors or adapted vehicle displays. This combination fosters reliable multimedia presentations, clear telemetry views, and smooth data visualization without compromising other vehicle electronics.
• User-centric design supports easy installation, reliable docking alignment, and secure cable management, reducing wear on connectors and simplifying routine maintenance in busy fleets. Thoughtful cable routing keeps power, USB, and video cables organized and protected, contributing to longer connector life and easier diagnostics when issues arise.

Technical Details of PMT Docking Station

• Product: PMT Docking Station
• Model compatibility: Dell Latitude 7230 Rugged Extreme Tablet
• Material: Anodized aluminum for strength and corrosion resistance
• Security: Integrated key lock for added protection
• RF pass-through: None
• HD capability: Full HD support for display output with compatible displays
• Footprint: Ultra-slim design to minimize vehicle space usage
• Weight: Lightweight yet rugged construction

How to install PMT Docking Station

• Step 1: Prepare the installation area in the vehicle or field workspace. Ensure the surface is clean, dry, and free of obstructions that could interfere with docking alignment or cable routing.
• Step 2: Position the PMT Docking Station so its docking interface aligns with the Dell Latitude 7230 Rugged Extreme Tablet’s docking connector. Confirm there is ample clearance for the tablet to seat smoothly without contacting nearby equipment.
• Step 3: Gently insert the tablet into the dock until it seats fully in the connector. Engage the built-in key lock to secure the tablet, ensuring the lock engages with a firm, positive click.
• Step 4: Connect the power supply and any required data or peripheral cables to the docking station. Route cables neatly to minimize trip hazards and to protect connectors from incidental impacts during vehicle movement.
• Step 5: Power on the tablet and verify dock connections. Check that the external display, peripherals, and network connections respond as expected, and perform a quick functional test to confirm stable operation under typical vehicle conditions.

Frequently asked questions

• Q: What devices is this docking station designed to support? A: It is designed for the Dell Latitude 7230 Rugged Extreme Tablet. While some accessories may be compatible with other devices, optimal performance is guaranteed for the specified model.
• Q: Does the docking station offer RF pass-through? A: No. This model is designed with no RF pass-through to minimize interference with vehicle electronics.
• Q: Is the docking station secure against tampering? A: Yes, the integrated key lock provides physical security when the tablet is docked and during transport or on-site use.
• Q: Can I drive with the dock connected to a display? A: The PMT Docking Station supports Full HD display connectivity when used with compatible displays and appropriate cables, making it suitable for in-vehicle monitoring, training, or presentations.
• Q: How do I remove the tablet from the dock? A: Release the security lock, then carefully disengage the tablet from the docking interface and lift it straight out to avoid port stress.
• Q: What maintenance is required for long-term reliability? A: Periodically inspect the locking mechanism, connectors, and cable routing for wear or debris. Keep the aluminum surface clean and dry, and ensure cables remain securely fastened to prevent movement during operation.
