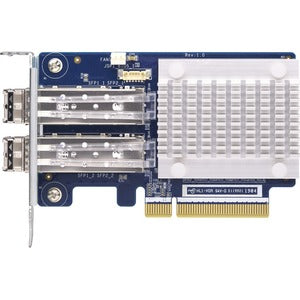

QNAP Fibre Channel Expansion Card

For businesses pursuing scalable, secure, and high-performance storage networks, the QNAP Fibre Channel Expansion Card delivers enterprise-grade SAN connectivity right into your NAS. Fibre Channel SANs are traditionally closed environments with hardware that can be costly and limit deployment flexibility. The QNAP Fibre Channel Expansion Card changes the game by offering dual-port 16Gb/32Gb Fibre Channel expansion that integrates seamlessly with your existing QNAP NAS ecosystem, delivering elevated throughput, reduced latency, and robust protection for data-in-transit. This expansion card is designed to unlock flexible storage area networks, allowing you to connect multiple servers and storage devices while maintaining centralized management and streamlined operations. With improved reliability, security, and energy efficiency, it’s the ideal solution for businesses that demand fast, reliable, and scalable SAN connectivity without compromising on efficiency or total cost of ownership.

• Dual-port Fibre Channel expansion with support for 16Gb/s and 32Gb/s per port, enabling flexible SAN configurations and high-bandwidth data transfers.
• High performance with low latency, designed to accelerate mission-critical workloads such as databases, virtualization, and large-scale backups on QNAP NAS systems.
• Enhanced security and secure data-in-transit capabilities, helping protect sensitive information as it moves across the Fibre Channel fabric.
• Energy-efficient design to minimize power consumption and operating costs while maintaining enterprise-grade reliability and performance.
• Seamless integration within the QNAP ecosystem, providing straightforward setup, centralized management, and compatibility with existing Fibre Channel fabrics and storage networks.

With the QNAP Fibre Channel Expansion Card, you gain a practical bridge between NAS storage and SAN infrastructure. It enables you to construct scalable, protected storage networks without needing to invest in an entirely new SAN framework. The card supports multiple host connections, enabling efficient LUN presentation and zoned access across servers, virtualization hosts, and storage devices. Its design emphasizes reliability and energy efficiency, ensuring that even as your storage needs grow, your network remains responsive and dependable. Whether you’re consolidating multiple workloads, optimizing disaster recovery, or expanding your SAN footprint, this expansion card is engineered to fit into a broad range of deployments while preserving data integrity and performance consistency.

For organizations migrating from traditional SAN setups to a more flexible NAS-centric approach, the QNAP Fibre Channel Expansion Card offers a compelling pathway. It allows administrators to leverage existing Fibre Channel fabrics and switch fabrics, simplifying integration with current storage arrays and server infrastructure. The card is built to operate within diverse IT environments, providing robust support for high-speed data transfer and dependable connectivity. As data volumes scale, the dual-port design ensures that bandwidth is distributed efficiently across hosts, reducing bottlenecks and enabling faster file access, backups, and disaster recovery testing. Users appreciate the simplified procurement process and consolidated management that come with a single vendor solution, alongside the assurance of QNAP’s hardware and software optimization for Fibre Channel workflows.

In terms of security, the expansion card emphasizes protection for data in transit, reducing exposure to potential threats across the SAN. This is particularly important for industries handling sensitive information, such as finance, healthcare, and government sectors, where fast access to data must be paired with strong safeguards. The energy-conscious approach means businesses can scale their storage footprint without dramatically increasing power usage, contributing to lower operational expenses and a smaller environmental footprint. Deployments ranging from small business to enterprise-level data centers can benefit from the card’s combination of speed, reliability, and ease of deployment, ensuring that NAS-based storage remains a viable backbone for modern workloads.

As part of your storage infrastructure strategy, the QNAP Fibre Channel Expansion Card enables you to centralize management of SAN resources, reduce data movement times, and improve overall data availability. By offering a straightforward, cost-effective upgrade path, it helps organizations achieve better utilization of existing investments and a smoother transition toward more flexible, scalable storage architectures. The card is designed to be compatible with a wide range of QNAP NAS models and supports common FC fabrics, making it a practical addition for IT environments that require dependable, high-speed storage access with simplified administration. From database hosting to virtual desktop infrastructure and large-scale backups, this expansion card is staged to deliver tangible improvements in performance, reliability, and efficiency across the board.

Technical Details of QNAP Fibre Channel Expansion Card

• Interface: Dual-port Fibre Channel expansion card supporting 16Gb/s and 32Gb/s per port for scalable SAN performance.
• Compatibility: Engineered for QNAP NAS devices with PCIe expansion capabilities and tested to integrate with common Fibre Channel fabrics.
• Power and efficiency: Optimized design to deliver high throughput while maintaining energy efficiency for reduced operating costs.
• Security: Built-in protections for data-in-transit within Fibre Channel environments to safeguard SAN communications.
• Reliability: Designed for dependable operation with robust signal integrity and compatibility with standard FC zoning and LUN provisioning practices.

how to install QNAP Fibre Channel Expansion Card

Installing the QNAP Fibre Channel Expansion Card is a straightforward process that can be completed with basic tools and minimal downtime. Before you begin, ensure you have a compatible QNAP NAS model with an available PCIe expansion slot and a Fibre Channel fabric ready for integration. Prepare your cabling and confirm that your SAN switch or fabric is configured to support the dual-port FC connections. Once you’re ready, follow these steps to install the card:

• Power down the QNAP NAS and disconnect all power and interface cables to prevent electrical damage during installation.
• Open the chassis access panel to expose the PCIe expansion slots.
• Locate an available PCIe slot that aligns with the card’s interface and firmly seat the Fibre Channel expansion card into the slot, ensuring a secure connection.
• Secure the card with the chassis screw and reassemble the NAS enclosure, taking care to avoid pinched cables or obstructed fans.
• Reconnect power and FC cabling to the expansion ports, then power on the NAS. Enter the NAS management interface to scan for the new hardware and configure FC zoning, LUN presentation, and fabric settings as needed.

After installation, you may need to perform further configuration within your SAN fabric and NAS management tools to complete zoning, map LUNs, and establish appropriate access controls. It is recommended to test connectivity with representative workloads to validate throughput, latency, and reliability before moving into production. If your environment includes virtualization or clustered services, take care to align FC zones and multipathing policies with your overall storage strategy to maximize performance and resilience. Regular firmware updates for both the NAS and the expansion card can help maintain compatibility with evolving SAN standards and improvements in efficiency and security.

Frequently asked questions

• Q: What is the primary purpose of the QNAP Fibre Channel Expansion Card? A: It adds dual Fibre Channel ports to a compatible QNAP NAS, enabling high-speed SAN connectivity and flexible storage networking within the NAS ecosystem.
• Q: What bandwidth does the card support? A: The card supports dual ports with 16Gb/s and 32Gb/s capability per port, providing scalable bandwidth for demanding workloads.
• Q: Is this expansion card compatible with all QNAP NAS models? A: Compatibility depends on the NAS model and available PCIe slots; refer to the official product page or compatibility list to confirm support for your specific NAS.
• Q: Do I need special software to use Fibre Channel on my QNAP NAS? A: Basic installation and SAN configuration typically require the NAS management interface, with optional multipath and zoning settings to optimize performance and reliability.
• Q: Can this card be used in a virtualized environment? A: Yes, Fibre Channel connectivity can be leveraged to connect virtual machines or virtualized workloads to shared storage, provided your environment’s fabric and host configurations align with FC requirements.
