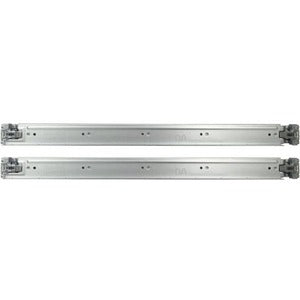

Qnap Rail Kit for ES NAS Series – ES1640DC & EJ1600 (0.5 Year Warranty)

The QNAP Rail Kit for ES NAS Series is the essential mounting solution designed to secure high-performance QNAP storage appliances in standard 19-inch racks. Built to support ES1640DC and EJ1600 models, this rail kit delivers solid, reliable support, effortless access, and streamlined maintenance for data centers, server rooms, and enterprise environments. Engineered for durability and ease of use, the kit minimizes downtime during deployment and routine service, while maximizing airflow and cable management for optimal NAS performance. Whether you’re expanding your infrastructure, consolidating rack space, or refreshing an aging deployment, this rail kit provides a stable foundation that helps safeguard critical data and keep workloads running smoothly.

• Compatibility and scope: Specifically designed for QNAP ES NAS Series, including ES1640DC and EJ1600, with standard 19-inch rack compatibility. This rail kit ensures a precise fit, reducing alignment issues and enabling rapid deployment in multi-rack environments. It supports the solid rails and mounting hardware typical of enterprise NAS deployments, making it a reliable choice for professional installations and scalable data center growth.
• Durable construction and finish: Built from robust steel with a corrosion-resistant powder-coated finish to withstand the rigors of data center operation. The rails resist wear from frequent access, temperature variations, and cleaning cycles, helping to maintain smooth operation and long-term durability in busy rack bays and elevated temperature zones.
• Adjustable, tool-friendly installation: Features adjustable rails that accommodate different chassis depths and provide flexible installation options. The kit includes the necessary mounting hardware and guides to simplify alignment, reduce installation time, and minimize the risk of misalignment during rack mounting, even in tight spaces or ceiling-mounted rack configurations.
• Secure operation and maintenance ease: Engineered to enable safe, quick access to the ES NAS array, with a rail system that supports smooth extension and stable retraction. This design assists technicians performing maintenance, firmware updates, or drive replacements, while keeping drives protected from accidental pulls or shifts during service cycles.
• Warranty and support: The product is offered with a 0.5-year warranty, providing reassurance and post-purchase support from QNAP-authorized channels. This warranty coverage complements standard service agreements and helps organizations maintain uptime and reliability for critical NAS workloads.

Technical Details of Qnap Rail Kit for ES NAS Series

• Model: Rail Kit for ES NAS Series
• Compatibility: QNAP ES NAS Series including ES1640DC and EJ1600
• Material: Steel with powder-coated finish
• Finish: Powder-coated for corrosion resistance
• Rack Compatibility: Standard 19-inch rack
• Included hardware: Rails, mounting screws, and alignment guides
• Warranty: 0.5-year limited warranty

How to Install Qnap Rail Kit for ES NAS Series

• Prepare the rack: Verify your 19-inch rack is clean, level, and has adequate clearance for the ES NAS unit and surrounding cabling. Assess depth and airflow requirements to ensure there is room for extended rails and cooling paths before starting the installation.
• Attach rails to rack: Align the rail brackets with the vertical rack rails and secure them with the supplied screws and anchors. Confirm that both sides are level and parallel to prevent binding when sliding the NAS into place, which helps avoid stress on chassis rails during operation.
• Mount the ES NAS chassis: With a second set of hands if needed, position the ES NAS unit so its chassis mounting holes align with the rail brackets. Use the included fasteners to fasten the unit to the rails, following the manufacturer’s depth and alignment guidance to ensure stable mounting.
• Adjust and test: Extend the rails to confirm smooth movement and stable support under load. Check for any binding or misalignment, and verify that there is sufficient clearance for cables and fans to operate without interference during use.
• Final checks and commissioning: Re-torque screws as needed, verify cable routing, and ensure the NAS powers on correctly. Confirm drive detection and basic network connectivity after installation, then perform a brief uptime test to validate stability and performance.

Frequently Asked Questions

• Q: Is this rail kit compatible with all QNAP ES NAS models? A: It is designed for the ES NAS Series, specifically including ES1640DC and EJ1600. For compatibility with other models, consult QNAP or your distributor’s documentation to confirm fit and mounting requirements.
• Q: Does the kit include all mounting hardware? A: Yes, the kit comes with rails, screws, and alignment guides needed to complete installation in a standard 19-inch rack.
• Q: What is the warranty period? A: The rail kit carries a 0.5-year warranty, providing coverage through authorized channels as part of your purchase terms.
• Q: Can the rails support heavy drive loads or hot-swapping? A: The rails are designed to securely support QNAP ES NAS units and facilitate maintenance access. Always follow the manufacturer’s load specifications and installation guidelines for safe operation during hot-swapping or heavy workloads.
• Q: Is professional installation recommended? A: For rack deployments in data centers or enterprise environments, professional installation is recommended to ensure proper alignment, electrical safety, and optimal airflow management.
