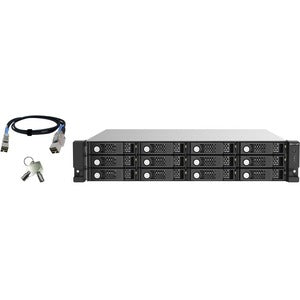

QNAP TL-R1220SEP-RP Drive Enclosure: SAS 12Gb/s Expansion, Mini-SAS HD, 2U Rack-Mountable

The QNAP TL-R1220SEP-RP is an enterprise-grade SAS 12Gb/s storage expansion enclosure designed to scale your QTS or QuTS hero NAS with unmatched reliability and performance. Built to meet the demands of data-intensive workloads, this 2U rack-mountable enclosure brings a robust, scalable expansion path to growing storage environments, delivering high-throughput data pathways and resilient connectivity. Whether you’re virtualizing, editing high-resolution media, running large databases, or performing frequent backups, the TL-R1220SEP-RP helps you maximize NAS capacity without sacrificing speed, uptime, or manageability. Its design centers on enterprise-grade build quality, multipath routing for fault tolerance, and easy daisy-chaining to create expansive storage arrays that can evolve with your organization’s needs.

• Enterprise-class SAS 12Gb/s expansion: Designed to accelerate I/O-heavy workflows, it delivers fast data access for virtualization, databases, media workflows, and large backups while maintaining steady performance under load.
• Multipath routing for high availability: Built to provide redundant data paths, the enclosure minimizes the risk of downtime during sustained workloads, ensuring uninterrupted access to critical data.
• Daisy-chain scalability up to sixteen enclosures: Deploy a vast, scalable storage fabric by linking multiple TL-R1220SEP-RP units to a single NAS, enabling expansive growth without sacrificing performance or manageability.
• 2U rack-mountable chassis for data-center efficiency: A compact, dense form factor that fits standard server racks, optimized for organized cabling, cooling, and maintenance in busy data environments.
• Flexible drive support with SATA/600 compatibility: Supports a range of drive types to match your throughput, capacity, and budget requirements while maintaining compatibility with existing SATA-based storage ecosystems.

Technical Details of QNAP TL-R1220SEP-RP

• Storage interface: SAS 12Gb/s expansion capabilities that enable high-speed data transfer to and from the connected NAS and storage devices.
• Host interface: Mini-SAS HD (SFF-8643) for a reliable, high-bandwidth connection to the NAS expansion port, designed to minimize latency and maximize throughput.
• Drive compatibility: Supports SATA/600 drives in addition to SAS configurations, offering flexible options to balance performance and cost.
• Chassis and form factor: 2U rack-mountable enclosure engineered for data-center deployment, with a sturdy build to handle continuous operation in demanding environments.
• Scalability: Up to sixteen expansion enclosures can be daisy-chained, creating a scalable storage backbone that grows with your NAS capacity requirements.
• Operating ecosystem compatibility: Designed to work seamlessly with QNAP NAS operating systems, including QTS and QuTS hero, to simplify management and integration.

How to Install QNAP TL-R1220SEP-RP

• Prepare your rack space: Identify a suitable 2U slot in a standard equipment rack, ensuring adequate ventilation, clearance for cabling, and stable mounting points.
• Mount the enclosure: Use the provided rails or compatible hardware to securely install the TL-R1220SEP-RP into the rack, ensuring it is level and firmly fastened.
• Install drives: If you are adding drives, insert them into the available bays according to the enclosure's drive tray guidelines, making sure each drive is seated and locked in place as required.
• Connect the host interface: Run high-quality Mini-SAS HD cables from the NAS expansion port to the TL-R1220SEP-RP’s Mini-SAS HD host connectors, ensuring clean, secure connections with proper cable management.
• Power and configure: Connect the power supply, power on the enclosure, and access your NAS management interface (QTS or QuTS hero). Detect the expansion enclosure and proceed to configure the new storage paths, multipath routing if desired, and the daisy-chain link to other enclosures according to your deployment plan.

Frequently asked questions

• What NAS operating systems does the TL-R1220SEP-RP support? It is designed to work with QNAP NAS devices running QTS and QuTS hero, acting as a dedicated expansion enclosure that integrates into the NAS storage pool and management framework.
• How many expansion enclosures can be daisy-chained? Up to sixteen TL-R1220SEP-RP units can be daisy-chained in a single expansion configuration, enabling large-scale storage growth while maintaining centralized management through the NAS.
• What type of interface connects to the NAS? The enclosure uses a Mini-SAS HD host interface (SFF-8643), delivering a high-bandwidth, low-latency link for reliable expansion performance.
• Is SATA drive support available? Yes, the enclosure supports SATA/600 drives in addition to SAS configurations, providing flexible drive choices to balance performance, capacity, and cost.
• Is this enclosure suitable for data-center deployments? Yes. The TL-R1220SEP-RP is a 2U rack-mountable, enterprise-grade expansion enclosure designed for scalable, dense storage in data centers, labs, and enterprise environments. For exact installation and maintenance guidelines, refer to the user manual and NAS documentation.
