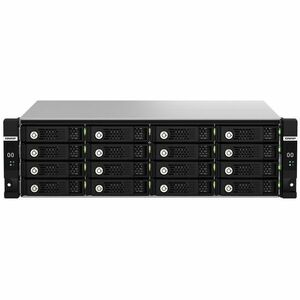

TL-R1620SDC: Dual-Controller 3U 16-Bay SAS/SATA Storage Enclosure with Mini-SAS HD Interface

The TL-R1620SDC is a high-performance storage expansion enclosure designed to scale enterprise QNAP NAS deployments. Built for reliability and speed, it pairs dual-controller redundancy with a dense 16-bay chassis to deliver ultimate data availability and expanded capacity for demanding workloads. With a compact 3U, short-depth design, this enclosure fits into crowded data centers and server rooms while still providing enterprise-grade features essential for always-on operations. If your organization relies on large-scale data growth, the TL-R1620SDC is engineered to boost storage throughput, improve fault tolerance, and simplify management for mission-critical applications.

From media collaboration to virtualization, backups to archival storage, the TL-R1620SDC is purpose-built to handle the most demanding environments. It supports both SAS 12Gb/s and SATA 6Gb/s drives through a robust Mini-SAS HD host interface, delivering a flexible path to scale performance and capacity without compromising data integrity. The dual-controller architecture ensures seamless failover and load balancing, so your workloads stay responsive even in the event of a controller or path issue. The result is a storage expansion solution that grows with your business, not one that slows you down as demands increase.

Designed for enterprise deployment, this enclosure features an OLED indicator for proactive health monitoring and rapid diagnostics. It’s built to integrate with dual-controller QNAP NAS systems, offering a tightly coupled expansion path that’s optimized for data center rack deployment. Its 16 drive bays provide ample room for future growth, while the hot-swappable design minimizes downtime during maintenance or upgrades. Administrators will appreciate the straightforward installation, intuitive management, and the peace of mind that comes from a robust, enterprise-grade expansion unit that’s purpose-built for QNAP ecosystems.

Beyond capacity, the TL-R1620SDC emphasizes efficiency and reliability. The compact 3U footprint reduces rack space consumption, allowing administrators to maximize cabinet density without sacrificing performance. The design prioritizes airflow and cooling efficiency, ensuring sustained operation under heavy I/O loads. This enclosure is not just about storage—it's about delivering a dependable backbone for critical applications, with the features and resilience that enterprise environments demand.

• Dual-controller redundancy for high availability — Dual controllers provide failover and load balancing to maintain performance and uptime even if one path encounters issues, which is essential for business-critical workloads.
• 12Gb/s SAS and SATA 6Gb/s support — Flexible drive compatibility across SAS and SATA drives enables scalable capacity and performance while protecting existing investments in storage media.
• 16 hot-swappable drive bays in a 3U chassis — A dense, enterprise-friendly configuration that makes upgrades, replacements, and maintenance quick and non-disruptive.
• Mini-SAS HD host interface — High-bandwidth, scalable connectivity designed for modern data paths and seamless integration with QNAP dual-controller NAS systems.
• OLED status indicator for quick health checks — Real-time monitoring at a glance helps IT teams identify issues early and reduce mean time to repair (MTTR).

Technical Details of TL-R1620SDC

• Drive Bays: 16 x hot-swappable bays (SAS/SATA compatible) in a 3U enclosure.
• Controllers: Dual-controller architecture for redundancy and load balancing to maximize uptime and performance.
• Host Interface: Mini-SAS HD interface (SFF-8643) for fast, scalable data paths to the NAS system.
• Data Interfaces: SAS 12Gb/s and SATA 6Gb/s support to accommodate a range of drive types and capacities.
• Form Factor: 3U rack-mountable chassis designed for space-constrained data centers and server rooms.
• Monitoring: OLED indicator for real-time health and status visibility, enabling proactive maintenance.
• intended Use: Enterprise storage expansion for dual-controller QNAP NAS environments, ideal for data growth, virtualization, backups, and large-scale workloads.
• Rack Compatibility: Standard 19-inch rack footprint suitable for most data center racks.

How to Install TL-R1620SDC

• Plan the rack placement in advance, ensuring adequate clearance for cooling and cabling. Position the TL-R1620SDC in a well-ventilated area of the rack and align it with the chassis rails for secure mounting.
• Power down associated QNAP NAS devices and power supplies before connecting expansion cables to avoid data path interruptions. Use high-quality Mini-SAS HD cables rated for 12Gb/s deployments to ensure optimal signal integrity.
• Mount the enclosure in the rack and secure it with appropriate rack hardware. Connect the host interface cables from the TL-R1620SDC to the corresponding ports on the dual-controller QNAP NAS system, ensuring a firm, locked connection.
• Install the 16 drives into the hot-swap bays. Slide each drive tray fully into its bay until it seats with a click, ensuring drives are firmly connected to the backplane.
• Power up the enclosure and the NAS system. Use the OLED indicator as a quick diagnostic tool to confirm power and health status. Access the QNAP management interface to initialize the expansion, configure storage pools, and create volumes as required by your deployment.
• Configure RAID, hot spare settings, and expansion options within the QNAP NAS management utility. Confirm that the new capacity is recognized and aligned with existing storage pools and data protection policies.
• Perform a consistency check and monitor performance. Validate that read/write throughput meets expectations and that redundancy features are functioning as intended. Schedule regular health checks and firmware updates to maintain peak performance.

Frequently asked questions

• What is the TL-R1620SDC best for? It is an enterprise-grade storage expansion enclosure designed to scale the capacity and performance of dual-controller QNAP NAS systems, suitable for data centers, virtualization, backups, and large-scale workloads.
• How many drives does it support? It supports 16 hot-swappable drives in a single 3U chassis, providing a dense storage pool for growing data requirements.
• Does it provide redundancy? Yes. The enclosure uses dual controllers to offer failover and load balancing, improving reliability and uptime for critical applications.
• What kind of interface does it use? It employs a Mini-SAS HD host interface (SFF-8643) to connect with compatible QNAP NAS systems and deliver high-throughput data paths.
• Is it easy to install in a rack? Absolutely. The 3U form factor is designed for standard 19-inch racks, and it includes a straightforward drive installation process and management via OLED status indicators.
