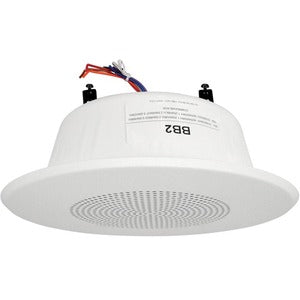

Quam BB2 Indoor Surface Mount Speaker — 20 W RMS, White

The BB2 from Quam is a complete beam-mount loudspeaker system engineered for reliable, high-quality sound in indoor environments. Built around an 8" dual-cone driver (8C10PAX) with a 10 oz magnet, this white, surface-mount unit delivers clear midrange, solid bass punch, and intelligible highs suitable for a range of commercial spaces. The system is designed for easy installation in ceilings or walls, combining a round steel backbox, a BR8WS round, studded baffle, and two beam clamps that secure the unit firmly in place. With a built-in 70V/25V transformer (TBLU) offering up to 5W taps, the BB2 supports scalable distributed audio configurations while preserving audio fidelity across multiple speakers. At 20 W RMS, this speaker provides ample headroom for background music, announcements, and foreground sound in mid-sized rooms, all while maintaining a discreet, professional white finish that blends into most interiors. Whether you’re equipping retail spaces, restaurants, offices, schools, or hospitality venues, the BB2 is designed to deliver consistent, even coverage and dependable performance day after day.

• The BB2 is a complete beam-mount loudspeaker system featuring an 8" dual-cone driver (8C10PAX) with a 10 oz magnet for precise, clear sound across a wide listening area.
• With a 20 W RMS rating, it provides ample power for mid-sized rooms, ensuring clean speech intelligibility and engaging background music without audible distortion.
• The integrated TBLU transformer offers 5W-25/70V taps, enabling flexible distributed installations and scalable loudspeaker networks from a single amplifier.
• The mounting package includes a BR8WS round, studded baffle and two beam clamps attached to a round steel backbox, delivering secure, corrosion-resistant mounting for long-term reliability.
• The elegant white finish and compact form make the BB2 suitable for ceilings or walls in commercial spaces, delivering professional aesthetics with robust performance.

Technical Details of Quam BB2 Indoor Surface Mount Speaker

• Speaker type: 8C10PAX dual-cone 8" driver
• Magnet: 10 oz
• Power rating: 20 W RMS
• Transformer: TBLU 5W-25/70V
• Mounting hardware: BR8WS round, studded baffle; two beam clamps; round steel backbox
• Finish: White
• Mounting type: Indoor surface-mount/beaming with backbox and clamps for secure installation

How to install Quam BB2 Indoor Surface Mount Speaker

• Plan your layout: Choose installation locations that provide even audio coverage and account for room acoustics, furniture, and potential obstructions. Verify that the chosen ceiling or wall surface can support the backbox and mounting hardware.
• Power and wiring prep: Turn off the amplifier and power sources. Run appropriate speaker cable to each BB2 location, ensuring compatibility with 70V/25V distributed systems and the transformer taps you intend to use.
• Cut and open: If mounting in ceilings, carefully cut the opening sized for the backbox and BR8WS baffle. For wall mounting, prepare a compatible recessed or surface mount opening according to the backbox dimensions.
• Connect wiring: Terminate the speaker wires to the BB2’s input terminals, adhering to correct polarity. If using 70V/25V distribution, select the correct taps (5W per speaker or other configured values) on the TBLU transformer to achieve the desired overall system impedance and SPL handling.
• Mounting assembly: Insert the round steel backbox into the ceiling or wall opening and secure it with the included beam clamps. Attach the BR8WS baffle to the backbox, then align and secure the two beam clamps to lock the assembly in place.
• Final assembly and testing: Attach the 8" dual-cone driver assembly to the baffle as required, ensuring all fasteners are tight and there are no loose components. Restore power, test for balanced sound across the listening area, and adjust amplifier levels or transformer taps as needed for optimal coverage.

Frequently asked questions

• Q: What is the wattage rating of the BB2?
  A: The BB2 is rated for 20 W RMS, providing clear, reliable performance for mid-sized indoor spaces.
• Q: Is the BB2 suitable for outdoor use?
  A: No. The BB2 is designed for indoor surface-mount installations and should be protected from moisture and the elements.
• Q: What type of transformer does it use?
  A: The BB2 uses a TBLU transformer with 5W-25/70V taps, enabling flexible distributed audio configurations.
• Q: What mounting hardware is included?
  A: The package includes a BR8WS round, studded baffle, two beam clamps, and a round steel backbox for secure installation.
• Q: What finish is available?
  A: The BB2 comes in a white finish, designed to blend with most ceiling and wall interiors for a discreet look.
• Q: Can multiple BB2 units be used in a single system?
  A: Yes. The 70V/25V transformer, along with the beam-mount design, supports scalable multi-speaker configurations in distributed audio setups.
