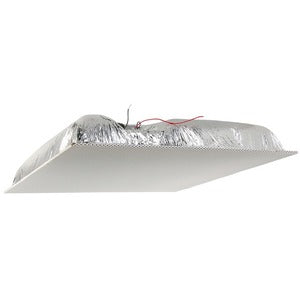

Quam SYSTEM 19 2-Way Indoor Ceiling Speaker – 30 W RMS

The Quam SYSTEM 19 is a complete, UL Listed 2-way ceiling speaker designed for tile-replacement installations in commercial environments. Engineered for shallow depth and easy integration, it pairs a 6-1/2" outer-diameter woofer with a 1" tweeter and a 20W-70V rotary transformer (including an 8 Ohm tap) to deliver clear, balanced sound in classrooms, retail spaces, offices, hospitality venues, and other spaces where performance and aesthetics matter. Its molded fiber enclosure and steel baffle combine durability with a low-profile footprint, making it a dependable choice for discreet, high-quality audio reinforcement.

• 2-way acoustic design with a 6-1/2" outer-diameter woofer and a 1" tweeter delivers crisp highs, solid midrange, and satisfying bass response for music and intelligible voice reproduction.
• 30 W RMS total power handling complemented by a 20W-70V rotary transformer with an 8 Ohm tap, offering flexible deployment across 70V distributed audio systems or direct low-impedance connections for varied room sizes and configurations.
• Tile-replacement, shallow-depth construction built to fit standard 2' x 2' ceiling tiles, enabling a seamless integration that preserves aesthetic continuity while delivering robust sound in suspended ceilings.
• Durable build featuring a molded fiber enclosure (1412 CID) and a steel baffle, designed to withstand frequent use in busy commercial settings while minimizing distortion and maximizing reliability.
• Versatile use cases for background music, paging, announcements, and ambient sound in retail, offices, schools, hotels, and hospitality venues, with easy installation and scalable performance for multi-speaker configurations.

Technical Details of Quam SYSTEM 19

• Speaker type: 2-way ceiling-mounted loudspeaker for indoor use
• Woofer: 6-1/2" outer diameter (LF) for extended bass and room-filling low end
• Tweeter: 1" high-frequency driver for clear, intelligible highs
• Power handling: 30 W RMS total
• Transformers: 20W-70V rotary selector with an 8 Ohm tap for flexible connection options
• Enclosure: Molded fiber enclosure with 1412 CID for durable performance
• Baffle: Steel construction to reinforce rigidity and minimize distortion
• Mounting/design: 2' x 2' tile replacement footprint with shallow depth for easy ceiling integration
• Safety/compliance: UL Listed for reliable use in commercial environments

How to install Quam SYSTEM 19

Installing the Quam SYSTEM 19 in a drop-ceiling environment is designed to be straightforward and minimally disruptive. Follow these general steps to achieve a secure, optimized installation that preserves ceiling aesthetics while delivering dependable audio performance.

• Plan the installation by assessing the ceiling layout, electrical wiring, and the intended acoustic coverage. Confirm that the 2' x 2' tile replacement format is appropriate for the space and that the amplifier or mixer can drive the 70V/8 Ohm configuration as required.
• Power down the audio system and prepare the ceiling tile opening. Remove the existing tile and verify structural support in the ceiling cavity to ensure a stable mount for the enclosure.
• Connect the speaker’s transformer leads to the building’s audio wiring according to the chosen configuration. For 70V operation, use the appropriate 70V tap on the rotary transformer; for direct 8 Ohm use, connect to the 8 Ohm tap as needed. Ensure secure, code-compliant wiring practices.
• Insert the molded fiber enclosure into the opening, align the tile frame, and secure the speaker with the included mounting hardware to maintain a flush, clean appearance with the surrounding ceiling.
• Reinstall the ceiling tile, then power on the system and perform a sound check. Adjust the transformer tap settings and volume to achieve balanced coverage, clear intelligibility, and comfortable listening levels throughout the space.

Frequently asked questions

• Q: Is the Quam SYSTEM 19 UL Listed? A: Yes. The SYSTEM 19 is UL Listed, ensuring compliance with safety standards for commercial installations.
• Q: What mounting type does it use? A: It is a tile-replacement ceiling speaker designed to fit standard 2' x 2' ceiling tiles with a shallow depth for easy integration.
• Q: What drivers are included? A: The system uses a 6-1/2" (approximately) woofer and a 1" tweeter to deliver a balanced two-way sound profile.
• Q: Can it be used in 70V distributed audio systems? A: Yes. The unit includes a 20W-70V rotary transformer with an 8 Ohm tap to accommodate 70V installations or direct low-impedance wiring as needed.
• Q: What are typical use scenarios? A: It’s well-suited for background music, paging, announcements, and ambient audio in classrooms, retail stores, offices, restaurants, and hospitality venues, with scalable options for larger spaces.
