Rack Mount Bracket for LCD Monitor

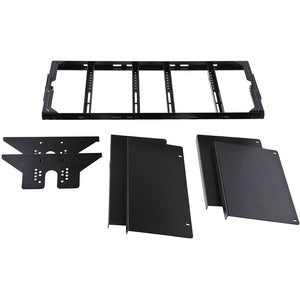

The UMM-LCDUB-RM rack mount bracket is a versatile, high-strength mounting solution designed to secure 15-inch, 17-inch, and 19-inch UML LCD monitors inside a standard 19-inch VESA rack cabinet. Built for reliability in data centers, control rooms, broadcast suites, IT closets, and harsh industrial environments, this bracket offers precise alignment, straightforward installation, and long-term durability. It is engineered to simplify hardware layout, enable quick servicing, and maintain clean cable management, all while maximizing rack space efficiency and minimizing footprint. Whether you’re outfitting a compact server room or a multi‑rack control center, the UMM-LCDUB-RM provides a scalable mounting platform that adapts to a range of monitor configurations and evolving operational needs, delivering dependable performance day after day.

• Universal compatibility: Supports dual 8.4-in. and single 8.4- to 19-in. LCD monitors within a standard VESA rack cabinet, enabling flexible, multi-monitor deployments in tight spaces without compromising accessibility or serviceability. This design ensures seamless integration with UML LCD displays across common sizes, helping IT teams standardize mounting hardware and simplify inventory management.
• Rugged, rack-ready construction: Built from premium cold‑rolled steel with a robust, corrosion‑resistant finish to withstand the rigors of 24/7 operation, vibration from nearby equipment, and the temperature variations typical of data centers and industrial locales. The durable chassis minimizes flex and maintains precise monitor alignment even after years of use.
• Efficient adjustability: Engineered for precise orientation, including adjustable tilt and secure side-to-side positioning, so you can dial in the ideal viewing angle for operators at different seating heights and workstations. The design supports quick realignment during equipment changes or routine maintenance, reducing downtime and improving operator ergonomics.
• Easy installation and maintenance: Streamlined mounting hardware and modular rail integration simplify installation in existing racks and new builds. The bracket allows rapid hot-swapping of displays and simplified access to connectors, enabling technicians to connect, test, and reposition cables without disassembling the rack setup.
• Cable management and security: Integrated cable channels and dedicated mounting points keep cables organized, protected from strain, and shielded from accidental unplugging. Clear routing paths reduce clutter, improve airflow, and enhance overall system reliability in tightly packed racks.

Technical Details of Rack mount bracket for LCD monitor

• Product name: Rack mount bracket for LCD monitor
• Compatibility: Designed for 15", 17", and 19" UML LCD monitors; supports dual 8.4-in. and single 8.4- to 19-in. configurations within a standard VESA rack cabinet
• VESA patterns: Supports common VESA hole patterns (75x75 mm and 100x100 mm) for broad monitor compatibility
• Rack compatibility: Fits standard 19" equipment racks with secure mounting rails and standard rack screws
• Material and finish: Heavy-duty steel construction with durable powder-coated finish (color options may vary by batch)
• Finish: Black (typical), with a rugged, non-glare surface suitable for high-traffic environments
• Weight and load: Engineered to support typical monitor weights within 15"–19" class displays; exact load ratings may vary by configuration—consult the spec sheet for precise figures
• Adjustability: Includes adjustable tilt and lateral positioning to fine-tune monitor alignment in multi-monitor arrays
• Mounting hardware: Supplied with industry-standard mounting screws and hardware compatible with common rack rails
• Cable management: Integrated channels and tie-down points to organize and secure cables, reducing wear and accidental disconnections

How to install Rack mount bracket for LCD monitor

Begin by verifying your rack cabinet’s compatibility with standard 19" mounting rails and confirming the VESA patterns on your UML LCD monitors. Position the UMM-LCDUB-RM on the rack rails at the desired height and secure the bracket using the included mounting hardware, ensuring the back of the monitors will face accessible ports. Attach the monitors to the bracket via their VESA mounting holes, taking care to align screws with the correct mounting holes and torque them to the manufacturer’s recommended specification. Route cables through the built‑in channels, connect power and data cables, and then tighten any cable clips or ties to prevent movement. After installation, test each monitor for stability, verify that all connectors are secure, and adjust tilt or side-to-side position as needed to achieve optimal viewing angles for your operator stations. Finally, perform a quick power-on check and confirm that airflow around the rack remains unobstructed for cooling efficiency. Regularly inspect mounting screws and cable connections as part of routine rack maintenance to ensure ongoing reliability.

Frequently asked questions

• Q: What monitor sizes are supported by the UMM-LCDUB-RM rack mount bracket?
• A: It is designed to support 15", 17", and 19" UML LCD monitors, including configurations with dual 8.4" displays and single 8.4" to 19" displays within a standard VESA rack cabinet.
• Q: Which rack patterns and rails does it fit?
• A: The bracket is compatible with standard 19" racks and standard VESA mounting patterns (75x75 mm and 100x100 mm) for broad monitor compatibility and easy integration into existing systems.
• Q: How do I ensure long-term reliability in a data-center environment?
• A: Use the provided mounting hardware, secure all cables with integrated channels, and perform periodic checks of screws and connections to maintain alignment and prevent wear from vibration or movement.
