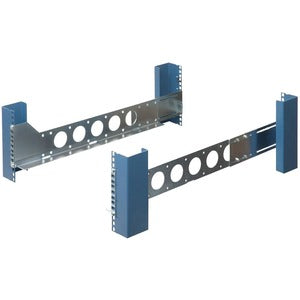

Rack Solutions 3U Universal Rail 20in Depth

Rack SolutionsSKU: 4614575

Price:
Sale price$193.27

Description

Introducing the Rack Solutions 3U Universal Rail for 20-inch depth racks — a versatile mounting solution engineered to simplify server room deployments and everyday rack maintenance. This 3U rail system is purpose-built for reliability in data centers, IT closets, and workspace labs, delivering secure support for a wide range of equipment while minimizing installation time. The rails are designed to handle equipment up to 200 lbs (91 kg), making them suitable for many 3U servers, switches, storage devices, and patch panels that populate modern racks. A key strength is its universal hole compatibility: square, round, and threaded holes are all supported, enabling seamless integration with virtually any standard rack configuration you encounter. The adjustable depth range from 10" to 24" (254 mm to 609.6 mm) provides remarkable flexibility, so you can accommodate differing enclosure depths without buying multiple rail kits. Built for durability, these rails resist bending and wear, supporting repeated insertions and removals over the life of your rack infrastructure. Whether you’re upgrading an older cabinet or outfitting a new data center, this rail system helps you standardize mounting across heterogeneous equipment and rack models, reducing both procurement complexity and installation friction. The result is a cleaner, more maintainable rack layout with improved airflow, easier maintenance access, and confident support for critical equipment in space-constrained environments.

  • Universal compatibility: Works with square, round, and threaded rack holes to fit a broad range of rack types and brands, simplifying inventory and future upgrades.
  • High load capacity: Supports equipment up to 200 lbs (91 kg), ensuring stable mounting for most 3U devices without sag or wobble.
  • Adjustable depth for flexibility: Install in racks with depths from 10" to 24" (254–609.6 mm), enabling quick adaptations to mixed equipment from multiple vendors.
  • 3U-focused design: Tailored to 3U equipment, providing secure alignment, easy access to connectors, and balanced weight distribution within the cabinet.
  • Effortless installation and maintenance: Adjustable rails and straightforward mounting hardware streamline setup, service, and swaps in busy IT environments.

  • Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to Install Rack Solutions 3U Universal Rail 20in Depth

  • Prepare the rack: Verify that your cabinet supports 3U equipment and that the rack depth falls within the 10"–24" range. Confirm hole type compatibility (square, round, or threaded) before starting.
  • Locate mounting positions: Identify vertical posts or rails where the universal rails will attach. Align the rails with the posts at the correct height for your 3U device, ensuring level placement to avoid tilt or misalignment.
  • Attach the rails to the cabinet: Secure the rail sections to the front and rear rack posts using the provided hardware. Tighten screws firmly but avoid over-tightening, which could strip threads or warp the mounting.
  • Adjust depth and lock: Extend or slide the rails to the desired installation depth within the 10"–24" range. Lock the rails in place using the built-in adjustment mechanism or thumbscrews to prevent movement during deployment.
  • Mount the equipment: Slide the 3U device onto the rails, align connectors and chassis rails, then secure with the supplied fasteners. Verify that the device sits level, plugs are accessible, and there is ample clearance for airflow and cable management.
  • Final checks: Confirm smooth rail operation by sliding the equipment in and out once or twice. Re-tighten any hardware if necessary and perform a quick load test to ensure stability during normal operation.

Frequently asked questions

  • Q: What equipment height is this rail designed for? A: It is a 3U rail designed to mount equipment that occupies 3 rack units of vertical space in a standard 19-inch rack.
  • Q: What is the weight limit for mounted equipment? A: The rails support up to 200 lbs (91 kg) of equipment, providing solid support for most 3U devices.
  • Q: Which hole configurations are compatible? A: The rail is compatible with square, round, and threaded holes commonly found in rack enclosures, enabling broad compatibility across brands.
  • Q: What installation depths does it accommodate? A: The adjustable depth range is from 10" to 24" (254 mm to 609.6 mm), allowing use in a wide range of cabinets and enclosures.
  • Q: Is this rail suitable for frequent access and maintenance? A: Yes. The design emphasizes ease of installation and removal, making maintenance and future upgrades faster and less disruptive.
