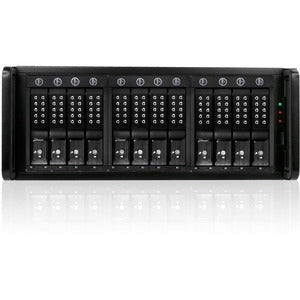

RAIDage JAGE412HDBK-DE-P Drive Enclosure: 4U 12-Bay SAS/SATA JBOD

Meet the RAIDage JAGE412HDBK-DE-P, a high-density external drive enclosure engineered for demanding storage environments. This 4U, 12-bay chassis is built to host SAS/SATA drives with hot-swappable bays, delivering scalable capacity and simplified maintenance for data centers, media workflows, backups, and enterprise workloads. Designed with three HD miniSAS (SFF8644) host interfaces, it offers flexible connectivity to multiple controllers, expansion options, and efficient data throughput to meet today’s fast-paced data requirements. The sleek black enclosure blends robust build quality with rack-ready practicality, making it a reliable backbone for growing storage needs.

• Robust 4U, 12-bay external design provides enormous storage density in a single chassis, ideal for RAID configurations, largeJBOD deployments, or mixed storage environments. The hot-swappable drive bays enable quick drive replacement without powering down the system, minimizing downtime and maximizing uptime for critical workloads.
• Broad SAS/SATA compatibility with 12Gb/s SAS and SATA/600 support ensures fast data transfer and broad media compatibility. This enables you to mix and match drives to optimize performance, capacity, and cost, while preserving high throughput for data-intensive tasks such as video editing, archival storage, and synthetic benchmarks.
• Three high-quality HD miniSAS (SFF8644) host interfaces provide flexible connection options to multiple host controllers, HBAs, or expansion enclosures. This setup enables daisy-chaining, link aggregation, or redundant pathways in complex storage topologies, giving administrators more control over bandwidth, scalability, and reliability.
• Professional, rack-mountable black enclosure designed for data centers, server rooms, and on-site deployments. The 19-inch rack compatibility and solid chassis construction deliver dependable performance in demanding environments while maintaining a clean, professional appearance in front- and rear-facing rack layouts.
• Designed for enterprise-grade reliability and ease of maintenance, the JAGE412HDBK-DE-P supports hot-swapping, straightforward drive replacement, and seamless integration with existing RAID controllers and management software. This makes it a forward-looking solution for scalable storage growth and adaptable RAID/JBOD configurations as business needs evolve.

Technical Details of RAIDage JAGE412HDBK-DE-P

• Model: RAIDage JAGE412HDBK-DE-P
• Form factor: External 4U rack-mountable chassis
• Bays: 12 external bays for SAS/SATA drives
• Drive interface: SAS/SATA; supports 12Gb/s SAS and SATA/600
• Host interfaces: 3 × HD miniSAS (SFF-8644) connectors
• Drive replacement: Hot-swappable bays for maintenance without downtime
• Color/finish: Black
• Intended use: External disk array storage, suitable for RAID configurations or JBOD via host controller

How to install RAIDage JAGE412HDBK-DE-P

• Prepare your storage rack and enclosure location: Ensure a standard 19-inch rack with adequate clearance for airflow and cable management. If rails are included, install them according to the manufacturer’s guidelines to secure the 4U chassis safely in the rack.
• Mount the enclosure in the rack: Use the supplied hardware to fasten the unit securely, ensuring stability and proper alignment with rack rails. Check that the enclosure remains level and accessible for serviceability.
• Connect host interfaces: Route three HD miniSAS (SFF-8644) cables from compatible SAS/SATA host controllers, HBAs, or expansion ports to the enclosure. Maintain tidy cables to promote airflow and reduce heat buildup inside the rack.
• Populate drives and verify hot-swap readiness: Install SAS/SATA drives into the 12 bays as needed. If drives are already installed, verify they are seated correctly and recognized by the backplane. Hot-swapping allows you to swap drives without powering down the system, which is ideal for uptime-sensitive applications.
• Power up and configure: Connect power and turn on the rack with the enclosure installed. Use your host RAID controller or JBOD management software to initialize the bays, configure arrays or logical volumes, and monitor drive health. Establish any required redundancy, hot-spare policies, and rebuild procedures according to your storage plan.

Frequently asked questions

• Q: What drives can I install? A: The enclosure supports SAS and SATA drives, with a total of 12 external bays. This allows you to mix drive types and capacities to fit performance and storage needs, while using your existing RAID controller or JBOD management software to configure the desired storage layout.
• Q: How is this enclosure connected to a server? A: It uses three HD miniSAS (SFF-8644) host interfaces, enabling high-speed connections to compatible RAID controllers or HBAs. Depending on your controller, you can implement multiple paths, expandability, or daisy-chaining to achieve the required bandwidth and redundancy.
• Q: Can I replace drives without powering down the system? A: Yes. The JAGE412HDBK-DE-P features hot-swappable bays, allowing drive replacement or upgrades while the system remains online, minimizing disruption to ongoing operations.
• Q: Is it possible to use this enclosure as JBOD or for RAID configurations? A: Yes. The enclosure is designed for external disk array storage and can be used as JBOD or integrated into RAID configurations with compatible controllers. The choice depends on your controller’s capabilities and your storage strategy.
• Q: Where is this enclosure best used? A: It is ideal for data centers, media production environments, backups, archival storage, and other applications requiring dense, scalable external storage with flexible connectivity and robust hot-swapping capabilities.
