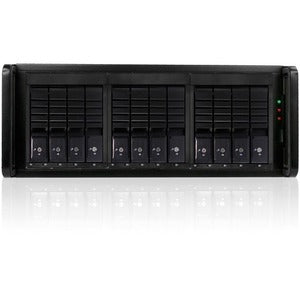

RAIDage JAGE412HDBK-DE-SEA: 12-Bay 4U SAS/SATA Rack-Mount Drive Enclosure

Discover the RAIDage JAGE412HD-DE-SEA, a high-capacity external storage solution engineered for demanding data workloads. This 4U, 12-bay rack-mount enclosure is designed to serve as a robust SAS/SATA disk array chassis with hot-swappable bays, ideal for expanding storage in enterprise environments, data centers, and professional media workflows. Built to handle RAID configurations with ease, the JAGE412HD-DE-SEA delivers scalable, reliable storage with flexible host connectivity via three high-quality Mini-SAS HD (SFF8644) connectors, ensuring solid throughput and dependable performance for backup, virtualization, and archival projects.

• Massive 12-bay, hot-swappable external chassis: The JAGE412HD-DE-SEA accommodates up to 12 drives in a single 4U external enclosure, enabling flexible RAID configurations (such as RAID 0, 1, 5, 6, and 10) or JBOD expansion. Hot-swappable bays simplify maintenance and minimize downtime, letting you replace drives without interrupting operation.
• High-speed SAS/SATA backbone with flexible host connectivity: Featuring 12Gb/s SAS support alongside SATA/600 compatibility, this enclosure provides rapid data transfer and broad compatibility with modern storage controllers. Three HD Mini-SAS (SFF8644) connectors offer versatile host interface options and easy cabling for multi-controller or expand­er setups.
• Rugged 4U rack-mountable design for data-center deployments: Built to endure enterprise workloads, the enclosure is designed to fit standard 19-inch racks in a 4U height, delivering scalable storage in a compact footprint. Its black chassis offers a professional look that blends into any data-center rack with durable construction for long-term use.
• Enterprise-ready reliability with streamlined maintenance: The JAGE412HD-DE-SEA emphasizes reliability and ease of maintenance, including hot-swappable bays that reduce maintenance windows and simplify drive replacements. The external JBOD design enables straightforward expansion without intrusive downtime, making it suitable for backup appliances, media workflows, and virtualization hosts.
• Broad compatibility and future-proof expansion: Engineered to work with a wide range of SAS/SATA controllers and expansion backplanes, this enclosure supports scalable storage growth as your needs evolve. The three Mini-SAS HD connectors provide flexible connectivity options for current controllers and future upgrades, helping you maximize the return on your storage investment.

Technical Details of RAIDage JAGE412HDBK-DE-SEA

• Product family: External SAS/SATA JBOD drive enclosure
• Drive bays: 12 hot-swappable bays
• Form factor / enclosure height: 4U rack-mountable chassis
• Rack compatibility: Standard 19-inch racks
• Interface: SAS 12Gb/s and SATA/600 compatibility
• Host interface: 3 × HD Mini-SAS (SFF8644) connectors
• Color / finish: Black
• Usage: Suitable for RAID configurations or JBOD expansions

How to Install RAIDage JAGE412HDBK-DE-SEA

• Prepare your rack: Ensure you have a compatible 19-inch rack and the required rails installed for a secure 4U enclosure installation. Confirm power availability and adequate cooling in the deployment area.
• Mount the enclosure: Slide the JAGE412HD-DE-SEA into the rack, align with mounting rails, and secure with screws or mounting hardware as appropriate for your rack model. Verify the enclosure is level and firmly fastened to prevent vibration during operation.
• Install drives (if not pre-populated): If you are adding drives, insert them into the 12 hot-swappable bays. Ensure the drives are properly seated and locked in place. Use the enclosure’s drive trays and latching mechanism as designed for safe, tool-less operation.
• Connect host interfaces: Attach three HD Mini-SAS (SFF8644) cables from your SAS/SATA controller or expansion backplane to the enclosure’s Mini-SAS HD connectors. Ensure cables are routed neatly to avoid strain and allow proper airflow within the rack.
• Power up and configure: Apply power to the enclosure and boot your storage controller or host system. Access the controller’s management interface to enroll the new JBOD, configure RAID groups, and initialize drives as needed. Follow your controller’s guidance for array creation and file-system formatting.
• Verify operation and monitor health: Check the enclosure’s status indicators and your controller’s management software to confirm all drives are detected and operating normally. Set up alerts for drive failures, hot-swap events, or fan and temperature conditions to maintain data integrity and uptime.
• Maintenance and future expansion: When expanding capacity, you can add or reconfigure drives as needed. Regularly update firmware on both the enclosure (if applicable) and the host controller to ensure compatibility and performance. Keep spare drives on hand for rapid replacement in critical environments.

Frequently asked questions

• Q: How many drives does the RAIDage JAGE412HDBK-DE-SEA support?

  A: It supports up to 12 hot-swappable SAS/SATA drives in a single external 4U chassis, making it suitable for substantial RAID and JBOD configurations.

• Q: What interfaces does this enclosure use?

  A: The enclosure uses SAS 12Gb/s and SATA/600 compatibility, with three HD Mini-SAS (SFF8644) connectors to provide flexible host connectivity and expandability options.

• Q: Is this enclosure suitable for hot-swapping drives?

  A: Yes. The JAGE412HD-DE-SEA is designed for hot-swappable drives, enabling drive replacement and maintenance without powering down the system.

• Q: Is the enclosure rack-mountable?

  A: Yes. It is a 4U rack-mountable external chassis designed for standard 19-inch racks, making it appropriate for data centers and professional server rooms.

• Q: What kind of maintenance or expansion should I plan for?

  A: Plan for routine controller and firmware updates, monitoring of drive health, and spare drives for quick replacements. The three Mini-SAS connectors allow flexible expansion and simple reconfiguration as your storage needs evolve.
