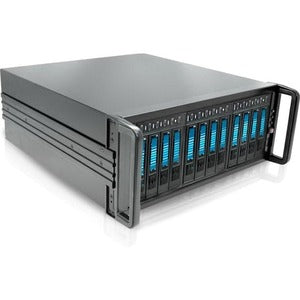

RAIDage JAGE412HDBL Drive Enclosure 12Gb/s SAS, SATA/600 - 4U Rack-Mountable

The RAIDage JAGE412HDBL is an enterprise-class external storage chassis designed to deliver scalable, high‑capacity storage in a 4U, rack‑mountable form factor. Built for reliability and uptime in demanding data-center environments, this 12‑bay enclosure supports SAS and SATA drives, enabling powerful RAID configurations or JBOD expansion to suit archival, backup, virtualization, media editing, and intensive data workloads. With a robust host interface based on Mini-SAS HD (SFF-8644) and hot-swappable drive bays, the JAGE412HDBL is a flexible, future‑proof addition to any storage ecosystem.

• Unmatched capacity in a 4U footprint: This 12‑bay external storage enclosure is purpose‑built for large data sets, offering ample room for expanding current pools or provisioning new, high‑throughput RAID arrays. Its design accommodates a mix of SAS and SATA drives—ranging from economical HDDs to fast SSDs—so you can optimize for capacity, performance, or a balanced hybrid approach across workloads like media streaming, data backup, and scientific computing.
• Fast, flexible connectivity with Mini-SAS HD: The enclosure uses three HD Mini‑SAS (SFF‑8644) connectors to deliver a clean, scalable backplane solution. This triplet of high‑bandwidth links supports 12Gb/s SAS and SATA/600 data paths, enabling efficient data movement between the chassis and multiple host controllers. The result is higher aggregate bandwidth, improved I/O parallelism, and simplified cable management in busy data centers.
• Hot-swappable drive bays for maximum uptime: Designed for hot swapping, the JAGE412HDBL lets you replace or upgrade drives without powering down the system. This capability minimizes maintenance windows and downtime, a critical advantage for 24/7 operations, disaster recovery testing, and storage growth—you can add capacity or recover from a drive failure quickly and with minimal service interruption.
• Robust cooling and build quality: The enclosure is engineered with a focus on thermal efficiency and reliable operation in dense rack environments. A thoughtful cooling strategy maintains steady temperatures across all bays, helping to preserve drive health and sustained performance under heavy workloads. The sturdy 4U chassis plus rack‑mount compatibility ensures stable, professional integration into existing data centers.
• Flexible RAID and JBOD options: Whether you need a dedicated RAID expansion shelf or a high-capacity JBOD presentation to a RAID controller, the JAGE412HDBL supports versatile configurations. It’s compatible with common RAID controllers and storage management software, allowing you to tailor data protection, performance, and capacity to your precise requirements.

Technical Details of RAIDage JAGE412HDBL

• Drive bays: 12 hot-swappable bays in a 4U chassis
• Interface: 12Gb/s SAS with SATA/600 compatibility
• Host interface: 3 x Mini-SAS HD (SFF-8644) connectors
• Form factor: External 4U rack-mountable enclosure
• Construction: Durable metal enclosure with rack‑mount rails and front‑panel access
• Color: Black with blue accents
• Power: Requires external power supply (PSU not included)
• Cooling: Integrated thermal management designed for continuous operation in high‑density racks
• Hot-swappable: Yes, drive trays are removable and replaceable without powering down the system
• RAID/JBOD support: Suitable for RAID configurations or JBOD expansion with compatible controllers

How to install RAIDage JAGE412HDBL

• Prepare your rack environment: Confirm you have a standard 19‑inch rack with adequate space, cooling, and grounding. Verify you have a compatible rail kit and sufficient power and network connectivity for your storage topology.
• Mount the enclosure: Secure the JAGE412HDBL into the 4U rack space using the supplied rails and hardware. Ensure the unit is level, firmly fastened, and not obstructing airflow to adjacent equipment.
• Connect host interfaces: Attach the SAS/SATA host cables to the three Mini-SAS HD (SFF-8644) connectors from your RAID controller or HBAs. Route cables cleanly to avoid strain on connectors and to facilitate airflow and maintenance.
• Install or verify drives: If drives are not pre-installed, insert SAS/SATA drives into the 12 hot-swappable bays in a pattern that suits your intended RAID layout. Ensure each drive is firmly seated and its tray latch is engaged; monitor bay LEDs for proper recognition by the system.
• Power up and configure: Apply power and boot into your server or RAID management software. Initialize the enclosure on the controller, present the drives to the operating system, and create your desired RAID arrays or JBOD configuration according to your storage policy.
• Verify performance and monitor health: Run baseline diagnostics and performance tests to confirm throughput meets expectations. Set up alerts for drive failures, temperature, and fan speeds to maintain ongoing reliability.

Frequently asked questions

• Q: What interfaces does the RAIDage JAGE412HDBL support?

  A: It is designed for SAS/SATA drives with 12Gb/s SAS compatibility and SATA/600 data paths, providing flexible data transport options for mixed-drive environments.

• Q: How many drives can I install?

  A: The enclosure provides 12 hot-swappable bays, enabling substantial capacity within a 4U footprint.

• Q: Can drives be hot-swapped?

  A: Yes. The unit supports hot-swapping, which helps minimize downtime during maintenance or upgrades.

• Q: Do I need a separate power supply?

  A: External power is typically required for rack-mount storage enclosures of this type. Check your datasheet or supplier guidance to ensure you have the correct PSU options and redundancy if needed.

• Q: Which operating systems and controllers are supported?

  A: The enclosure is designed to work with standard SAS/SATA controllers and RAID management software. Compatibility is generally broad across common server operating systems when connected to appropriate RAID controllers; verify with your controller vendor for any model-specific considerations.
