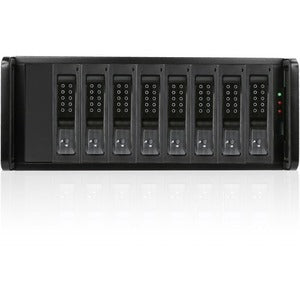

RAIDage JAGE480HDBK-DE Drive Enclosure — 4U 8-Bay External SAS/SATA Rackmount

The RAIDage JAGE480HDBK-DE is a high-density external storage chassis engineered for demanding data centers, IT labs, and enterprise environments. This 4U, 8-bay enclosure delivers scalable storage expansion with trayless, hot-swappable SATA drives and dual high-density Mini-SAS host interfaces, making it ideal for RAID arrays, JBOD configurations, backups, media libraries, and virtualization workloads. Designed with robust data integrity in mind, the JAGE480HDBK-DE blends enterprise reliability with flexible connectivity to support a wide range of storage strategies—from straightforward expansion to complex multi-RAID deployments. Whether you’re building a compact NAS/SAN gateway or expanding a server room’s storage footprint, this enclosure provides the backbone for dependable, scalable, and cost-efficient storage growth.

• Eight hot-swappable SATA drive bays in a trayless 4U chassis: The JAGE480HDBK-DE is purpose-built to maximize dense storage within a standard 19-inch rack. Its trayless design simplifies drive installation and replacement, reducing downtime during maintenance and upgrades. With eight bays ready to accept high-capacity SATA hard drives or SSDs, you gain substantial storage capacity in a compact footprint, making it an excellent choice for backups, archiving, media libraries, and data-intensive applications. The trayless architecture also helps streamline airflow and cooling within your rack, contributing to reliable operation in continuous workloads. This chassis is engineered for rapid deployment, enabling you to expand storage quickly without sacrificing space or performance.
• 12Gb/s SAS and SATA/600 support for flexible, high-speed data transfer: The enclosure provides compatibility with 12Gb/s SAS storage environments while still supporting traditional SATA/600 drives. This blend of interfaces enables you to mix drive types to match capacity, performance, and budget requirements. The 12Gb/s SAS backbone is designed to handle demanding workloads, delivering higher bandwidth and improved I/O scalability for RAID arrays, virtualization hosts, and data-intensive applications. Whether you’re building a high-availability backup solution or a fast-access media repository, the JAGE480HDBK-DE accommodates evolving storage needs without forcing a wholesale hardware refresh.
• Dual high-density HD Mini-SAS external host interfaces for dense connectivity: The enclosure features two HD Mini-SAS (SFF8) external host interfaces, enabling streamlined cabling and scalable connectivity to compatible servers and RAID controllers. This dual-port design supports multi-path or load-balancing configurations when paired with capable controller hardware, helping maximize throughput and resilience in busy data center environments. The compact, high-density connectors reduce cable clutter in rack spaces while maintaining robust, enterprise-grade data paths for sustained performance across multiple drives and workloads.
• 4U rack-mountable chassis with a black, professional finish for data center deployment: Built to integrate seamlessly into standard server racks, the JAGE480HDBK-DE offers a sturdy, rack-ready solution for organizations requiring reliable, long-term storage expansion. The 4U height provides generous air flow and room to accommodate additional cooling and management hardware, while the black finish adheres to typical data-center aesthetics. This enclosure is designed to endure the rigors of continuous operation, offering dependable performance for a wide variety of storage tasks—from daily backups to archival retention and heavy read/write workloads.
• RAID-ready with wide compatibility for RAID 0/1/5/6/10 and JBOD: The enclosure supports flexible storage configurations when paired with an appropriate RAID controller. Users can implement RAID 0 for performance, RAID 1 for redundancy, RAID 5/6 for a balance of capacity and fault tolerance, RAID 10 for superior performance with redundancy, or JBOD for presenting each drive as a separate volume. This versatility makes the JAGE480HDBK-DE a versatile backbone for mixed workloads, virtual machine storage, databases, and media libraries. The trayless design enhances maintenance workflows for rebuilds and drive replacements, helping to minimize downtime during maintenance windows and upgrades.

Technical Details of RAIDage JAGE480HDBK-DE

• Drive Bays: 8 SATA drive bays in a trayless, hot-swappable 4U external enclosure for scalable storage expansion.
• Storage Interface: 12Gb/s SAS and SATA/600 support to accommodate high-performance SAS drives and cost-effective SATA drives.
• Host Interface: 2 x HD Mini-SAS external connectors (SFF8) for compact, high-density connectivity to servers or RAID controllers.
• Form Factor & Finish: 4U rack-mountable chassis, black finish suitable for data-center environments and standard 19-inch racks.
• RAID & Compatibility: Supports RAID 0/1/5/6/10 and JBOD when used with a compatible RAID controller; designed for trayless, hot-swappable operation and scalable storage deployments.

How to install RAIDage JAGE480HDBK-DE

1) Prepare your rack and power: Place the enclosure into a standard 19-inch rack space, align with existing equipment, and secure it using the appropriate rack screws. Ensure the rack has adequate airflow and is connected to a reliable power source with appropriate surge protection or redundant power if available. Verify that the chassis is level and firmly mounted before proceeding with drive installation.

2) Install drives: With a trayless design, insert your SATA drives directly into the eight bays. Ensure drives are compatible with the enclosure and properly seated. If your drives require mounting hardware, attach any necessary rails or adapters per the manufacturer’s guidelines. Confirm that drives are recognized as hot-swappable components, enabling replacement without powering down the enclosure or host system.

3) Connect to the host: Use the two HD Mini-SAS (SFF8) cables to connect the enclosure to your RAID controller or server host. Route cables neatly to avoid airflow obstruction and ensure a clean, organized installation. Check that both host ports are securely connected and that cables are routed to minimize strain on the connectors, especially during maintenance or drive changes.

4) Power up and initialize: Power on the enclosure and boot the connected server or storage controller. Enter the RAID controller’s management utility or BIOS to detect the new enclosure and its drives. If necessary, perform a disk initialization or full sanity check to confirm drive health and visibility within the controller’s configuration utility.

5) Configure storage: Create the desired RAID volumes or set the drives to JBOD in the controller’s management interface. Assign hot-spare drives if redundancy is required, and configure any preferred rebuild or scrubbing schedules. Monitor the array for consistency and performance, and verify that the operating system can access the newly created volumes. Maintain routine health checks and firmware updates for both the enclosure and the host controller to ensure ongoing reliability and compatibility.

6) Ongoing management: After installation, implement monitoring practices for drive health, temperature, and enclosure status. Use vendor-provided software or integrated management tools to track SMART attributes, drive failure predictions, and overall system integrity. Regularly back up important data and maintain a tested disaster recovery plan to maximize uptime and data protection in production environments.

Frequently asked questions

• Q: How many drives does the enclosure support?
• A: The RAIDage JAGE480HDBK-DE supports up to 8 SATA drives in a 4U, trayless, hot-swappable configuration.
• Q: What interfaces are used to connect to a host?
• A: The enclosure uses two high-density HD Mini-SAS external ports (SFF8) for host connectivity, along with support for 12Gb/s SAS and SATA/600 drive interfaces.
• Q: What RAID levels are supported?
• A: With a compatible RAID controller, you can configure RAID 0, 1, 5, 6, 10 or use JBOD for individual drive presentation, enabling flexible storage configurations for various workloads.
• Q: Is the chassis suitable for data center use?
• A: Yes. The 4U rack-mountable enclosure with a black finish is designed for data centers, IT labs, and SMB environments that require dense, scalable storage plus reliable performance and hot-swappable drive maintenance.
• Q: Can drives be replaced without powering down the system?
• A: Yes. The trayless, hot-swappable design allows drive replacement and maintenance without shutting down the enclosure or server, minimizing downtime and service interruption.
