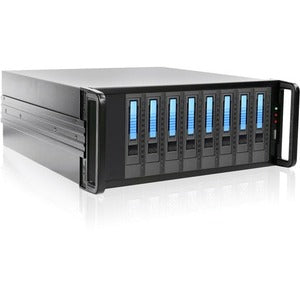

RAIDage JAGE480HDBL-M1 Drive Enclosure: 4U SAS/SATA JBOD with Dual Mini-SAS HD Interfaces

The RAIDage JAGE480HDBL-M1 is a high-capacity external storage chassis designed for demanding data centers, media production studios, and enterprise environments. Built as a 4U, 8-bay rack-mountable enclosure, it delivers scalable, reliable, and accessible storage with hot-swappable drive bays that simplify maintenance and maximize uptime. This JBOD-ready enclosure is optimized for SAS-2 and SATA/600 backplanes, offering flexible connectivity through two high-quality HD miniSAS (SFF8644) host interfaces. Its robust construction and cooling system make it a dependable backbone for large storage pools, backups, archiving, and high-throughput workloads.

• Massive, scalable storage in a single 4U chassis. The JAGE480HDBL-M1 supports up to eight hot-swappable drives in a compact 4U form factor, enabling expansive storage configurations without compromising rack space. This enclosure is ideal for expanding existing SAS/SATA arrays or building new, high-capacity storage pools for video editing, virtualization, or data-intensive applications.
• Dual Mini-SAS HD (SFF8644) host interfaces for high throughput. The enclosure ships with two HD miniSAS connectors, providing flexible, high-bandwidth connections to modern SAS-2 and SATA controllers. Whether you are consolidating multiple workloads or streaming large media files, the dual ports help distribute traffic efficiently and minimize bottlenecks in multi-initiator environments.
• Hot-swappable drive bays simplify maintenance and minimize downtime. With tool-less drive trays and hot-swappable capability, drives can be replaced or upgraded without powering down servers. This design translates to reduced maintenance windows and improved serviceability in production environments where uptime is critical.
• External JBOD design with RAID-ready capabilities from the host controller. The enclosure provides a versatile, scalable storage chassis that relies on a compatible host RAID controller or HBA to configure RAID levels. It’s engineered to work seamlessly with enterprise-grade controllers, allowing you to implement RAID 0/1/5/6/10 or more complex configurations as your storage strategy evolves.
• Durable build with thoughtful cooling and clear rack integration. The JAGE480HDBL-M1 features a sturdy enclosure in a black/blue aesthetic designed for data-center environments. It includes a 120mm cooling fan to maintain drive temperatures under load, helping sustain performance and prolong drive life in dense, multi-drive deployments. Its 4U rack-mountable design ensures straightforward integration into standard IT racks with ample airflow and organized cabling.

Technical Details of RAIDage JAGE480HDBL-M1

• Form factor: external 4U rack-mountable chassis
• Drive bays: up to 8 hot-swappable SAS/SATA disks
• Interfaces: SAS-2, SATA/600
• Host connectors: 2x HD miniSAS (SFF8644)
• Cooling: 120mm cooling fan for effective thermal management
• Construction: durable steel chassis with black finish and blue accents
• Mounting: standard 4U rack integration for enterprise environments
• Deployment: external JBOD enclosure designed to pair with host RAID controllers

How to install RAIDage JAGE480HDBL-M1

• Prepare your rack: Ensure you have a compatible 4U rack space with adequate cooling and airflow. Install the enclosure securely using the included rails or rack adapters to prevent movement during operation.
• Connect host interfaces: Attach the two HD miniSAS (SFF8644) cables from the enclosure to your SAS/SATA host controller or HBA. Verify that the host ports align with the enclosure’s backplane and that both connectors are firmly seated.
• Install drives: If you are populating the bays, insert drives into the hot-swappable trays one by one. Ensure drives are fully seated and the trays are properly secured to maintain signal integrity and airflow.
• Power and cabling: Connect the enclosure to a suitable power source and route cables to avoid obstructing airflow. Ensure power redundancy if your data-center environment requires it and verify that the enclosure receives clean power for stable operation.
• Configure storage on the host: Power up the system and enter your host controller’s management interface. Since this is an external JBOD enclosure, configure your drives as standalone disks or create JBOD before adding them to a RAID array in your preferred controller software. Monitor drive health and SMART data to preempt failures and schedule maintenance as needed.

Frequently asked questions

• Q: What is the primary use case for the RAIDage JAGE480HDBL-M1?
  A: It serves as a high-capacity external JBOD storage chassis that connects to a host SAS/SATA controller to form large storage pools. It’s ideal for virtualization, media editing, backups, archiving, and other data-intensive tasks where a scalable, detachable storage solution is beneficial.
• Q: Does the enclosure include a built-in RAID controller?
  A: No. The JAGE480HDBL-M1 is an external disk array chassis. RAID functionality is provided by the host controller or an external RAID solution connected to the dual Mini-SAS HD interfaces.
• Q: How many drives can I install?
  A: Up to eight drives can be installed in the 4U, 8-bay chassis, depending on drive size and tray design. This enables substantial total usable capacity when populated with high-density drives.
• Q: What kinds of drives are supported?
  A: The enclosure supports SAS and SATA drives that are compatible with the host controller and backplane. It’s designed to work with common enterprise HDDs and SSDs that are compatible with SAS-2 and SATA/600 interfaces.
• Q: What cooling features are included?
  A: A 120mm cooling fan is integrated to maintain drive temperatures under load, helping preserve performance and reliability in dense 4U configurations. Ensure adequate front-to-back airflow in the rack for optimal cooling.
