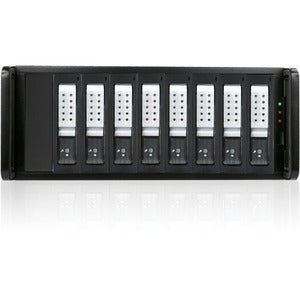

RAIDage JAGE480HDSL-DE: 4U 8-Bay SAS/SATA Drive Enclosure with Mini-SAS HD Interface

Discover the RAIDage JAGE480HDSL-DE, a purpose-built external storage chassis engineered for demanding data environments. This 4U, 8-bay enclosure delivers scalable, high-density storage with trayless, hot-swappable bays that simplify drive maintenance and maximize uptime. Built to handle 12Gb/s SAS and SATA/600 connectivity, it leverages a Mini-SAS HD host interface to provide robust, high-bandwidth access for RAID-capable storage pools. Whether you’re building a media library, backing up critical data, or expanding a data center’s storage footprint, the JAGE480HDSL-DE offers reliable performance, flexible RAID options, and a clean, professional footprint that fits in standard 19-inch racks. Its rugged construction and enterprise-grade features are designed to endure continuous operation while delivering the capacity you need for today and the scalability you’ll demand tomorrow.

• 8 hot-swappable drive bays in a sturdy 4U enclosure provide substantial capacity and room for growth, enabling you to scale storage without sacrificing performance or space.
• Trayless design supports rapid drive changes without the need for removable trays, minimizing downtime and streamlining maintenance in busy data centers or editing suites.
• Broad compatibility with 12Gb/s SAS and SATA/600 drives ensures you can leverage existing hardware, SSDs, and future upgrades without compatibility concerns.
• Mini-SAS HD host interface delivers high-density, high-bandwidth connectivity to the storage network, supporting dense configurations and smooth data transfers across multiple drives.
• Flexible RAID options including 0, 1, 5, 6, 10 and JBOD give you the freedom to optimize for performance, redundancy, or pure capacity depending on workload and data protection needs.

Technical Details of RAIDage JAGE480HDSL-DE

• Model: JAGE480HDSL-DE
• Drive Bays: 8 external bays (trayless) supporting 3.5" SATA/SAS drives; hot-swappable for minimal downtime.
• Chassis Form Factor: 4U rack-mountable chassis designed for professional data-center or production environments.
• Interface: Mini-SAS HD host interface for compact, scalable connectivity to high-density storage networks.
• Drive Protocols Supported: SAS 12Gb/s and SATA 6Gb/s (SATA/600) to maximize compatibility with a wide range of drives.
• Connectivity: External enclosure designed to pair with compatible RAID controllers and servers using the Mini-SAS HD interface for streamlined integration.
• Enclosure Construction: Built to endure continuous operation with a focus on cooling, airflow, and drive accessibility in rack installations.
• Color and Finish: Black with silver accents to align with professional rack-mount aesthetics and server-room environments.

How to install RAIDage JAGE480HDSL-DE

• Prepare your environment: verify rack space, power supply capacity, and cooling to support an 8-drive 4U enclosure. Ensure the area is clean, well-ventilated, and free of static hazards before handling any hardware.
• Mount the enclosure in a standard 19-inch rack using the included mounting hardware. Align the unit with adjacent equipment to optimize airflow and cable management. Use appropriate rack screws and follow ESD precautions during installation.
• Connect the host system to the enclosure with the Mini-SAS HD cable. Route cables neatly to minimize bending and interference, and secure them to prevent accidental disconnections during operation.
• Power up the enclosure and confirm that the system is recognizing the chassis and its eight drive bays. If drives are not detected, verify that the RAID controller or operating system has the correct driver support and that the connectors are fully seated.
• Insert drives into the trayless bays one at a time, ensuring proper seating and alignment. If your workflow requires hot-swapping, drives can be replaced without powering down the system, but always observe best-practice procedures for hot-swap operations.
• Configure your RAID or JBOD setup through your RAID controller or software array management utility. Select the desired RAID level (0/1/5/6/10) or JBOD to meet performance, redundancy, and capacity objectives. Initialize the array and perform any required consistency checks or scrubs.
• Test data integrity and performance with representative workloads before putting the system into production. Validate write/read speeds, RAID rebuild times, and error-handling behavior to ensure reliability under expected operating conditions.
• Document the configuration, including RAID level, drive serial numbers, and enclosure settings. Establish a backup strategy and a maintenance plan that includes routine firmware updates, drive health monitoring, and environmental checks.

Frequently asked questions

• Q: What does "trayless" mean for this enclosure?
• A: Trayless indicates that drives can be hot-swapped without using traditional drive trays. This design enables faster maintenance and simpler replacement while the system remains online, minimizing downtime in production environments.
• Q: Which RAID levels are supported by the JAGE480HDSL-DE?
• A: The enclosure supports common RAID configurations including 0, 1, 5, 6, and 10, as well as JBOD. This flexibility allows you to optimize for performance, redundancy, or raw capacity based on workload requirements.
• Q: Is this enclosure suitable for high-bandwidth workloads like 4K video editing or large-scale media libraries?
• A: Yes. With 12Gb/s SAS, SATA/600 compatibility, and the Mini-SAS HD interface, the JAGE480HDSL-DE can sustain sizable streaming and editing workloads when paired with a capable RAID controller and fast drives.
• Q: What type of drives can be installed in the bays?
• A: The bays accept 3.5" SATA or SAS hard drives and SSDs, subject to the compatibility and cooling capabilities of your RAID controller and server environment.
• Q: Do I need a specific RAID controller to use this enclosure?
• A: A compatible RAID controller or software-defined storage solution that supports external 8-bay enclosures with a Mini-SAS HD interface is required. Verify compatibility with your controller vendor for best results.
