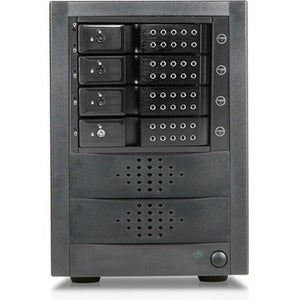

RAIDage JAGE5BT4HDBK-DE-P Drive Enclosure — 4-Bay SAS/SATA Trayless Tower (12Gb/s SAS, Mini-SAS HD)

Meet a high-capacity, enterprise-grade storage solution tailored for demanding workloads: the RAIDage JAGE5BT4HDBK-DE-P is a four-bay, trayless external SAS/SATA drive enclosure designed to deliver scalable storage performance in a compact tower form factor. Built around a robust Mini-SAS HD host interface (SFF-8644) and capable of supporting both 12Gb/s SAS and SATA/600 interfaces, this enclosure is a versatile foundation for RAID configurations, data backups, media libraries, and workflow acceleration. Its streamlined, trayless design reduces downtime and simplifies drive maintenance, while a dedicated cooling solution keeps drives performing at peak efficiency even during extended write-intensive operations.

• Four drive bays in an external, trayless enclosure: Expand storage capacity without adding rack space. With four bays, you can implement a variety of RAID levels for reliability and performance, while keeping a compact footprint in deskside or small-scale data environments.
• 12Gb/s SAS and SATA/600 compatibility: The enclosure supports high-speed SAS connectivity alongside SATA drives, enabling versatile deployment with existing controllers and ensuring compatibility with modern storage infrastructures.
• Mini-SAS HD host interface (SFF-8644): A high-density, robust external connection designed for server rooms and workstations, delivering a reliable, scalable path between the enclosure and host controllers or JBOD solutions.
• Trayless design with active cooling: No removable drive trays means fewer parts to manage and faster drive installation, while an 80mm cooling fan maintains optimal temperatures to extend drive life and sustain throughput during long-running tasks.
• External tower form factor in classic black: A space-saving, low-profile enclosure that blends into professional environments, production studios, or data centers, providing a neat, organized storage solution without sacrificing performance.

Technical Details of RAIDage JAGE5BT4HDBK-DE-P

• Drive bays: External 4-bay enclosure with trayless design for easy drive insertion and maintenance.
• Drive interface support: SAS and SATA drives supported, enabling flexible configurations and compatibility with a wide range of drives and controllers.
• Data transfer interface: 12Gb/s SAS capability for high-throughput workloads; SATA 6Gb/s compatibility as needed for SATA drives.
• Host interface: Mini-SAS HD (SFF-8644) connection for a durable, high-density link to a host or RAID controller, improving cabling integrity and performance in dense environments.
• Form factor: External tower-style enclosure designed for reliability and expandability in professional settings.
• Cooling: 80mm cooling fan helps dissipate heat from four installed drives, supporting sustained performance and longer drive life.
• Color and build: Black enclosure with rugged construction suitable for data centers, server rooms, and production environments.
• RAID readiness: Primed for RAID configurations via compatible host controllers or enclosure-level RAID controllers, enabling fault tolerance and enhanced performance for storage pools.
• Thermal and acoustic profile: Designed to balance effective cooling with silent operation suitable for office and studio spaces, reducing heat buildup without excessive noise.

How to install RAIDage JAGE5BT4HDBK-DE-P

• Prepare your system: Power down the host server or workstation and ensure you have a compatible RAID controller or host adapter that supports SAS/SATA with a Mini-SAS HD interface. Verify that you have adequate power and cooling for the enclosure and drives.
• Install drives into the enclosure: Slide four drives into the trayless bays. If needed, ensure the drives are properly seated and aligned with the connectors. Trayless design simplifies the installation—no trays to insert, just drive in and secure as required by your enclosure’s interior design.
• Connect to the host: Attach a Mini-SAS HD (SFF-8644) cable from the enclosure to the corresponding Mini-SAS HD port on your host controller or JBOD/RAID expansion unit. Use only high-quality cables to maintain signal integrity for 12Gb/s SAS transfers.
• Power up and initialize: Apply power to the enclosure and boot the host system. If your setup includes a hardware RAID controller, enter the RAID configuration utility to initialize the drives and create desired arrays (RAID 0/1/5/6/10, etc., depending on controller capabilities).
• Create and manage storage pools: Within the operating system or RAID management software, define your storage pools, assign volumes, and configure monitoring for drive health. For non-RAID controllers, each drive may appear as a separate disk—use the host OS to configure storage as needed.

Frequently asked questions

• Q: What drives are supported in the RAIDage JAGE5BT4HDBK-DE-P? A: The enclosure supports SAS and SATA drives. Check your host controller specifications to confirm compatibility with the drive sizes you plan to use and ensure proper alignment and firmware compatibility for optimal performance.
• Q: Does the enclosure support hot-swapping drives? A: The JAGE5BT4HDBK-DE-P uses a trayless design. Hot-swapping capabilities depend on your host controller and system configuration. Consult your controller’s documentation to determine if drive hot-swapping is supported in your setup.
• Q: What is the maximum throughput I can expect? A: Throughput depends on the drives installed and the host controller. The enclosure’s 12Gb/s SAS interface provides a high-bandwidth path, enabling fast data transfers with compatible SAS drives and controllers.
• Q: Is this enclosure suitable for data center use? A: Yes, its external 4-bay design, 12Gb/s SAS capability, and robust cooling make it a viable option for small to mid-size data centers, labs, or production environments that require scalable storage with reliable performance.
• Q: How do I configure RAID levels? A: RAID level configuration is typically performed through your host controller’s RAID management software or utility. The enclosure provides the physical bays and connectors; the logical RAID setup occurs via the controller or software you choose.
• Q: What maintenance and monitoring features are available? A: Monitor drive health, temperature, and enclosure status via your operating system or RAID management tools. Regular firmware updates for your controller and enclosure (if available) are recommended to maintain compatibility and performance.
