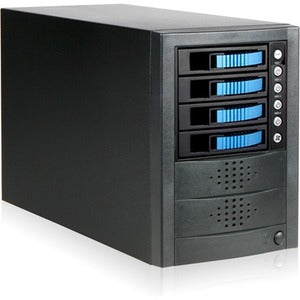

RAIDage JAGE5BT4HDBL Drive Enclosure: 4-Bay SAS/SATA Tower with 12Gb/s SAS and Mini-SAS HD Interface

The RAIDage JAGE5BT4HDBL Drive Enclosure is a high-density, external storage solution designed to deliver scalable capacity, robust performance, and flexible RAID configurations. Built to support up to four SAS/SATA drives in a compact tower, this enclosure is ideal for professional workflows that demand reliable data protection, fast data access, and straightforward expansion. Featuring a single high-quality SFF8644 Mini-SAS HD host interface, an efficient 80mm cooling fan, and a durable black/blue finish, the JAGE5BT4HDBL brings enterprise-grade storage capabilities to workstations, editing suites, small data centers, and enthusiast setups alike. Whether you are expanding existing storage or constructing a new RAID array, this external enclosure provides a dependable platform for data-intensive tasks, backups, archives, and shared storage environments.

• Expand storage capacity with four external SAS/SATA bays in a compact tower—ideal for RAID configurations and scalable data management.
• Ultra-fast data transfer with 12Gb/s SAS and broad compatibility with SATA/600 devices to maximize performance and versatility.
• Single, streamlined Mini-SAS HD host interface (SFF8644) simplifies connectivity to compatible controllers and systems, reducing cable clutter and potential bottlenecks.
• Efficient thermal management thanks to an 80mm cooling fan, helping sustain performance during long workloads and preventing thermal throttling.
• Rugged, professional enclosure finish in black with blue accents, engineered for reliable operation in demanding environments and easy integration into existing racks or desks.

Technical Details of RAIDage JAGE5BT4HDBL Drive Enclosure

• External 4-bay SAS/SATA disk array tower for versatile drive configurations.
• Interface: 12Gb/s SAS with SATA/600 compatibility for broad drive support and high-throughput performance.
• Host interface: Mini-SAS HD (SFF8644) to streamline external connections to RAID controllers and storage controllers.
• Cooling: 80mm cooling fan to maintain stable temperatures during sustained I/O workloads.
• Construction: Durable enclosure designed for reliability in professional environments; finishes in black with blue accents.
• Drive compatibility: Supports standard SAS/SATA hard drives and SSDs within the four external bays.
• Form factor: External disk array tower, suitable for use as a standalone storage unit or as part of a larger RAIDed storage pool.
• Power and cooling considerations: External enclosure relies on connected power supplies and system cooling to maintain operational integrity during lengthy operations.

how to install RAIDage JAGE5BT4HDBL

• Prepare your four SAS/SATA drives and confirm they are compatible with your controller and the enclosure. Ensure drives are properly seated and that any required RAID-ready firmware is up to date.
• Mount the drives into the four external drive bays or hot-swap trays according to the enclosure’s installation guide. Secure each drive to prevent movement during transport or operation.
• Connect the enclosure to a compatible host system using the Mini-SAS HD (SFF8644) cable. Ensure the host controller supports external SAS/SATA expanders and that the firmware is configured to recognize external enclosures.
• Power on both the enclosure and the host system. Access the RAID controller or storage management software to initialize the four drives and configure your desired RAID level across the bays. Follow the controller’s prompts to create the RAID array, allocate volumes, and assign drive priorities as needed.
• Format the newly created volumes in your operating system and assign drive letters or mount points. Verify data integrity and monitor drive health through the enclosure’s monitoring tools and the RAID controller’s management software. Regularly review temperatures and fan speeds to maintain performance and reliability.

Frequently asked questions

• Q: How many drives can I install in the RAIDage JAGE5BT4HDBL? A: This enclosure supports four external SAS/SATA drives, providing a flexible platform for RAID configurations and scalable storage.
• Q: What interfaces are supported? A: It features a 12Gb/s SAS interface with SATA/600 compatibility, and uses a single Mini-SAS HD (SFF8644) host connection for streamlined external integration.
• Q: Is the enclosure hot-swappable? A: Yes, the design accommodates external drive trays intended for hot-swapping, allowing drives to be added or replaced without powering down the enclosure in many configurations (subject to controller capabilities and RAID settings).
• Q: What about cooling? A: An 80mm cooling fan is incorporated to help maintain stable temperatures during intense workloads, contributing to sustained performance and drive longevity.
• Q: Can I use it with non-SAS drives? A: The enclosure supports SAS/SATA drives, so SATA drives are compatible, provided your RAID controller and operating system recognize the drives and the array configuration is valid.
• Q: What kind of environments is this enclosure best suited for? A: It is well-suited for workstations, editing suites, small-to-mid-sized data centers, backups, archiving, and any application requiring reliable external RAID storage with scalable capacity.
• Q: Do I need a specific RAID controller? A: A compatible RAID controller or host bus adapter that supports external SAS/SATA connections and the JAGE5BT4HDBL’s Mini-SAS HD interface is required to configure and manage RAID arrays.
