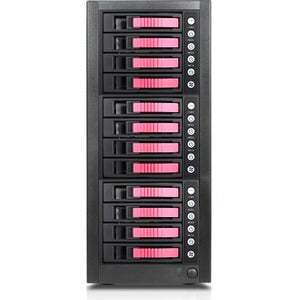

RAIDage JAGE9BT12HDRD Drive Enclosure — 12Gb/s SAS, SATA/600 External Storage Tower

The RAIDage JAGE9BT12HDRD is a purpose-built external 12-bay SAS/SATA disk array storage tower that delivers massive, scalable storage for demanding workloads. Designed for reliability and performance, this enclosure is ideal for professional environments where data integrity and rapid access to large datasets matter most. With support for high-speed 12Gb/s SAS and SATA/600 interfaces, it provides a flexible foundation for RAID configurations, enabling you to tailor storage performance and redundancy to your specific needs. The tower’s rugged build, combined with high-quality SFF8644 connectors, ensures a stable, low-latency connection to your servers or storage controllers, making it well-suited for media production, virtualization, backups, and data-center grade storage pools. Four quiet 80mm cooling fans work in concert to maintain optimal temperatures, protecting drive health during extended operation and helping you maximize uptime.

• Massive 12-bay SAS/SATA disk array designed for RAID configurations, enabling you to create striped, mirrored, or hybrid arrays that balance performance, capacity, and redundancy across complex workloads.
• 12Gb/s SAS and SATA/600 support provide fast data transfer rates while maintaining broad drive compatibility, allowing you to mix enterprise-grade SAS drives with cost-effective SATA options to optimize storage tiers.
• Mini-SAS HD host interface with high-quality SFF8644 connectors delivers a dependable, high-bandwidth link between your host system and the disk array, minimizing bottlenecks in data-intensive environments.
• External tower design offers scalable expansion while keeping drives accessible and neatly organized, making it easy to manage large libraries of files, virtual disks, or backup datasets in busy labs or data centers.
• Quiet operation and robust cooling: four 80mm fans provide steady airflow to maintain drive health and consistent performance during long-running tasks, reducing thermal throttling and noise in office and studio settings.

Technical Details of RAIDage JAGE9BT12HDRD

• Interface: 12Gb/s SAS, SATA/600 — supports high-speed data transfer for demanding workloads and flexible drive configurations.
• Host Interface: Mini-SAS HD — ensures a compact, robust connection to your server or RAID controller with reliable signaling for enterprise use.
• Bays: 12 — accommodates a large pool of SAS/SATA drives to maximize capacity and enable diverse RAID layouts.
• Form Factor: External tower — designed for easy integration into data centers, server rooms, or editing suites where space and accessibility matter.
• Color: Black with red accents — a durable chassis presentation that fits professional environments and signals a premium, enterprise-grade build.
• Connectors: SFF8644 — high-quality connectors chosen for reliability and performance in fast storage deployments.
• Cooling: Four 80mm fans — optimized airflow supports sustained workloads and helps extend drive longevity by maintaining stable temperatures.

how to install RAIDage JAGE9BT12HDRD

• Power down your host system and the enclosure before making any connections to ensure safe installation.
• Place the enclosure on a stable surface in a well-ventilated area to maximize airflow around the cooling fans and drive bays.
• Connect the enclosure to your server or RAID controller using the Mini-SAS HD cable supplied with the unit, inserting it firmly into the SFF8644-compatible ports to guarantee a solid link.
• Install or populate the 12 drive bays with SAS or SATA drives that match your intended RAID configurations, ensuring drives are properly seated and secured in each slot.
• Power on the enclosure and configure your selected RAID levels through your controller’s management interface. Initialize the arrays as needed and verify drive health, parity, and hot-spare settings according to your data protection requirements.
• Monitor the system for any warning indicators and confirm that the cooling fans are operating quietly and effectively, maintaining steady temperatures across all drives for reliable long-term performance.

Frequently asked questions

• Q: What drives are supported by this enclosure?
  A: The JAGE9BT12HDRD supports SAS and SATA drives in a 12-bay external configuration, enabling flexible RAID setups and storage tiering at scale.
• Q: What interfaces and connectors are used?
  A: It uses a 12Gb/s SAS and SATA/600 interface with a Mini-SAS HD host connection and SFF8644 connectors for a stable, high-bandwidth link to your server or controller.
• Q: How many fans does it have and how does cooling work?
  A: The enclosure includes four quiet 80mm cooling fans that provide robust airflow, helping to maintain drive health and prevent thermal throttling during sustained operation.
• Q: Is this enclosure suitable for data centers or broadcast environments?
  A: Yes. Its external tower form factor, large drive capacity, and enterprise-grade interfaces make it well-suited for data centers, media production facilities, virtualization hosts, and backup infrastructure needing scalable, reliable storage.
• Q: How do I configure storage once installed?
  A: After physically installing drives and connecting to your host, use your RAID controller’s management software to create and initialize RAID arrays, assign arrays to LUNs or volumes, and monitor drive health and performance.
