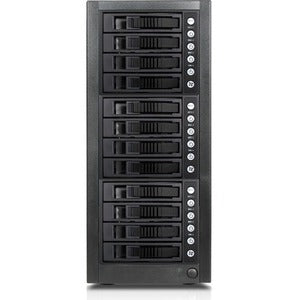

RAIDage JAGE9BT12MSBK Drive Enclosure

Discover expansive, enterprise-grade storage with the RAIDage JAGE9BT12MSBK. This external 12-bay SAS/SATA drive enclosure is engineered for professionals who demand massive capacity, flexible RAID configurations, and reliable performance in a compact tower form factor. Built to support 12Gb/s SAS and SATA/600 data paths, it delivers fast, consistent transfers across all drives while keeping power and space efficiency in mind. The JAGE9BT12MSBK uses a high-density Mini-SAS HD host interface with SFF8644 connectors, offering a streamlined connection to servers and storage controllers without sacrificing throughput. Four quiet 80mm cooling fans work in concert to maintain optimal temperatures, enabling sustained workloads, long drive life, and minimal thermal throttling. With hot-swappable drive bays and a robust black enclosure, this storage tower is ideal for data centers, IT departments, post-production studios, virtualization environments, and any setup that requires scalable, RAID-ready external storage.

• 12-bay external SAS/SATA drive enclosure for scalable storage expansion and flexible RAID configurations.
• Supports 12Gb/s SAS and SATA/600 data paths for high-speed, reliable transfers across all installed drives.
• Mini-SAS HD host interface with SFF8644 connectors for a compact, high-density connection to servers and storage arrays.
• Four quiet 80mm cooling fans provide efficient thermal management, protecting drive health during sustained workloads.
• Durable black tower enclosure with hot-swappable drive bays designed for easy maintenance, upgrades, and long-term reliability.

Technical Details of RAIDage JAGE9BT12MSBK

• Model: RAIDage JAGE9BT12MSBK
• Type: External 12-bay SAS/SATA drive enclosure (tower)
• Drive Bays: 12 external bays for SAS/SATA drives
• Interface: 12Gb/s SAS and SATA/600 data paths
• Host Interface: Mini-SAS HD with SFF8644 connectors
• Backplane: 12-bay backplane compatible with SAS/SATA drives
• Cooling: 4 x 80mm cooling fans for efficient thermal management
• Construction: Black enclosure with robust build for server rooms and offices
• Drive Tray Type: Hot-swappable drive trays for easy maintenance
• RAID Readiness: Supports RAID configurations via compatible controllers and software
• Form Factor: External tower, suitable for workspace desks, server rooms, or data-center floors

how to install RAIDage JAGE9BT12MSBK

• Prepare the installation area: ensure adequate ventilation, stable power, and a clean workspace. Verify that your host server or storage controller supports the enclosure’s Mini-SAS HD connection.
• Install drives: insert SAS/SATA drives into the 12 hot-swappable bays using the provided trays, ensuring proper seating in the backplane. Leave enough room for airflow around the enclosure.
• Connect the enclosure to the host: attach a Mini-SAS HD cable (SFF8644) from the server’s PCIe/SAS controller or storage array to the enclosure’s host port. Confirm secure, EMI-conscious cabling to minimize interference.
• Power up and configure: connect the enclosure to power, power on both the host and the enclosure, and access your controller’s management interface. Configure RAID levels, initialize disks, and create the desired volumes or arrays.
• Firmware and health checks: check for available firmware updates for both the enclosure and the host controller, apply recommended settings, and monitor drive temperatures and fan operation to maintain optimal performance and reliability.
• Format and mount: format the created volumes on the host operating system, assign drive letters or mount points, and implement data protection strategies such as backups, snapshots, or replication as required.

Frequently asked questions

• What capacity does the RAIDage JAGE9BT12MSBK support?
  The enclosure provides 12 drive bays to accommodate SAS/SATA drives; total capacity depends on the number and size of installed drives and the chosen RAID configuration.
• What interfaces are supported?
  It supports 12Gb/s SAS and SATA/600 data paths with a Mini-SAS HD host interface (SFF8644).
• Is the enclosure hot-swappable?
  Yes, the 12 drive bays are designed for hot-swapping, enabling drive replacement without powering down the system.
• How many cooling fans are included and why?
  Four 80mm cooling fans provide effective thermal management for sustained workloads and longer drive life.
• Can this enclosure be used with standard RAID controllers?
  Yes, the enclosure is RAID-ready and works with compatible host controllers and software to implement standard RAID configurations.
