Raritan Masterconsole Digital Dual 1 User 4Port Dualmonitor

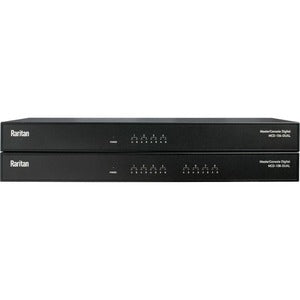

Meet the Raritan MasterConsole Digital Dual (MCD-DUAL) — a next-generation, single-user, dual-monitor KVM switch that centralizes control of multiple dual-head servers and PCs from one ergonomic console. Engineered for data centers, server rooms, and professional IT workstations, this compact Cat5-based solution delivers seamless video sharing, reliable switching, and scalable cabling to streamline administration. With the MCD-DUAL, IT teams can monitor, troubleshoot, and manage diverse infrastructures from a single, consolidated interface, reducing downtime and accelerating incident response while maintaining clean rack environments.

• Single-console control for multiple dual-head systems: Manage several dual-monitor PCs and servers from one ergonomic control surface. The MCD-DUAL consolidates keyboard, video, and mouse (KVM) access so operators can rapidly switch between devices without leaving their chair, boosting productivity in busy data centers and labs.
• Dual-monitor support for increased productivity: Each connected device can drive two displays, enabling operators to view dashboards, logs, and diagnostic tools side-by-side. Dual-monitor capability minimizes window switching, helping IT staff correlate data across applications, compare configurations, and troubleshoot in real time.
• Cat5-based KVM switching for flexible installations: The MasterConsole Digital Dual uses Cat5 (or similar twisted-pair) cabling to deliver KVM signals, offering a compact, scalable solution that reduces cable clutter in rack rows and data centers. Long cable runs are supported, making it easier to deploy and reorganize as your infrastructure evolves.
• Enterprise-grade reliability for 24/7 operations: Built to withstand continuous operation in demanding environments, the MCD-DUAL delivers consistent performance, stable switching, and long-term resilience. It integrates smoothly with existing KVM infrastructure and supports rapid adaptation to changing management needs without sacrificing uptime.
• Flexible access methods for diverse environments: Operators can switch between connected dual-head devices using front-panel controls, hot-key commands, or remote management interfaces. This versatility enables deployment across data centers, test labs, and hybrid environments while maintaining tight control over who can access critical systems.

Technical Details of Raritan MasterConsole Digital Dual

• Model: MCD-DUAL — MasterConsole Digital Dual
• User capacity: 1 user
• Ports: 4-Port Dual-Head KVM switching
• Video support: Dual-monitor outputs per connected device (dual-head capability)
• Connectivity: Cat5-based KVM signals for scalable, low-clutter installations
• Management options: Front-panel controls, hot-key commands, and remote management interface
• Compatibility: Designed to integrate with the MasterConsole Digital family and existing KVM ecosystems
• Power information: Power requirements are not specified in the available data

How to install Raritan MasterConsole Digital Dual

• Plan placement in your data center or lab by selecting a rack-friendly location for the MasterConsole Digital Dual and its associated devices. Ensure there is ample space for dual monitors and comfortable access to the console.
• Connect each dual-head device to the 4 KVM ports on the MCD-DUAL using appropriate dual-monitor video connections and USB connections for keyboard/mouse emulation. Use your organization’s standard video formats (e.g., HDMI, DisplayPort, or VGA) as dictated by each host, and pair with corresponding USB or PS/2 interfaces as required.
• Attach the console’s keyboard, video, and mouse to the MasterConsole Digital Dual unit, ensuring stable and secure connections for reliable input and display transfer.
• Run Cat5 (or compatible twisted-pair) cables from each device’s KVM interface to the corresponding KVM ports on the MCD-DUAL. Keep runs tidy using cable management rails or ties to minimize clutter and reduce interference.
• Power on the MasterConsole Digital Dual and the connected host devices. Access the console via the front-panel controls, use hot-key commands, or engage the remote management interface to verify that each dual-head device is recognized and reachable from the single console.
• Configure any required hot-key mappings, remote management permissions, and device labels to simplify operation. Test switching between hosts to confirm smooth transitions, and customize display layouts so both monitors show the most relevant information for each task.

Frequently asked questions

• What is the Raritan MasterConsole Digital Dual? It is a single-user, dual-monitor KVM switch that consolidates control of multiple dual-head servers and PCs from one console. It uses Cat5-based KVM signaling to reduce cabling while enabling efficient multi-host management in data centers and labs.
• How many devices can I control with the MCD-DUAL? The unit supports four KVM ports for dual-head devices, allowing control of up to four hosts from one console, each capable of driving two displays.
• Does it support dual-monitor per device? Yes. Each connected host can drive two displays, providing enhanced visibility for dashboards, logs, and diagnostics.
• What type of cabling does it use? It relies on Cat5 (or similar twisted-pair) cabling to carry KVM signals, which reduces cable clutter and supports longer cable runs between the console and hosts.
• How do I switch between devices? You can switch using front-panel controls, hot-key commands, or the remote management interface, giving you flexible options for different workflows and environments.
