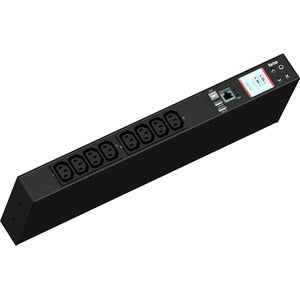

Raritan PX3 14-Outlets PDU — Monitored, 1U Horizontal Rack-Mount Power Distribution

The Raritan PX3 14-Outlets PDU is a compact, high-efficiency power distribution unit designed for data centers, server rooms, and enterprise IT closets. This monitored PDU delivers reliable, scalable power to multiple servers and networking devices while giving you real-time visibility into load conditions. With a 1U, horizontal rack-mount form factor and a NEMA L6-20P input, it provides robust 230 V power distribution for densely populated racks. The PX3 helps you balance server loads, prevent input-source overloads, and keep critical equipment running smoothly through proactive monitoring and alerting.

• Monitored power distribution with real-time insights: The PX3 provides continuous monitoring of total power draw and key electrical parameters, enabling proactive management and alerting to prevent overloads before they impact uptime.
• 14 outlets for maximum rack density: This PDU features a total of 14 outlets, including 8 IEC 60320 C13 sockets for servers and other IT equipment, plus 6 additional 230 V outlets to support diverse devices in a compact 1U form factor.
• NEMA L6-20P input for robust 230 V power: The PX3 is designed for 230 V operation with a NEMA L6-20P power input, delivering reliable power delivery to multiple devices while meeting professional data-center standards.
• 1U, horizontal rack-mount design: Built to fit standard 19-inch racks, the PX3 occupies just 1U of vertical space and mounts horizontally for easy cable management and airflow in densely populated racks.
• Remote monitoring and management: Equipped with an RJ-45 network port, the PX3 enables remote monitoring, alerting, and configuration via a web interface or management software, helping you respond quickly to power events and optimize utilization across the rack.

Technical Details of Raritan PX3 14-Outlets PDU

• Product type: Monitored PDU
• Outlets: 14 total (8 x IEC 60320 C13 sockets + 6 additional 230 V outlets)
• Input power: NEMA L6-20P, 230 VAC
• Form factor: 1U height, horizontal rack-mountable
• Mounting: 19-inch rack-compatible, horizontal configuration
• Networking: RJ-45 Ethernet port for remote monitoring and management
• Monitoring features: Real-time load data and alerting to help prevent overloads and optimize server power distribution
• Applications: Data centers, server rooms, enterprise IT closets requiring reliable, monitored power distribution and load balancing

How to Install Raritan PX3 14-Outlets PDU

Installing the RX3 PDU is straightforward and designed to minimize downtime. Begin by preparing a standard 19-inch equipment rack and ensuring adequate clearance for airflow around the unit. Follow these steps to get up and running quickly:

• Mount the PDU in your rack: Slide the PX3 into an available 1U space and secure it with mounting hardware appropriate for your rack rails. Ensure the unit sits level and cable access is unobstructed for neat, efficient cabling.
• Connect the input power: Plug the NEMA L6-20P power cord into a 230 V power source that can supply the required current. Route the cord to minimize bending and avoid pinching cables.
• Place devices on outlets: Distribute servers, storage, and networking gear across the 8 C13 outlets and the 6 additional 230 V outlets, balancing the load to prevent hotspots and ensuring critical devices have dedicated power as needed.
• Connect network monitoring: Attach an Ethernet cable to the RJ-45 port and connect the PDU to your network. This enables remote monitoring, alerting, and configuration through your preferred management solution or web interface.
• Configure monitoring and alerts: Access the PDU’s management interface to set alert thresholds, enable notifications, and customize reporting. Define power limits for groups of outlets if supported, and ensure alerts are routed to on-call staff or a centralized monitoring platform.
• Test and validate: Power on connected equipment and verify that the PDU reports accurate load data. Check that alerts trigger as configured and that you can access the PDU remotely for ongoing management.

Frequently asked questions

• Q: What is the PX3 14-Outlets PDU used for? A: It distributes AC power to multiple servers and IT devices while providing monitoring and alerting to prevent overloads and downtime in data centers or server rooms.
• Q: What outlets does it have? A: It provides 14 outlets in total, including 8 IEC 60320 C13 sockets and 6 additional 230 V outlets to support a variety of devices in a compact 1U rack-mount form factor.
• Q: What input plug does it use? A: The PX3 uses a NEMA L6-20P input for 230 V operation, suitable for professional data-center power distribution environments.
• Q: Can it be mounted in a standard rack? A: Yes. The PX3 is a 1U, horizontal rack-mountable PDU designed for standard 19-inch racks, making it easy to integrate into existing rack setups.
• Q: How do I monitor and manage the PX3?
A: The PX3 includes a network port (RJ-45) for remote monitoring and management. You can configure and monitor power usage via the PDU’s web interface or compatible management software, setting alerts and reviewing load information to optimize energy efficiency and uptime.

With its compact 1U footprint, robust 230 V input, and 14-outlet distribution, the Raritan PX3 14-Outlets PDU is a reliable choice for organizations seeking enhanced visibility into power usage and proactive management of critical IT equipment. Its monitored design helps prevent nuisance overloads and ensures consistent server performance by enabling precise load balancing across sockets and devices. The PX3’s combination of a familiar 19-inch rack profile, easy installation, and remote monitoring capabilities makes it a practical upgrade for modern data centers and growing IT environments where uptime and energy efficiency matter most.
