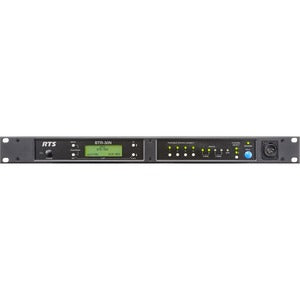

RTS Narrow Band 2-channel vhf/uhf Synthesized Wireless Intercom System

The RTS BTR-30N Narrow Band 2-Channel VHF/UHF Synthesized Wireless Intercom System is engineered for professional productions where clear, reliable communication matters most. In today’s ever-changing RF landscape, this compact, robust intercom solution delivers precise audio, efficient spectrum use, and flexible operation across both VHF and UHF bands. With a tight 25 kHz modulated bandwidth, the BTR-30N maximizes the number of users per channel while maintaining crisp dialogue and low noise, making it an ideal choice for theaters, broadcast studios, live events, and industrial environments that demand dependable team coordination.

• Two-channel convenience: Manage multiple independent talk paths with ease. The BTR-30N supports two simultaneous channels, letting crews coordinate on complex scenes, camera movements, or stage cues without cross-talk or interference.
• Narrow-band efficiency: The 25 kHz modulation bandwidth is purpose-built to optimize spectrum use. This narrow-band approach enables more devices to share the same RF environment while preserving intelligibility and reliability for critical intercom communications.
• VHF/UHF versatility: Designed to thrive in diverse venues, the system operates across both VHF and UHF bands. This flexibility provides better penetration, range, and resistance to ambient interference, so productions can adapt to venue-specific RF landscapes.
• Synthesized precision: A digitally synthesized architecture ensures stable frequency control, predictable operation, and quick, clean channel selection. Operators enjoy fast setup and consistent performance across sessions, even in dynamic environments.
• Professional-grade build for demanding workflows: The BTR-30N is engineered to withstand the rigors of on-location shoots and busy theaters. Its compact form-factor, robust construction, and intuitive controls are designed to keep crews focused on the task at hand rather than wrestling with gear.

Technical Details of RTS Narrow Band 2-channel vhf/uhf Synthesized Wireless Intercom System

• Channels: 2-channel intercom solution for simultaneous, independent conversations among crew members.
• Band support: VHF and UHF operation, enabling flexible deployment across diverse venues and RF environments.
• Modulation bandwidth: 25 kHz narrow-band modulation to maximize per-channel user capacity and reduce spectral congestion.
• Synthesized RF control: Digital frequency control ensures stable, repeatable channel selection with minimal drift.
• Intercom architecture: Wireless intercom system designed for reliability in live productions, studios, and field operations.
• Compatibility: Integrates with RTS ecosystem and standard intercom accessories, facilitating scalable setups from small crews to large teams.
• Form factor and durability: Compact, rugged design optimized for frequent use, quick setup, and transport between locations.

how to install RTS Narrow Band 2-channel vhf/uhf Synthesized Wireless Intercom System

Installing the RTS BTR-30N involves careful planning of your RF layout, straightforward hardware setup, and a quick configuration pass to ensure clear, reliable communications throughout your venue. Follow these practical steps to get up and running efficiently:

1) Plan your frequencies and channels. Determine two distinct channels for the intercom flow and note the assigned frequencies within permitted regulatory guidelines for your region. A well-planned channel map minimizes interference from other wireless devices and helps maintain clean audio paths for your production crew.

2) Unpack and inspect the system. Check all components for shipping damage, and verify you have the base unit, wireless beltpacks or handheld units, power supplies, and any required antennas or adapters. If any item is missing or damaged, contact your RTS representative before proceeding.

3) Mount and position components. Place the base unit in a central, protected location with clear lines of sight to beltpack receivers or handheld units. Install antennas per the manufacturer’s guidance to maximize coverage, and route cables neatly to minimize trip hazards and signal interference.

4) Connect power and integration points. Power the base station and ensure any necessary connections to the production matrix, control room intercom, or external signaling devices are established. Confirm that all devices are on the correct channels and that audible alerts or indicators reflect the intended configuration.

5) Configure channels and IDs. Use the system’s control interface to assign channel numbers, label each channel (for example, “Stage,” “Camera,” or “Audio” as appropriate), and synchronize all beltpacks or wireless receivers to the base station. Verify that each unit can transmit and receive clearly on its assigned channel.

6) Perform a thorough test. Conduct a full walk-through with a technician and end-users: test transmit and receive on both channels, check for audio clarity, latency, and any potential dropouts. If interference is detected, adjust frequencies, antenna placement, or channel assignments and re-test until the signal path remains solid under live conditions.

7) Establish best practices and safety considerations. Create a simple operating protocol: when to talk, when to listen, and how to handle emergency or priority calls. Maintain a spare beltpack or handheld unit on site to mitigate interruptions during power issues or equipment faults.

8) Document the setup. Record channel mappings, device serials, firmware versions, and any custom presets. Documentation expedites future upgrades, relocations, or repairs and helps ensure consistent performance across productions or events.

9) Ongoing maintenance and optimization. Periodically inspect cables, connecters, antennas, and power supplies. Revisit channel assignments at the start of each new event or shoot to adapt to any venue RF changes and to preserve peak intercom performance.

Following these steps will help you maximize the RTS BTR-30N’s performance. The system’s design emphasizes quick deployment, dependable operation, and straightforward integration with other RTS components, making it an excellent foundation for scalable intercom workflows. Whether you’re coordinating a theater production, a live broadcast, or a large-scale event, the BTR-30N provides the clarity and reliability your crew needs to stay in sync.

Frequently asked questions

• What is the RTS BTR-30N best for? The BTR-30N is designed for professional intercom communications in theaters, broadcast studios, live events, and industrial settings where two-channel, narrow-band wireless reliability is essential for coordinating crews and assets on the move.
• Which frequencies does it support? It operates across VHF and UHF bands and uses synthesized control for precise channel selection. Specific frequency ranges are selected during setup to fit the venue’s RF landscape and regulatory guidelines.
• How many channels are available? It provides two independent channels, allowing simultaneous conversations without cross-talk or interference between dialogue streams.
• Is it compatible with other RTS equipment? Yes. The BTR-30N is designed to integrate with RTS ecosystems and accessories, enabling scalable configurations from small crews to larger, multi-zone intercom networks.
• What setup considerations should I keep in mind? Plan your RF layout to minimize interference, assign clear channel labels, and perform a comprehensive on-site test before going live. Regular maintenance and documentation ensure long-term reliability.
