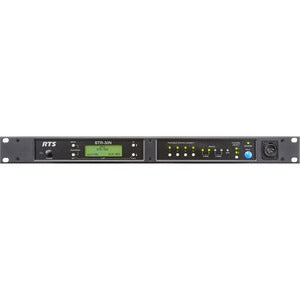

RTS Narrow Band 2-Channel VHF/UHF Synthesized Wireless Intercom System

The RTS BTR-30N Narrow Band 2-Channel VHF/UHF Synthesized Wireless Intercom System is engineered for professionals who demand crystal-clear communication in challenging RF environments. Built to thrive where space is at a premium and RF real estate is fiercely contested, this compact intercom solution delivers reliable, high-quality staff communication across live venues, broadcast studios, theaters, houses of worship, and event production sites. With a focused 25 kHz modulated bandwidth, the BTR-30N maximizes channel efficiency, enabling more users per channel and reducing the need for multiple frequencies while maintaining dependable audio clarity and operational simplicity.

• 25 kHz narrow-band bandwidth: Optimized for dense RF environments, this tight channel width increases user capacity per channel while preserving clean, intelligible audio for quick, accurate intercom dialogue on busy productions.
• Two-channel capability: Support for two independent conversation paths lets production teams segment critical communications—for example, one channel for stage management and lighting cues, and a second channel for technical crew and follow-spot operations—without cross-talk.
• VHF/UHF versatility: Flexible deployment across venues of all sizes. The system can be configured to operate in commonly used VHF and UHF bands, ensuring robust performance and minimal interference in diverse environments.
• Synthesized wireless reliability: Precise synthesized frequency control helps maintain stable links, reducing drift and noise, so crew members stay in sync even in crowded RF spectrums and during peak operational periods.
• Professional-grade durability and integration: Built for demanding productions, the BTR-30N integrates seamlessly with RTS beltpack hardware and RTS matrix ecosystems, supporting reliable handoffs, priority signaling, and easy system expansion as your needs evolve.

Technical Details of RTS Narrow Band 2-channel VHF/UHF Synthesized Wireless Intercom System

• Modulated bandwidth: 25 kHz for efficient use of limited spectrum and higher user density per channel.
• Channels: 2-channel intercom capability to support separate production teams or workflow streams.
• Frequency range: Operates across VHF and UHF bands to suit a wide range of regional RF environments and venue requirements.
• Synthesized frequency control: Ensures stable channel locking and reduced drift for dependable communication during long shows or multi-day events.
• Interoperability: Designed to integrate with RTS beltpacks, base units, and RTS-compatible production communications ecosystems for scalable setup and expansion without sacrificing performance.

how to install RTS Narrow Band 2-channel VHF/UHF Synthesized Wireless Intercom System

Installing the RTS BTR-30N is straightforward for experienced production technicians. Begin with a clear plan that maps out how two channels will serve your crew, which beltpacks will be deployed, and how the base station will be wired into your power and control infrastructure. Follow these general steps to ensure quick setup and reliable operation:

• Unpack and inventory the system components. Confirm you have the base station, power adapters, antennas, beltpacks, and any required cables or mounting hardware.
• Mount the base station in a secure, accessible location with clean airflow. Ensure the unit is within reach of power and not exposed to excessive dust or moisture.
• Connect power and, if applicable, an external control or audio interface according to the RTS installation guide. Secure all cables to prevent accidental disconnections during performances.
• Configure the operating frequencies for the two channels. Use the system’s synthesized controls to select appropriate VHF/UHF bands, ensuring channels are clear of local interference and compatible with your beltpack settings.
• Pair beltpacks with the base system. Follow pairing procedures to link each beltpack to its designated channel, verifying that each handheld or bodypack unit receives clear audio with minimal latency.
• Test intercom paths. Conduct a full walk-through with the production team to verify channel assignments, push-to-talk functionality, and listening levels on all belts. Check for cross-talk and adjust squelch or gain as needed.
• Enable priority and signaling features if your production requires them. Configure any required call features, alert tones, or emergency signaling to ensure critical communications take precedence when needed.
• Document the setup. Record channel assignments, beltpack IDs, and any required configuration notes for future rehearsals or show days to streamline re-setup.
• Perform a field check under real production conditions. Run a tech rehearsal to ensure performance remains consistent with room acoustics, stage layouts, and RF conditions, making adjustments as necessary.

Tips for best results:

• Keep base station and beltpack antennas oriented for optimal range and minimal dead zones; avoid placing equipment near solid metal fixtures that can detune signals.
• Schedule periodic maintenance checks to confirm battery health, connector integrity, and firmware updates if available from RTS.
• Document channel usage during events to prevent overlap with additional wireless gear on-site, helping to maintain clear intercom paths throughout productions.
• Train crew members on channel etiquette and priority signaling to maximize communication efficiency and minimize interruptions during critical moments.

Frequently asked questions

• What does 25 kHz narrow-band mean for my production? It signifies a tighter channel width designed to increase the number of users per channel while preserving clear, intelligible audio. This is especially valuable in venues where RF space is crowded or spectrum management is essential.
• How many channels does the RTS BTR-30N support? The system is a two-channel intercom, allowing two independent conversation paths simultaneously. This is ideal for separating key production teams while maintaining a unified communications backbone.
• Can I use RTS beltpacks with the BTR-30N? Yes. The BTR-30N is designed to integrate with RTS beltpacks and RTS-compatible matrices, enabling a cohesive pro-grade communication network across your facility or venue.
• Is the BTR-30N suitable for large venues or outdoor events? Absolutely. Its VHF/UHF operation and synthesized control are intended to deliver reliable performance across diverse environments, from theatres and arenas to outdoor staging areas, provided RF planning and antenna placement are properly managed.
• Where can I find full specifications and firmware updates? Verification of exact specifications, supported accessories, and firmware updates should be obtained from official RTS documentation or the RTS/RSI catalog pages, as well as the retailer’s product listing. Always refer to the latest RTS manuals for precise setup instructions and compatibility notes.
