SEAMLESS Kitted+ Series for Samsung IAB Models
The SEAMLESS Kitted+ Series for Samsung IAB Models is a versatile, modular substructure system engineered to support dvLED installations where direct wall mounting isn’t feasible. As an adaptable extension of the SEAMLESS Kitted dvLED Mounting System, the Kitted+ Series empowers integrators to deploy high-performance video walls in a wide range of environments—broadcast studios, control rooms, corporate lobbies, digital signage venues, and immersive experiential spaces. Built to maximize stability, alignment accuracy, and serviceability, these substructures distribute weight evenly, simplify assembly, and maintain a clean, professional aesthetic with integrated cable channels and low-profile hardware. By seamlessly integrating with the existing SEAMLESS Kitted framework, the Kitted+ Series enables scalable, future-proof deployments and rapid on-site upgrades without compromising image continuity or seam integrity across large panel grids. In short, it’s a robust, installation-friendly foundation for Samsung IAB dvLED panels that adapts to your space and evolves with your display requirements.

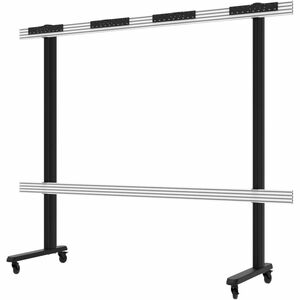

- Versatile substructure configurations: The Kitted+ system provides three primary deployment options to suit any venue: Free Standing, Mobile Trolley, and Bolt Down. Free Standing frames offer a stable, wall-agnostic footprint ideal for temporary installations or spaces where wall mounting is restricted. Mobile Trolley configurations pair mobility with rigidity, letting you relocate the video wall within a venue while preserving precise panel alignment during movement. Bolt Down configurations anchor directly to the floor to deliver maximum stability for high-traffic or permanently installed installations. Together, these options enable you to deploy Samsung IAB dvLED panels in virtually any environment, from curved showroom walls to fixed control rooms, without compromising performance or alignment.
- Precision alignment and leveling: Each Kitted+ configuration includes alignment aids and micro-adjustment capabilities to ensure perfect seams and level panels across the entire display. Integrated leveling feet, shims, and adjustable rails allow compensation for uneven floors and panel tolerances, reducing the need for iterative re-positioning. Clear visual indicators and captive fasteners streamline on-site leveling, while modular rails and connectors preserve consistent pitch and gap spacing across multi-row deployments. Comprehensive cable management channels route power and data discreetly, preventing cable clutter that could affect performance or aesthetics.
- Rugged, durable build for demanding environments: The Kitted+ substructures are crafted from engineering-grade aluminum with reinforced corners and corrosion-resistant finishes. This combination delivers a light yet rigid frame that resists flex under dynamic load scenarios and during maintenance cycles. The black powder-coated finish minimizes glare and stands up to busy, high-traffic settings while maintaining a sleek, professional appearance. High-strength fasteners and reusable modular joints simplify reconfiguration, reduce field wear, and extend the life of your mounting system even with repeated installations or adjustments.
- Samsung IAB compatibility and secure mounting: The substructures are tailored to support Samsung IAB dvLED modules with standard mounting patterns, ensuring a precise, vibration-free attachment. Captive screws and robust mounting rails enable secure panel attachment while allowing quick disassembly for service or upgrades. The design also emphasizes thermal and cable management optimization, helping maintain panel performance and longevity in intense operating environments where brightness and heat output are high.
- Modular integration with the SEAMLESS Kitted ecosystem: The Kitted+ Series is designed to integrate seamlessly with the broader SEAMLESS Kitted dvLED mounting system. This provides a clean upgrade path and scalable architecture for expanding from smaller configurations to expansive video walls. The modular nature of the components means you can expand, reconfigure, or convert configurations (e.g., from free-standing to bolt-down) without replacing the core mounting framework. This synergy minimizes downtime, protects your initial investment, and preserves seam consistency across evolving display layouts.
Technical Details of SEAMLESS Kitted+ Series for Samsung IAB Models
- Product type: dvLED mounting substructure (Kitted+ Series)
- Series: SEAMLESS Kitted+ Series
- Application: Substructure for Samsung IAB dvLED panels
- Compatibility: Samsung IAB dvLED models that follow standard mounting patterns
- Substructure configurations: Free Standing, Mobile Trolley, Bolt Down
- Material: Anodized aluminum frame with steel hardware
- Finish: Black powder coat for durability and reduced glare
- Mounting pattern support: Standard Samsung IAB mounting patterns and industry-standard dvLED rails
- Weight and load characteristics: Configurable by configuration; weight varies with selected options and panel count
- Assembly and connectivity: Modular components with quick-connect fittings and integrated cable channels
How to install SEAMLESS Kitted+ Series
- Step 1 — Prepare the installation site: Verify floor levelness, clear access paths for panel placement, and confirm power and data routes follow local code requirements. Ensure the space accommodates future maintenance and cleaning access around the video wall.
- Step 2 — Choose the configuration: Decide between Free Standing, Mobile Trolley, or Bolt Down based on the venue, permanence of the installation, and mobility needs. Gather the corresponding substructure components and verify you have the correct hardware kit for Samsung IAB modules.
- Step 3 — Assemble the base framework: Build the selected substructure on a clean surface, following the included hardware diagrams. For Bolt Down configurations, identify appropriate floor anchors and secure the base to the concrete or structural floor per the anchor kit instructions; for Free Standing, install leveling feet and ensure frame is plumb; for Mobile Trolley, attach the locking caster assemblies as directed.
- Step 4 — Mount the dvLED panels: Align Samsung IAB panels with the substructure mounting rails, using the standard mounting pattern. Attach panels securely with captive screws or fasteners provided in the kit. Confirm panel-to-panel alignment across the entire wall and verify that edge seams are consistent and tight.
- Step 5 — Level and align across the grid: Use the integrated leveling features to achieve uniform plane across all panels. Check vertical and horizontal plumb across the wall, adjusting the micro-leveling feet and shims as needed to maintain a flat, gap-free surface.
- Step 6 — Route cables and finalize: Route power, data, and signal cables through the built-in channels. Secure all cables to prevent movement during operation or maintenance. Power up the system and perform a basic functional check to ensure all panels respond correctly and that seam alignment remains consistent.
- Step 7 — Commission and tune: Calibrate color matching and brightness across the video wall, verify uniformity, and run a stress-test to ensure structural integrity during operation. Document any adjustments for future reference and maintenance schedules.
Frequently asked questions
- Q: What configurations are available in the SEAMLESS Kitted+ Series? A: The system supports Free Standing, Mobile Trolley, and Bolt Down configurations to match floor-based installations, relocation needs, or permanent floor anchoring where wall mounting isn’t feasible.
- Q: Is SEAMLESS Kitted+ compatible with all Samsung IAB dvLED modules? A: It is designed to accommodate Samsung IAB modules that follow standard mounting patterns; always verify compatibility with your exact SKU or UPC by consulting the technical specifications for your panels.
- Q: How long does installation typically take? A: Installation time depends on configuration, wall size, and crew experience. A small, single-panel setup can be completed in a few hours, while larger, multi-row installations may take a full day or more, including commissioning and calibration.
- Q: Can I reconfigure the system after installation? A: Yes. The modular, scalable nature of the SEAMLESS Kitted+ Series allows you to reconfigure from free-standing to bolt-down, expand to larger grids, or shift layouts as display needs evolve, without replacing the entire mounting framework.
- Q: What maintenance is required? A: Regular checks should include fastener torque verification, inspection of rails and joints for wear, cleaning of surfaces and cable channels, and periodic recalibration to maintain seam alignment and plane accuracy as the display loads change over time.
