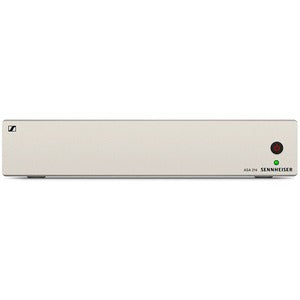

Sennheiser ASA 214 Splitter – Active Antenna Splitter for EW Series

The ASA 214 active antenna splitter is a professional-grade distribution hub designed for Sennheiser EW wireless systems. Constructed with a robust full metal housing, it delivers reliable RF distribution to multiple receivers from just two antennas, making it ideal for stages, broadcast studios, and venues where pristine wireless audio is non-negotiable. Included with the unit are 8 BNC cables, ensuring you have ample wiring for quick setup and flexible placement around the rig. The UHF version ships with the NT 1-1 power supply and regional adapters (EU, UK, and US), while the ASA 214-1G8 variant includes the NT 1-1 power supply, giving you a ready-to-use solution out of the box.

• Reliable multi-receiver distribution: The ASA 214 is engineered to feed up to four EW receivers from a pair of antennas, simplifying RF planning on busy stages and ensuring consistent performance across the setup. This capability is essential when deploying multiple handheld or bodypack units in live environments, where RF congestion can otherwise degrade audio quality.
• Two-input, four-output design: With two antenna inputs and four RF outputs, you gain flexible receiver placement without sacrificing signal integrity. The design minimizes coaxial runs and reduces RF drop, helping you maintain strong, clear reception even as stage layouts change or additional receivers are added for larger productions.
• Rugged, professional-grade build: A full metal housing provides exceptional durability for touring, broadcast, and venue contexts. The ASA 214 is built to withstand the rigors of live performances, providing steady performance in demanding environments where dust, vibrations, and handling are common.
• Power options built in: The UHF version includes the NT 1-1 power supply with adapters for EU, UK, and US regions, ensuring compatibility with common power layouts worldwide. The ASA 214-1G8 variant also includes the NT 1-1 power supply, offering a turnkey solution for installers and technicians who require reliable, ready-to-use power connectivity.
• Seamless EW integration: Specifically designed to complement Sennheiser EW wireless systems, the ASA 214 enhances RF management, simplifies setup, and helps maximize system performance. It integrates smoothly with existing EW components, enabling quick configuration changes during rehearsals and performances.

Technical Details of Sennheiser ASA 214 Splitter

• Device type: Active antenna splitter for wireless microphones
• Antenna inputs: 2
• Receiver outputs: 4
• Cable connections: Includes 8 BNC cables for fast deployment
• Power supply: NT 1-1 power supply included (UHF version with EU/UK/US adapters; ASA 214-1G8 includes NT 1-1)
• Housing: Full metal chassis for rugged performance
• Compatibility: Optimized for Sennheiser EW wireless systems

How to install Sennheiser ASA 214 Splitter

• Position the ASA 214 on a stable surface near your wireless rack, rack case, or installation area where RF management is most needed.
• Connect two antennas to the two antenna input connectors using appropriate BNC cables (or the included cables) to establish your RF source.
• Route up to four EW receivers to the four outputs using the included BNC cables or your existing cabling, distributing the RF signal across the receivers while preserving signal quality.
• Connect the NT 1-1 power supply to the ASA 214 and plug it into a suitable regional power outlet using the supplied EU, UK, or US adapters as applicable.
• Power on the unit and perform a quick RF check: verify that all receivers display signal presence, monitor levels, and confirm clean audio without interference or dropouts. Make minor antenna or cable adjustments if needed to optimize reception.

Frequently asked questions

• Q: What is the Sennheiser ASA 214 Splitter used for?

  A: It is an active antenna splitter designed to distribute RF signals from two antennas to up to four EW receivers, enabling efficient multi-receiver setups with reliable reception.

• Q: How many EW receivers can be connected?

  A: Up to four EW receivers can be fed from two antennas, making it suitable for medium-sized rigs and larger configurations where several receivers are in use.

• Q: Does it come with a power supply?

  A: Yes. The UHF version includes the NT 1-1 power supply with EU, UK, and US adapters; the ASA 214-1G8 variant also includes the NT 1-1 power supply for convenient operation.

• Q: Are the included cables sufficient for installation?

  A: The unit ships with eight BNC cables to support initial setup and flexible routing of antennas and receivers.

• Q: Is the ASA 214 compatible with other brands?

  A: The ASA 214 is designed to complement Sennheiser EW systems. While it may be usable with other components, optimal performance and guarantee of compatibility are provided within Sennheiser EW ecosystems.
