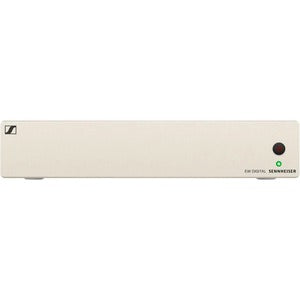

Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

SennheiserSKU: 6260738

Price:
Sale price$668.58

Description

Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

The Sennheiser EW-D ASA Active Antenna Splitter is a versatile, professional-grade accessory designed to maximize the performance and reliability of your wireless rig in live sound, broadcast, and performance environments. Engineered for the EW-D digital wireless ecosystem, this dual 1:4 antenna distribution system lets you extend coverage to multiple receivers with consistent RF quality, helping you achieve uninterrupted performance on stage, in churches, theaters, convention centers, and outdoor venues. Built to complement the ew-d smart assist app, the EW-D ASA provides intuitive control, real-time monitoring, and smart configuration workflows that streamline setup, tuning, and ongoing management of your wireless setup. With digital UHF transmission and robust signal handling, this active splitter minimizes dropouts, reduces latency-related concerns, and delivers clean, dependable audio for demanding performances and broadcasts.

  • Seamless EW-D integration and smart control: Designed to work within the Sennheiser EW-D ecosystem, the ASA actively distributes antenna signals to multiple receivers while enabling configuration and monitoring through the ew-d smart assist app. This synergy helps you optimize gain, ensure RF stability, and quickly respond to changing stage conditions without leaving the mixing position.
  • Dual 1:4 distribution for scalable wireless setups: The device supports two independent distribution paths, each capable of delivering strong RF signals to multiple receivers. This setup dramatically expands your system’s reach and reliability, allowing you to deploy more transmitters and instruments without compromising reception or clarity.
  • Robust UHF digital performance: Operating in the UHF spectrum, the EW-D ASA benefits from improved range, interference tolerance, and consistency in challenging environments—such as crowded venues, outdoor shoots, and rooms with substantial RF activity—while maintaining pristine audio quality for singing, speaking, or instrument playback.
  • Rugged, professional build with flexible mounting: Built for the road and fixed installations alike, the splitter is designed to endure demanding live-use conditions. Its compact form factor supports desktop placement or rack-mount configurations with compatible accessories, giving you practical placement options in any venue.
  • Reliability, monitoring, and ease of use: In addition to robust RF distribution, the ASA provides clear status indicators and integration with the ew-d app for monitoring signal levels, fault alerts, and quick adjustments—reducing setup time and boosting confidence during performances and rehearsals.

Technical Details of Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

  • Model: EW-D ASA Active Antenna Splitter (Dual 1:4)
  • Product type: Active antenna splitter for digital wireless systems
  • System compatibility: Optimized for the EW-D family and compatible receivers within the EW-D ecosystem
  • Distribution: Dual 1:4 antenna distribution for expanding receiver reach (two independent distribution paths)
  • Frequency band: UHF spectrum designed to maximize range and reliability in professional environments
  • Power: Requires external DC power supply for active signal boosting and stable operation
  • Controls and monitoring: Connects with the ew-d smart assist app for status, tuning, and system health checks
  • Construction: Professional-grade housing suitable for live venues, tour buses, and fixed installations
  • Mounting options: Desktop use or rack-mount setup with appropriate accessories
  • Safety and compliance: Built to meet industry standards for consumer and professional audio equipment

how to install Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

  • Power off all connected equipment before starting installation to prevent RF fluctuations and hardware damage.
  • Choose a location near your rack or mixing console with adequate ventilation and away from heat sources or moisture.
  • Connect the external DC power supply to the EW-D ASA and plug it into a reliable power source dedicated to audio gear.
  • Attach the antenna feed to the splitter’s RF input ports using high-quality coaxial cables; ensure tight, secure connections to minimize signal loss.
  • Route the RF outputs from the splitter to the receivers in your EW-D system. Use properly matched cables and label each output for easy identification during setup and troubleshooting.
  • Power on the EW-D ASA, followed by the connected receivers. Allow the system to stabilize for a few moments as internal gains normalize.
  • Open the ew-d smart assist app on your mobile device or control surface to verify signal levels, confirm healthy RF distribution, and perform any needed tuning or gain adjustments.
  • Test each channel by walking the venue with performers to check reception in all listening areas. Address any hotspots by reconfiguring outputs or relocating antennas if necessary.
  • Document your final configuration and store a backup profile within the ew-d app to simplify future setups, reconfigurations, or transport between venues.

Frequently asked questions

  • Q: What is the EW-D ASA and what problem does it solve? A: The EW-D ASA is an active antenna splitter that distributes a single antenna signal to multiple EW-D receivers, enhancing range, RF stability, and reliability in complex venue environments where multiple wireless devices operate simultaneously.
  • Q: Do I need an external power supply? A: Yes. The active antenna splitter requires a dedicated external power source to drive the amplification and maintain consistent signal quality across outputs.
  • Q: Is it compatible with all EW-D receivers? A: The ASA is designed to work with the EW-D ecosystem and is most effective when used with compatible EW-D receivers and antennas; always confirm compatibility with your specific model lineup.
  • Q: Can I mount the splitter in a standard rack? A: Yes. The unit is designed for desktop use or rack installation with optional mounting accessories, making it suitable for both mobile setups and fixed installations.
  • Q: How do I monitor performance after installation? A: Use the ew-d smart assist app to monitor signal levels, distribution health, and device status in real time, enabling quick adjustments if you encounter any RF challenges on site.
