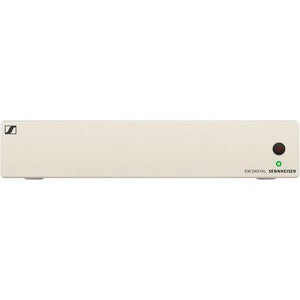

Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

Experience flawless wireless performance with the Sennheiser EW-D ASA Active Antenna Splitter. Engineered for singers, speakers, and musicians who demand pristine sound and uncompromising reliability, this versatile antenna distribution solution integrates seamlessly with the EW-D ecosystem. It enables effortless pairing and management through the ew-d Smart Assist app, delivering state-of-the-art live sound and rock-solid RF coverage across stages, studios, and houses of worship. Built for professional environments, the EW-D ASA ensures your wireless setup remains stable even in crowded RF arenas, enabling you to focus on performance rather than interference or signal dropouts.

• Efficient RF distribution to multiple receivers with dual 1:4 antenna paths, increasing range and reducing dropouts on large stages or venues.
• Seamless integration with the EW-D ecosystem, enabling quick pairing, real-time monitoring, and control via the ew-d Smart Assist app for streamlined workflow.
• Digital UHF transmission delivers robust signal stability in dynamic environments, improving vocal clarity, speech intelligibility, and instrumental fidelity during live performances.
• Rugged, professional build with a compact, rack-mountable form factor and informative indicators for signal presence, activity, and fault conditions at a glance.
• Flexible installation options that simplify complex wireless setups, supporting multiple antennas and distributing signals to a wide array of receivers without compromising aesthetics or reliability.

Technical Details of Sennheiser EW-D ASA Active Antenna Splitter (Dual 1:4)

• Configuration: Dual 1:4 antenna distribution providing two independent antenna paths to support multiple wireless receivers across different zones.
• Connectivity: Robust RF input and output connections designed for professional stage and venue environments, enabling reliable distribution and easy integration with existing EW-D gear.
• Frequency band: UHF digital transmission tailored for high-performance wireless systems, offering extended range and strong resistance to typical RF interference found on busy stages.
• Compatibility: Built to work within the Sennheiser EW-D wireless ecosystem, with compatibility that complements the ew-d smart assist app for pairing, monitoring, and management.
• Construction: Durable metal housing with a compact footprint suitable for rack installation or portable on-stage use, engineered to withstand the rigors of touring and frequent setup/teardown.

How to install Sennheiser EW-D ASA Active Antenna Splitter

Step 1: Plan your layout — Select a central, accessible location in your rack or on the stage area where RF signal paths can be kept short and free of excessive cabling. Ensure adequate ventilation and avoid placing the splitter near sources of heat or strong RF interference.

Step 2: Prepare antenna connections — Connect your primary antenna(s) to the EW-D ASA inputs using quality RF cabling. If you are supporting two antenna paths, route each path to its corresponding inputs, keeping cables organized to minimize crosstalk and reflections.

Step 3: Connect receivers — Attach the four outputs of each antenna path to the respective wireless receivers in your system. Maintain consistent cable routing to prevent accidental unplugging during performances and to keep signal paths clear for optimal performance.

Step 4: Power up — Connect the EW-D ASA to its external power supply and power on the unit. Observe the front-panel indicators; solid or blinking LEDs typically denote normal operation or the presence of a fault that may require attention.

Step 5: Configure with EW-D Smart Assist — Open the ew-d Smart Assist app and verify pairing with your EW-D devices. Use the app to monitor signal quality, adjust gain if necessary, and confirm that each receiver path receives adequate RF power without saturation.

Step 6: Test and optimize — Run a practical RF test with performers or speakers to ensure stable coverage across the venue. If you notice any dropouts or interference, experiment with antenna orientation, routing, or slight repositioning of the splitter to optimize performance.

Frequently asked questions

• Q: What is the EW-D ASA used for?

  A: It distributes RF from two antennas to multiple receivers, boosting range, reliability, and overall stability of your EW-D wireless system—ideal for stages with multiple microphones, instruments, or in-ear monitors.

• Q: Can I use it with any wireless mic or only EW-D?

  A: It is designed to work within the Sennheiser EW-D ecosystem and is optimized for use with EW-D devices and the ew-d Smart Assist app. Compatibility with other brands depends on hardware interfaces and RF requirements.

• Q: Do I need a special power supply?

  A: Yes, it requires an external power source that is compatible with the EW-D system specifications. Check the official documentation for exact voltage, connector type, and power requirements.

• Q: Is this suitable for live concerts or broadcast?

  A: Yes. The EW-D ASA is designed for professional live sound and broadcast environments where reliable RF distribution is essential for multiple wireless devices and performers.

• Q: How do I monitor status?

  A: The ew-d Smart Assist app provides real-time monitoring, pairing, and configuration for the EW-D ASA within your wireless ecosystem, making it easy to track signal quality and adjust settings on the fly.
