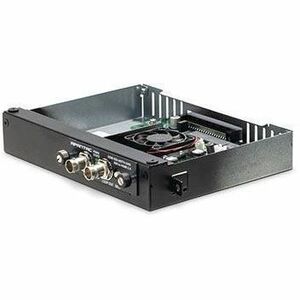

Sharp NEC Display OPS 12G SDI SDM Interface Card With Full 4K/60Hz Support

Upgrade your Sharp NEC digital signage with the OPS 12G SDI SDM Interface Card and unlock professional-grade video performance directly inside the OPS slot. Built for demanding commercial environments, this interface card delivers high-bandwidth 12G-SDI connectivity and true 4K/60Hz video capability, enabling immersive, rock-solid playback for corporate communications, retail displays, event venues, and broadcast-ready signage projects. Whether you’re delivering live feeds, cinematic advertising, or multi-screen video walls, this card keeps your content sharp, fluid, and reliable.

• 12G-SDI performance for crystal-clear video: The interface card uses the industry-standard 12G-SDI connection to carry pristine, high-bandwidth video signals. This enables robust transmission of 4K content with minimal latency and excellent signal integrity over professional-grade BNC cabling, making it ideal for signage applications that demand broadcast-grade reliability. By leveraging 12G-SDI, you can handle uncompressed 4K content and complex color pipelines with confidence, reducing artifacts and ensuring your messages look as intended across displays.
• Full 4K/60Hz support for smooth motion and detail: Experience true 4K resolution at 60 frames per second, delivering crisp text rendering, lifelike video, and smooth motion for dynamic content. This capability is perfect for digital signage that showcases cinematic videos, high-detail product demos, or multi-panel video walls where every frame matters. The card is designed to maintain color accuracy and fidelity at up to 4K/60Hz, supporting professional signage workflows that require consistent, high-quality video delivery.
• Seamless OPS integration within Sharp NEC displays: Engineered specifically for Sharp NEC Display OPS environments, this SDM interface card slots directly into compatible NEC displays. The plug-and-play design minimizes setup time and supports a clean, bezel-friendly installation. Because the card operates within the OPS ecosystem, it aligns with NEC’s intended video pipeline, reducing the need for external converters or boxes and simplifying maintenance in busy public spaces.
• Durable, commercial-grade design for 24/7 operation: Built to withstand the rigors of continuous signage use, the card emphasizes reliability and stable performance in busy retail floors, corporate lobbies, and event venues. Its compact, durable form factor fits neatly into the OPS bay without adding bulk to the display, while the shielded circuitry helps minimize electromagnetic interference, ensuring consistent performance in challenging environments.
• Compatibility and versatile workflow support for signage professionals: This card is purpose-built for signage and broadcast-adjacent workflows, enabling easy integration with feeders such as video servers, live feeds, and PC-based content players that output 12G-SDI. It supports standard industry expectations for high-definition video transport, making it a versatile addition to signage networks that require reliable long-form playback, synchronized screens, or staggered video delivery across multiple displays.

Technical Details of Sharp NEC Display OPS 12G SDI SDM Interface Card With Full 4K/60Hz Support

• Video Interface: 12G-SDI (SMPTE 12G-SDI) interface designed for high-bandwidth, uncompressed video transport.
• Maximum Resolution: Up to 4K (3840x2160) at 60 Hz for pristine, motion-rich content in signage and video playback.
• Slot Type: Open Pluggable Specification (OPS) SDM interface card compatible with Sharp NEC Display OPS modules.
• Power and Connectivity: Powered through the OPS interface bus; requires no separate external power supply for standard deployments.
• Form Factor and Environment: Compact SDM/OPS-card design engineered for commercial displays; optimized for durability in busy signage environments.
• Applications: Ideal for digital signage, video walls, corporate communications, retail displays, and event installations requiring broadcast-grade video transport into NEC OPS-enabled displays.

How to Install Sharp NEC Display OPS 12G SDI SDM Interface Card With Full 4K/60Hz Support

• Power down the NEC display and disconnect it from any power source before starting the installation to prevent any electrical damage.
• Locate the OPS slot on the back or side of the display, following the manufacturer’s guidance for your specific NEC model. Ensure you are using a compatible Sharp NEC Display OPS module that accepts an SDM interface card.
• Carefully align the 12G-SDI SDM interface card with the OPS slot, making sure the connector orientation matches the slot guides. Gently insert the card until it seats firmly and is flush with the surrounding panel.
• If the design requires, secure the card with any retention screws or mounting hardware provided by the display, ensuring the card remains securely seated during operation and transport.
• Connect your 12G-SDI cables to the card’s SDI ports using appropriate BNC connectors. Use high-quality, properly rated 12G-SDI cables to preserve signal integrity, especially for longer runs or multi-display configurations.
• Reassemble any covers or panels that were removed and reconnect power to the display. Power on the unit and access the display’s on-screen menu (OSD) to verify that the card is detected and enabled as the active video input.
• Check for firmware updates for both the display and, if applicable, the OPS module. Apply updates per the manufacturer’s instructions to ensure optimal compatibility and performance with 4K/60Hz content and 12G-SDI signaling.
• Configure your content source settings to output 4K/60Hz over 12G-SDI, and set any necessary synchronization or color management options within the display’s OSD or connected control software for consistent, uniform output across the signage network.

Frequently asked questions

• Q: What is the Sharp NEC Display OPS 12G SDI SDM Interface Card used for?

  A: It provides a professional 12G-SDI video interface directly within the NEC OPS environment, enabling 4K/60Hz video delivery to Sharp NEC displays. It is ideal for signage projects, signage networks, video walls, and broadcast-adjacent signage workflows that require reliable, high-quality video transport.

• Q: What resolution and frame rate does it support?

  A: The card supports up to 4K resolution at 60 Hz (4K/60) via the 12G-SDI interface, delivering smooth motion and detailed imagery for high-end signage content.

• Q: Is this card compatible with all NEC OPS displays?

  A: It is designed for Sharp NEC Display OPS modules that accept SDM interface cards. Before purchase, verify compatibility with your specific NEC display model and OPS slot version to ensure proper fit and operation.

• Q: Do I need any external power or adapters?

  A: In standard deployments, the card draws power from the OPS slot and does not require an additional external power supply. For certain configurations or firmware environments, follow NEC’s guidance for any supplemental requirements.

• Q: How do I ensure the best performance?

  A: Use certified 12G-SDI cables and high-quality connectors, keep cable runs within recommended lengths, update firmware as recommended by NEC, and configure the display’s OSD to recognize and optimize the 12G-SDI input. This helps maintain signal integrity, color accuracy, and reliable playback across your signage network.
