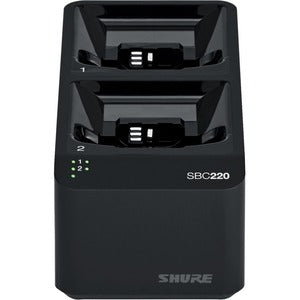

Shure SBC220 2-Bay Networked Docking Charger

Maximize the efficiency and organization of your wireless audio fleet with the Shure SBC220 2-Bay Networked Docking Charger. Designed for professional studios, broadcast environments, and touring setups, this compact charging station docks two devices simultaneously for fast, safe charging and secure storage. When connected to a network, you can monitor charging activity in real time, giving you instant visibility over every transmitter in your system. The SBC220 is the ideal docking solution for teams that rely on SB900A batteries or ULXD1, QLXD1, and AD1 bodypacks, as well as ULXD2, QLXD2, and AD2 handheld transmitters. It combines dependable power, smart management, and a clean, organized work space, so your wireless gear is always ready when you need it most.

• Two-bay docking for flexible workloads: The SBC220 supports charging and docking for any combination of two SB900A batteries or ULXD1/QLXD1/AD1 bodypacks and ULXD2/QLXD2/AD2 handheld transmitters. Whether you’re pairing two batteries for extended shoots or charging a mix of transmitters and packs, this charger handles it with ease, helping you keep critical equipment ready without swapping gear mid-session.
• Networked charging status viewing: When connected to a network, the SBC220 provides visibility into the charging status of each transmitter. This enables remote monitoring across your facility or tour fleet, reducing guesswork and ensuring you never miss a critical power update. This networked capability is especially valuable for productions, houses of worship, and broadcast environments where device readiness is essential.
• Smart, safe storage and charging: The SBC220 is designed to deliver reliable, controlled charging for sensitive wireless gear. Independent bays help prevent overcharging and allow proper ventilation around each device. Clear indicators let you quickly assess per-bay status, so you can manage your equipment with confidence during fast-paced schedules.
• Compact, rack-friendly design: The stylish, durable enclosure fits neatly on a desktop shelf or into a standard 19-inch rack with compatible mounting hardware. Its compact footprint keeps workstations tidy while still offering durable, professional-grade performance for demanding environments.
• Seamless integration with professional wireless ecosystems: The SBC220 complements Shure’s wireless ecosystems, integrating smoothly with your existing battery workflows and transmitter inventories. It’s built to work in tandem with Shure systems, helping you streamline charging, storage, and monitoring without added complexity.

Technical Details of Shure SBC220 2-Bay Networked Docking Charger

• Compatibility: Supports two devices per bay, including SB900A batteries and ULXD1, QLXD1, AD1 bodypack transmitters as well as ULXD2, QLXD2, AD2 handheld transmitters. Designed to accommodate mixed configurations within the two bays for flexible workflows.
• Bays: 2 independently managed charging bays for simultaneous docking and charging of two transmitters or batteries.
• Network connectivity: Ethernet network connection enables remote monitoring of charging status for each connected transmitter. Ideal for centralized control and status reporting across facilities or fleets.
• Charging indicators: Per-bay indicators provide at-a-glance feedback on charging progress, completion, and fault conditions, supporting quick visual checks during events or sessions.
• Power and compatibility: Universal power input with standard AC supply compatible with common venue power setups. Designed to deliver stable charging performance across a range of voltages and frequencies.
• Form factor and mounting: Compact chassis suitable for desktop use or 19-inch rack mounting with compatible hardware, offering a clean installation that fits into existing rack layouts without demanding extra space.
• Safety and reliability: Built to handle continuous use in professional environments, with safeguards that protect both batteries and transmitters during charging and storage.
• System integration: Works within Shure’s broader wireless ecosystem, enabling straightforward alignment with your current inventory, monitoring, and maintenance workflows.

How to install Shure SBC220 2-Bay Networked Docking Charger

Setting up the SBC220 is a straightforward process that minimizes downtime and keeps your wireless system ready for action. Follow these steps to deploy the SBC220 in a studio, venue, or live production environment and begin networked charging and monitoring.

• Choose a stable, well-ventilated location near your network access point and power source. Ensure there is enough clearance around the bays for airflow and easy access to insert and remove devices.
• Place the SBC220 on a desktop, shelf, or install it into a 19-inch rack using compatible mounting hardware. Align the unit so you can comfortably connect devices into both bays without strain on cables.
• Connect the power cable to a suitable AC outlet and ensure the power switch (if present) is in the on position. Verify that the unit powers up and that any status LEDs indicate normal operation.
• Connect an Ethernet cable from the SBC220 to your local network switch or router. If you are using a network management system, ensure the SBC220 is discoverable and added to your monitoring environment according to your network policy.
• Insert your SB900A batteries or ULXD/QLXD/AD transmitters into the two bays. Ensure devices are seated securely so charging contacts align properly. Do not force devices into bays; if resistance is felt, remove and reinsert to correct alignment.
• Power on any devices if needed and allow the SBC220 to begin charging. Observe the bay indicators to confirm charging activity. In a networked setup, verify that the devices appear in your monitoring interface and reflect current charging status.
• Configure any required network management settings or firmware updates through the SBC220’s interface or your existing management software. This ensures you receive the latest features, performance improvements, and security updates.
• Establish a routine for checking charging status before each event or production window. Use the network view to confirm that both bays are charging properly and that devices are ready for use when needed.

Frequently asked questions

• What devices are compatible with the SBC220? The SBC220 supports two devices per charge bay, including SB900A batteries and ULXD1, QLXD1, and AD1 bodypacks, as well as ULXD2, QLXD2, and AD2 handheld transmitters. It’s designed to handle two devices at once, in any combination permitted by the bays.
• Can I monitor charging status remotely? Yes. When the SBC220 is connected to a network, you can view the charging status of each connected transmitter from your network management tools, enabling proactive planning and quick troubleshooting across facilities or tour fleets.
• Is the SBC220 rack-mountable? The SBC220 is designed for versatile placement and can fit in a desktop setup or in a standard 19-inch rack with the appropriate mounting hardware, making it easy to integrate into existing rigging and equipment configurations.
• How many devices can be charged at once? The SBC220 provides two independent bays, allowing two devices to be charged simultaneously. This is ideal for keeping critical batteries and transmitters powered up between sessions.
• What kind of power does it require? The SBC220 uses a universal AC power input, compatible with common 100–240V power environments. This ensures reliable charging across venues, studios, and international shoots without the need for multiple adapters.
