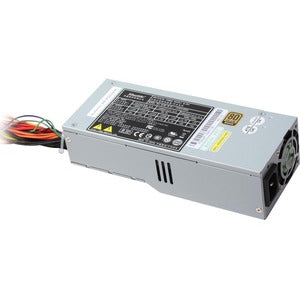

Shuttle PC63J ATX12V & EPS12V Power Supply
The Shuttle PC63J is a high-performance, compact power supply engineered for Shuttle XPC systems with J-series cases. Delivering up to 500W of reliable, stable power, this unit combines robust performance with whisper-quiet operation. Designed for quiet environments—such as libraries, offices, and media rooms—the PC63J minimizes noise while maximizing energy efficiency, making it an ideal upgrade for enthusiasts and professionals who demand dependable power without distractions.
- Robust 500W power delivery: The PC63J provides up to 500W of continuous, clean power to keep multi-core CPUs, discrete GPUs, and high-demand components operating smoothly. It offers ample headroom for everyday productivity tasks, multimedia workloads, and light-to-moderate gaming in Shuttle XPC setups, ensuring stable performance even during peak loads.
- Ultra-quiet operation at 30 dB: Engineered for quiet environments, the PC63J maintains a low noise profile of approximately 30 decibels under typical workloads. This makes it an excellent choice for libraries, offices, and living spaces where silence is valued alongside powerful performance.
- 80 PLUS Bronze efficiency: With 80 PLUS Bronze certification, this power supply delivers higher energy efficiency, producing less heat and reducing electricity consumption. The improved efficiency translates to cooler system temperatures, longer component life, and lower energy bills over time.
- ATX12V & EPS12V compatibility for XPC J-series: Specifically designed to integrate seamlessly with Shuttle XPC J-series chassis, the PC63J ensures stable voltage rails and reliable power delivery for compact, space-saving builds without compromising performance.
- Built-in protection and dependable reliability: The PC63J is equipped with essential protection features—over-current, over-voltage, short-circuit, and over-temperature safeguards—to shield your system. Coupled with quality components and solid construction, this power supply supports long-term reliability in demanding environments.
Technical Details of Shuttle PC63J
- Maximum Output Power: 500W of continuous power for reliable operation of CPU, GPU, and peripherals in Shuttle XPC systems.
- Efficiency: 80 PLUS Bronze certified, delivering improved energy use and reduced heat generation compared to standard PSUs.
- Noise Level: Approximately 30 dB under typical usage, contributing to a quiet PC environment suitable for offices and study spaces.
- Compatibility: ATX12V and EPS12V standard compatibility designed for Shuttle XPCs with J-series cases, ensuring stable power delivery and easy integration.
- Protection Features: Includes essential safeguards such as over-current protection (OCP), over-voltage protection (OVP), short-circuit protection (SCP), and over-temperature protection (OTP) to protect both the PSU and connected components.
- Design Focus: Built with high-quality components and a thermal-conscious design to maximize reliability and reduce the likelihood of thermal throttling during prolonged use.
How to install Shuttle PC63J
Installing the Shuttle PC63J in a Shuttle XPC system is straightforward and quick. Follow these steps to ensure a secure and reliable setup that takes full advantage of its 500W capacity and quiet operation.
Before you begin, power down your computer and unplug all cables. Ground yourself to avoid static discharge, and remove the case side panel to access the interior.
1) Disconnect existing cables and remove the old power supply (if upgrading). If you are upgrading, carefully detach all power connectors from the motherboard, graphics card, drives, and peripherals. Set the old unit aside in a safe location.
2) Align the PC63J with the case mounting points. The PSU should slide into the power supply bay with the fan facing an unobstructed intake area. Secure it using the screws provided with the case or the PSU itself.
3) Connect the primary 24-pin ATX power connector to the motherboard. Ensure a clean, firm connection to provide stable main power for the system.
4) Attach the 4/8-pin CPU power connector (EPS12V) to the CPU power socket on the motherboard. This supplies the processor with adequate voltage for stable operation, especially under load.
5) Connect any additional power cables to graphics cards, storage drives, and other components as needed. Route cables neatly to maintain good airflow and minimize cable clutter within the compact Shuttle XPC chassis.
6) Double-check all connections and secure any loose cables. Replace the case side panel, reconnect peripherals, and power on the system. If the system does not boot, re-check all power connections and ensure that the PSU switch (if present) is in the correct position.
7) After power-on, monitor system temperatures and voltages to confirm stability. If you notice unusual fan noise, heat, or instability, re-evaluate cable routing and ensure proper seating of connectors. The PC63J’s efficiency and cooling design will help maintain steady performance with proper installation.
Tips for optimal performance:
- Keep the PSU intake clear of dust and ensure adequate clearance around the chassis to promote effective cooling.
- If applying in a multimedia or living-space environment, consider dust filters or gentle cleaning routines to preserve airflow and efficiency over time.
- Regularly inspect connectors for wear or looseness after the first few weeks of use, especially after hardware changes or upgrades.
Frequently asked questions
-
Q: Is the Shuttle PC63J compatible with XPC systems that use J-series cases?
A: Yes. The PC63J is designed specifically for Shuttle XPCs with J-series cases, providing stable power delivery and reliable operation in these compact builds. -
Q: What efficiency rating does the PC63J have?
A: It is 80 PLUS Bronze certified, offering improved energy efficiency and reduced heat generation compared to non-certified power supplies. -
Q: How quiet is the PC63J?
A: The power supply operates around 30 dB under typical workloads, making it suitable for quiet environments such as libraries, offices, and media rooms. -
Q: Does the PC63J come with modular cables?
A: The available information indicates a standard configuration suitable for Shuttle XPC installations. Modular cabling details are not specified in the provided documentation. -
Q: What protection features are included?
A: The PC63J includes essential safeguards such as over-current protection (OCP), over-voltage protection (OVP), short-circuit protection (SCP), and over-temperature protection (OTP) to protect both the power supply and connected components.
