Description

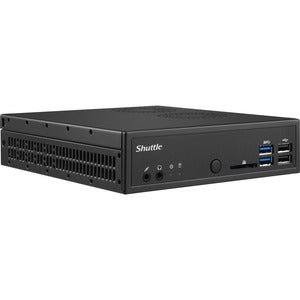

Shuttle XPC DH110 Barebone System - Slim PC - Socket H4 LGA-1151
The Shuttle XPC DH110 Barebone System is a compact, high-performance platform engineered for 4K playback, immersive digital signage, and compact desktop deployments. Built around the Intel Skylake ecosystem with the LGA-1151 socket and the Intel H110 chipset, this slim PC delivers reliable processing power in a space-saving chassis. Designed to meet the demands of vertical markets—such as digital signage, kiosks, and compact workstations—the DH110 combines a sleek footprint with scalable performance to handle demanding media tasks, all while maintaining efficient thermal and energy balance.
- 4K readiness with Intel HD graphics — Experience smooth 4K video playback and bright, detailed visuals thanks to the integrated Intel HD Graphics engine and the Skylake-based performance at the heart of the DH110. Ideal for digital signage, interactive kiosks, and media-rich applications.
- Slim, space-saving design — A compact barebone chassis engineered for tight installations, wall or monitor mounting, and vertical market deployments where every millimeter matters. The slim form factor enables discreet placement in storefronts,POP displays, or slim desksides.
- Reliable Skylake platform with H110 chipset — Built around the Intel H110 chipset and 6th generation Skylake architecture, delivering dependable performance and broad compatibility for a variety of small form-factor workloads.
- CPU flexibility up to 65W — Supports the latest 6th generation Intel Core processors in the LGA-1151 (Socket H4) family up to 65W, providing a balance of speed and efficiency for multitasking, multimedia, and light workstation tasks.
- Easy barebone customization — Designed for rapid integration: add your chosen memory and storage, install the CPU, and configure the system with your preferred OS. It’s an accessible platform for developers, integrators, and SMBs building compact, reliable PCs.
Technical Details of Shuttle XPC DH110 Barebone System
- CPU Socket: LGA-1151 (Socket H4)
- Chipset: Intel H110
- Processor Support: 6th Generation Intel Core/Pentium processors with a thermal design power (TDP) up to 65W
- Graphics: Intel HD Graphics engine integrated into the CPU for smooth 4K playback and multimedia performance
- Form Factor: Slim barebone PC designed for compact installations and flexible mounting options
- Expansion & I/O (typical expectations for DH110 class systems): supports standard USB, display outputs, and network connectivity via built-in or modular interfaces (exact ports vary by model configuration; always verify with the latest spec sheet)
How to install Shuttle XPC DH110
To complete your Shuttle XPC DH110 barebone system, you’ll add a compatible processor, memory, storage, and the operating system. Follow these general steps to assemble and boot your compact PC:
- 1. Prepare a compatible 6th generation Intel Core processor (LGA-1151) rated up to 65W. Ensure you have the correct cooling solution for your chosen CPU and that you follow the manufacturer’s installation guidelines for the heatsink and thermal paste.
- 2. Open the barebone chassis and locate the LGA-1151 socket. Carefully place the CPU into the socket, aligning corner marks, secure the CPU in place, and attach the cooling solution as specified by Shuttle’s documentation.
- 3. Install memory modules compatible with the DH110 platform. Use the available DIMM/DDR4 slots, seating the modules firmly until the latches click into place. Check the motherboard manual for supported memory speeds and capacities.
- 4. Install storage drives (SSD or HDD) into the dedicated drive bays or connectors provided by the chassis. Connect data and power interfaces according to the manual and ensure seating is secure for reliable operation.
- 5. Reconnect all power and data cables, close the chassis, and power on the system. Enter the BIOS/UEFI to configure boot order, enable any necessary virtualization features, and confirm that the CPU and memory are detected correctly.
- 6. Install your preferred operating system and install the latest chipset, graphics, and BIOS updates from Shuttle or the CPU/GPU vendor to ensure optimal performance and stability for 4K playback and multi-monitor setups.
Frequently asked questions
-
Q: What CPUs are compatible with the Shuttle XPC DH110?
A: The DH110 supports 6th generation Intel Core processors that fit the LGA-1151 socket, with a recommended maximum TDP of 65W to ensure reliable cooling and performance. -
Q: Can I upgrade memory and storage after purchase?
A: Yes. The barebone design is intended for user upgrades of memory and storage. Check the official spec sheet for the exact memory type, capacity, and the number of slots supported, then install compatible DDR4 modules and storage drives. -
Q: Does it support 4K video?
A: Yes. The Intel HD Graphics engine integrated with Skylake CPUs enables 4K video playback and rich visuals, suitable for digital signage and media-focused applications. -
Q: What kind of mounting options are available?
A: The DH110 is designed as a slim barebone PC for compact installations. It can be mounted in typical small form factor enclosures, under desks, or in mounted display setups depending on the chassis configuration and mounting accessories. -
Q: What additional components will I need?
A: You’ll need a compatible CPU, memory, storage (SSD/HDD), a power supply (if not included), and an operating system license. Optional peripherals (keyboard, mouse, monitor) are not included and will depend on your use case.
