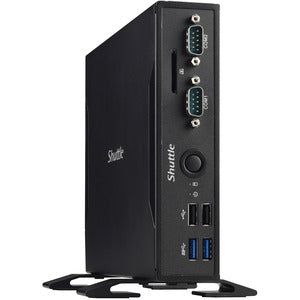

Shuttle XPC DS67U7 Barebone System – Slim PC with Intel Core i7-6500U

The Shuttle XPC DS67U7 is a fanless Slim PC designed for demanding environments where reliability, quiet operation, and flexible connectivity are essential. Housed in a compact 1.3-liter metal chassis, this barebone system blends industrial-grade ruggedness with modern performance, making it an ideal foundation for digital signage, kiosks, POS terminals, compact business desktops, and compact media centers. With a Skylake-U processor, rich input/output options, and integrated wireless connectivity, the DS67U7 delivers dependable, energy-efficient computing in a space-constrained footprint.

• Fanless, silent operation for noise-sensitive spaces: Built around a passive cooling design, the DS67U7 minimizes moving parts and heat output, enabling installation in quiet offices, retail environments, or healthcare settings without audible fan noise.
• High-performance processing in a compact form: Powered by the Intel Core i7-6500U processor clocked at 2.50 GHz (with turbo capability), this slim PC delivers responsive multitasking, smooth multimedia playback, and capable performance for professional applications while maintaining a compact footprint.
• Extensive connectivity for versatile deployments: It offers a robust set of I/O including HDMI and DisplayPort video outputs, dual Intel Gigabit LAN, USB 3.0/2.0 ports, serial interfaces, high-quality audio, a card reader, and built-in Wi‑Fi 802.11ac with two antennas—covering wired and wireless networking needs in one compact unit.
• Flexible storage and expansion options for growing workloads: Designed as a true barebone, the DS67U7 can be configured with 2.5" SATA HDD/SSD storage for fast local data access and expansion via its internal connectors to suit standard business and embedded use cases.
• Rugged, space-saving design for 24/7 operation: The metal chassis is engineered for durability in industrial settings, delivering reliable performance around the clock in a slim, space-saving package that fits behind a monitor, on a shelf, or in a wall-mount setup.

Technical Details of Shuttle XPC DS67U7 Barebone System

• Processor: Intel Core i7-6500U 2.50 GHz (Skylake-U) with integrated graphics for efficient performance and smooth visuals
• Chassis: 1.3-liter metal enclosure designed for a compact, fanless, quiet operation in industrial environments
• Display outputs: HDMI and DisplayPort for flexible multi-monitor setups and high-resolution content delivery
• Networking: Dual Intel Gigabit LAN ports plus built-in Wi‑Fi 802.11ac with two external antennas for robust wireless connectivity
• Storage: Support for 2.5" SATA HDD/SSD storage to provide fast local data access and ample capacity for applications
• Memory: Supports standard memory modules appropriate for a barebone system; memory capacity depends on selected configuration
• Expansion and peripherals: USB 3.0/2.0 ports, serial ports, audio output/input, and card reader to handle diverse peripherals and workflows
• Power and reliability: Energy-efficient operation with a design geared toward continuous operation in demanding environments
• Form factor and mounting: Slim, compact chassis suitable for desktop placement, wall mounting, or VESA-compatible setups

How to install Shuttle XPC DS67U7

• Prepare your components: Select and install compatible RAM modules into the DS67U7’s memory slots and choose a 2.5" SATA HDD or SSD for primary storage. Ensure you have the correct mounting hardware if you plan to wall- or VESA-mount the unit.
• Open the chassis: Carefully remove the access screws or side panel to reveal the expansion bay and memory slots. Ground yourself to prevent static discharge before touching internal components.
• Install memory: Insert the memory modules into their slots, ensuring they are firmly seated with the latches engaged. Confirm the modules are fully seated before closing the chassis.
• Install storage: Secure the 2.5" SATA drive into the drive bay and attach the SATA data and power cables to the corresponding connectors on the motherboard or backplane, following the chassis layout for clean cable routing.
• Reconnect and assemble: Reinstall the side panel, reconnect power and peripheral cables (monitor to HDMI or DisplayPort, keyboard/mouse as needed, and network cables or Wi‑Fi antennas).
• Power on and configure: Plug in the power adapter, power up the system, and enter the BIOS/UEFI to set boot order, enable or disable virtualization features, and verify hardware recognition (RAM, storage, network adapters).
• Install operating system and drivers: Install your preferred OS (Windows or Linux) and install the latest drivers for the Intel components and chipset to ensure optimal stability and feature compatibility.
• Finalize deployment: Update firmware if available, configure any network settings for your environment (static IP or DHCP, VLANs, etc.), and test the system with your target applications to confirm performance and reliability.

Frequently asked questions

• What is the Shuttle XPC DS67U7? A fanless, ultra-compact barebone PC designed for industrial and embedded use, built around the Intel Core i7-6500U with a robust set of I/O and wireless connectivity to support diverse deployment scenarios.
• Which processors are available? The DS67U7 features the Intel Core i7-6500U processor (Skylake-U) with 2.50 GHz base frequency, offering strong performance for everyday business tasks and media workloads in a small form factor.
• What kind of display outputs are supported? The unit provides both HDMI and DisplayPort outputs, enabling flexible multi-monitor configurations and high-resolution visuals for presentations, digital signage, and productivity tasks.
• What about networking and wireless connectivity? It includes dual Intel Gigabit LAN ports for reliable wired networking and built-in Wi‑Fi 802.11ac with two antennas for fast wireless connections in locations where cables aren’t ideal.
• What storage and memory options does it support? As a barebone system, the DS67U7 is designed to be customized with a 2.5" SATA SSD or HDD for local storage and standard memory modules compatible with the chassis; exact capacities depend on the chosen configuration.
• Is the DS67U7 suitable for 24/7 operation? Yes. The fanless design and industrial-grade metal chassis are optimized for continuous operation in demanding environments, delivering long-term reliability with minimal maintenance.
• Which operating systems are supported? The DS67U7 works with Windows and Linux distributions, with drivers and firmware typically provided by Shuttle and chipset vendors to ensure full hardware compatibility.
