Description

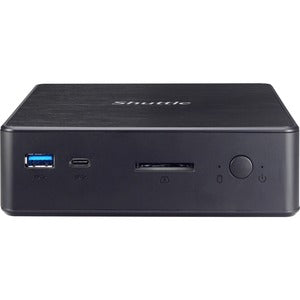

The Shuttle XPC nano NC02U7 Barebone System is a palm-sized powerhouse designed to blend desktop-grade performance with travel-friendly portability. Built for demanding tasks in a compact format, this mini PC is the perfect foundation for a high-efficiency workstation, a compact home theater PC, or a digital signage solution that still looks sleek on a crowded desk. Powered by the Intel Core i7-6500U at 2.50 GHz and grounded in the widely respected Skylake-U platform, the NC02U7 delivers responsive multitasking, smooth content creation, and crisp 4K output without compromising on energy efficiency or quiet operation. This is a true barebone system: it gives you the core compact chassis, robust cooling, and essential I/O, while you tailor memory, storage, and operating system to your exact needs. Whether you want Windows, Linux, or another OS, this Shuttle mini PC is designed to slot into your workflow with minimal footprint and maximal flexibility. From a sleek living room media center to a compact office workstation, the NC02U7 embodies Shuttle’s legacy of reliable engineering and thoughtful industrial design. If you’re assembling a content-creation setup, a small server, or a portable business machine, this palm-sized platform puts a full range of modern computing within arm’s reach while preserving a tidy, low-profile footprint.
- Ultra-compact, space-saving design — a palm-sized barebone system that tucks behind monitors, into shelves, or onto a wall mount. Its small footprint keeps your desk clear while still delivering desktop-worthy performance for everyday multitasking, streaming, and light production tasks. The NC02U7’s sleek profile pairs well with both modern offices and living rooms, making it an ideal base for a discreet 4K-ready setup.
- Powerful 6th Generation performance — at the heart of this barebone is the Intel Core i7-6500U processor clocking in at 2.50 GHz, part of Intel’s Skylake-U family. This delivers brisk responsiveness for office productivity, web browsing, and multimedia workloads, while offering enough headroom for moderate photo and video editing, virtualization, and data processing. The integrated GPU supports smooth HD and 4K playback, providing crisp visuals for high-resolution content without needing a discrete graphics card.
- Barebone flexibility — the NC02U7 is designed for users who want to tailor memory, storage, and operating system to their needs. As a barebone, you’ll install your own RAM modules and storage drives, then choose Windows, Linux, or another OS. This approach lets you optimize cost, performance, and energy efficiency for your specific use case — from a compact Windows workstation to a lightweight Linux server or media center.
- Reliable connectivity for modern workflows — built with a thoughtful I/O layout, the NC02U7 supports high-speed data transfer and flexible display options. Expect a combination of HDMI and DisplayPort outputs for 4K-capable video, plus USB 3.0 and other essential ports for peripherals, external storage, and network connectivity. The system is designed to work seamlessly with modern displays, peripheries, and network environments, enabling smooth multi-display setups and quick access to data.
- Energy-efficient and quiet operation — leveraging Intel’s 6th-gen architecture and the compact chassis design, the NC02U7 emphasizes low power draw and quiet cooling. This makes it suitable for 24/7 operation in office, home theater, or signage applications without generating distracting noise or heat. The cooling solution is engineered to handle extended workloads while preserving performance, so you can rely on stable operation across long sessions.
Technical Details of Shuttle XPC nano NC02U7 Barebone System
- CPU — Intel Core i7-6500U, 2.50 GHz base clock, part of the Skylake-U family
- Platform — Intel Skylake-U architecture for improved efficiency and integrated graphics
- Memory — user-installable memory (RAM) via SO-DIMM slots; supports up to a practical maximum configuration per model (memory is not included in the barebone package)
- Storage — supports standard 2.5" SATA drives (hard disk or SSD); M.2 storage options may be available depending on specific model configuration
- Graphics — Intel HD Graphics 520 integrated graphics for everyday tasks and 4K media output
- Video outputs — HDMI and DisplayPort (capable of 4K output at compatible refresh rates)
- Networking — Gigabit Ethernet; optional WLAN/Bluetooth module depending on configuration
- Ports — a selection of USB ports (including USB 3.0), plus audio and other I/O as configured
- Power — external power supply required; power requirements vary by configuration
- Form factor — palm-sized mini PC / barebone chassis designed for compact builds
How to install Shuttle XPC nano NC02U7 Barebone System
- Prepare your workspace with an ESD-safe mat and a grounded wrist strap. Gather your components: RAM modules compatible with the NC02U7’s SO-DIMM slots, and a 2.5" SATA SSD/HDD (plus any M.2 storage if your configuration supports it).
- Power down all devices and unplug the barebone from any power source. Open the chassis by removing the access panel or screws as required by the model’s design.
- Install memory first: align each SO-DIMM module with the slot, insert at a slight angle, and press firmly until the latches click into place. Ensure you’re using RAM that is supported by the motherboard and that you install the correct size and speed as recommended by the user manual.
- Install storage: insert a 2.5" SATA drive into the designated bay and connect the SATA data and power cables. If there is an M.2 slot, insert the M.2 SSD carefully and secure it with the screw provided.
- Reassemble the chassis, reconnect any cables, and attach a monitor to the appropriate video output (HDMI or DisplayPort). Connect a keyboard and mouse, and plug in the external power supply. Power on and enter the BIOS/UEFI to configure boot order and hardware settings.
- Install your operating system from a USB flash drive or the installation media of your choice. Follow the on-screen prompts to complete the OS setup, install drivers (if required), and customize settings for your workflow. After installation, you can configure display arrangements, power profiles, and storage partitions as needed.
Frequently asked questions
- Is the NC02U7 a complete PC out of the box? No. It is a barebone system requiring you to add RAM, storage, and an operating system to create a fully functional computer. This gives you flexibility to tailor the machine to your exact needs.
- What can I run on this Shuttle mini PC? You can install Windows 10/11, most flavors of Linux, and other compatible operating systems depending on driver support and your intended use case. The 6th-gen Skylake-U platform provides solid compatibility for mainstream software.
- Does it support 4K displays? Yes. The NC02U7 is designed with video outputs (HDMI and DisplayPort) capable of delivering 4K resolution at supported refresh rates, making it suitable for high-resolution media playback and professional workstations.
- What is the maximum memory and storage? Memory and storage capacity depend on the specific configuration of your NC02U7 barebone model. Generally, it supports user-installed RAM up to a practical limit (often up to 16 GB in many NC02U7 configurations) and 2.5" SATA storage with optional M.2 slots. Always check the exact model’s specifications for your configuration.
- Do I need a separate power supply? Yes. The NC02U7 uses an external power brick/adapter. Power requirements vary by configuration, so use the supplier-recommended adapter to ensure stable operation and preserve longevity.
- Can I mount it in a desk or wall? Many NC02U7 systems are compatible with VESA mounting or small-form-factor enclosures, allowing flexible installation in tight spaces, behind monitors, or in AV rack setups. Refer to your model’s mounting options in the manual.
