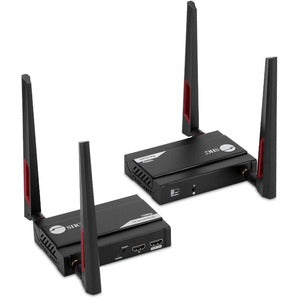

SIIG 1 to 4 Full HD Wireless HDMI Extender with Loopout & IR Kit

If you are seeking a reliable solution for extending your HDMI signals wirelessly, the SIIG 1 to 4 Full HD Wireless HDMI Extender with Loopout & IR Kit stands out as the ideal choice. This cutting-edge technology enables seamless connectivity between multiple devices without the clutter of wires, delivering an exceptional viewing experience. Perfect for use in conference rooms, educational settings, and home entertainment systems, this product is designed to fulfill all your connectivity requirements.

• Multiple Connectivity Options: The transmitter unit is equipped with two 5dBi detachable antennas, an HDMI video input port, an HDMI video loop-out port, a 3.5mm IR output port, and a DC 12V/1A power jack, ensuring a multitude of connectivity possibilities.
• Compact and Flexible Design: With a compact design, the extender makes installation straightforward in various settings, making it an optimal choice for apartments, condos, or any space where wiring is restricted.
• High-Quality Transmission: It supports audio formats up to LPCM 2.0 CH at 48KHz, delivering high-quality configurable, low-bandwidth video that supports up to 1080p@60Hz for a breathtaking visual experience.
• Long-Distance Wireless Capability: Utilizing advanced 5G wireless high-speed transmission technology, the extender offers a working range of up to 656 feet in line-of-sight environments, making it suitable for expansive areas.
• Multiple Receiver Support: Connect one transmitter to up to four receivers along with a local HD display simultaneously. Ideal for sharing content like movies or surveillance feeds across different rooms.

Technical Details of Product

• Transmitter Unit (TX): 2 x 5dBi detachable antennas, 1 x HDMI video input port, 1 x HDMI video loop-out port, 1 x 3.5mm IR output port, 1 x reset button, 1 x DC 12V/1A power jack
• Receiver Unit (RX): 2 x 5dBi detachable antennas, 1 x HDMI video output port, 1 x 3.5mm IR input port, 1 x reset button, 1 x DC 12V/1A power jack
• Audio Format Supported: LPCM 2.0 CH up to 48KHz
• Maximum Transmission Distance: Up to 656 ft in open space
• Supports Video Resolution: Up to 1080p@60Hz
• IR Signal Extension: Built-in one-way IR signal extension module supports a 60KHz carrier frequency

How to Install

Installing the SIIG 1 to 4 Full HD Wireless HDMI Extender is a simple and straightforward process:

1. Connect your HDMI source device (e.g., DVD player, Blu-ray player) to the transmitter unit using an HDMI cable.
2. Plug the transmitter's DC power jack into a power outlet with the provided power adapter.
3. Attach the detachable antennas to both the transmitter and receiver units.
4. Connect the receiver unit to your HDMI display (TV, projector, etc.) using another HDMI cable.
5. Power on the receiver unit by connecting it to a DC power outlet.
6. Ensure both the transmitter and receiver units are powered on; they will automatically pair to create a wireless connection.
7. For IR control, connect the IR output cable to the transmitter and the IR input to the receiver as needed.

Frequently Asked Questions

• Q: Does this device require any software or Wi-Fi connection?
  A: No, the SIIG 1 to 4 Full HD Wireless HDMI Extender is a plug-and-play device that does not require any software installation or Wi-Fi connection.
• Q: Can I use multiple receivers with this system?
  A: Yes, you can connect one transmitter to up to four receivers and a local HD display simultaneously.
• Q: What is the maximum distance this extender can transmit signals?
  A: The extender can transmit signals up to 656 feet in an open space, depending on the environment and line of sight.
• Q: What devices are compatible with this extender?
  A: The extender works with most HDMI-equipped devices such as DVD players, Blu-ray players, set-top boxes, AV receivers, cable/satellite boxes, and computer systems.
• Q: What is the maximum resolution supported by this product?
  A: The SIIG 1 to 4 Full HD Wireless HDMI Extender supports video resolutions up to 1080p at 60Hz.
