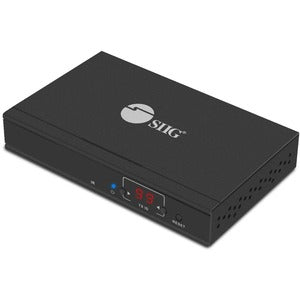

SIIG 1080p HDMI Over IP Extender with IR - Encoder (TX)
Upgrade your AV distribution with the SIIG 1080p HDMI Over IP Extender with IR – Encoder (TX). This compact encoder is designed to send high‑definition HDMI video with stereo audio over a standard UTP CAT5e/6 network cable to a remote display. Built for professional environments—from boardrooms and classrooms to digital signage and home theater installations—this device delivers reliable, scalable, IP‑based HDMI extension. When paired with the compatible IR‑enabled RX decoder, you gain seamless control of source equipment from the remote display location, creating a truly centralized AV experience over a dedicated IP network. With a footprint designed for scalable deployments, this encoder is the ideal starting point for a TX/RX matrix that can expand to meet growing presentation and signage needs.
- Transmit HDMI signals with stereo audio over UTP CAT5e/6 cabling to a remote display up to 120 meters away, enabling flexible room layouts and long‑reach installations without compromising video or audio quality.
- IR integration lets you control the HDMI source from the display end, delivering convenient, intuitive operation for presenters and viewers alike while maintaining a clean, clutter‑free setup.
- Designed for scalable deployments, this encoder works as part of a TX/RX matrix over a dedicated IP network, empowering administrators to expand coverage by adding RX decoders (sold separately) as needs evolve.
- Requires the HDMI Over IP Extender with IR – Decoder (RX) component, part number CE-H23C11-S2, to complete the two‑way TX/RX distribution and support full remote viewing across the network.
- Optimized for 1080p HD delivery with solid reliability in professional environments, delivering a dependable distribution solution for conference rooms, classrooms, and multi‑zone digital signage without the complexity of traditional point‑to‑point HDMI wiring.
Technical Details of SIIG 1080p HDMI Over IP Extender with IR - Encoder (TX)
- Video/Audio Transmission: Receives HDMI signals with stereo audio and transmits them to remote displays over UTP CAT5e/6 cabling.
- Maximum Cable Distance: Up to 120 meters (about 394 feet) over CAT5e/6 cabling.
- IR Support: Includes IR functionality to allow remote control of the HDMI source from the connected display location.
- Expansion Capability: Functions as part of a scalable TX/RX matrix over a dedicated IP network; designed to work with additional RX units (sold separately) to extend coverage.
- RX Requirement: Requires HDMI Over IP Extender with IR - Decoder (RX) – CE-H23C11-S2, sold separately, to complete the distributed setup.
- Resolution/Quality: Optimized for 1080p HDMI delivery with stereo audio; performance may vary with network conditions and connected hardware.
- System Type: Encoder (TX) unit intended for use in a distributed HDMI over IP system aligned with a dedicated network architecture.
how to install SIIG 1080p HDMI Over IP Extender with IR - Encoder (TX)
Setting up this HDMI over IP extender is straightforward when you follow these steps. The goal is a robust, scalable distribution that preserves video and audio quality while enabling convenient remote control from the display area.
- Connect your HDMI source (such as a Blu‑ray player, computer, or media streamer) to the HDMI input on the TX encoder using a standard HDMI cable.
- Connect the TX encoder to the network using a CAT5e/6 cable. Run the cable to the location where the RX decoder will be placed, ideally within the same dedicated IP network.
- At the RX (decoder) location, connect the HDMI output from the RX to the display or HDMI monitor using a standard HDMI cable. Attach the RX to the same CAT5e/6 run that links back to the TX encoder, ensuring the network connectivity remains intact.
- Connect any IR emitter or receiver included with the system as specified in the product manual to enable remote control from the display side. Ensure the IR components are positioned for reliable signal transmission between the source and the display room.
- Power the TX encoder and the RX decoder (as required by your specific hardware) and verify that the remote display can receive the HDMI signal without interruptions. If you plan to scale beyond a single TX/RX pair, set up the additional RX units and configure any network switches or routing rules as needed for your dedicated IP network.
Frequently asked questions
- What is the primary purpose of the SIIG HDMI Over IP Extender (TX)? It enables HDMI video and stereo audio to be transmitted over a dedicated IP network using CAT5e/6 cabling to remote displays, reducing cable clutter and enabling flexible room layouts.
- Do I need an RX decoder to complete the system? Yes. The TX encoder requires the HDMI Over IP Extender with IR – Decoder (RX) component (CE-H23C11-S2) to receive the signal at the remote display and provide the full TX/RX matrix functionality.
- What is the maximum distance for transmission? The system supports up to 120 meters over CAT5e/6 cabling between the TX and RX units, making it suitable for larger rooms or multi‑room setups.
- What resolution is supported? The encoder is designed for 1080p HDMI delivery with stereo audio. Native resolution and performance will depend on the source, display, and network conditions.
- Can this be expanded into a larger matrix? Yes. The product is described as a scalable TX/RX matrix over a dedicated IP network, allowing additional RX units to be deployed to extend coverage across more displays or rooms.
- Is IR control included? The product title indicates IR support, and the system is designed to allow IR control from the display location when paired with the appropriate RX decoder and IR accessories.
