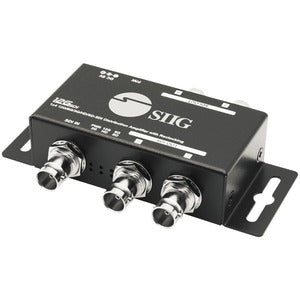

SIIG 1x4 12G SDI Distribution Amplifier - 70M

The SIIG 1x4 12G SDI Distribution Amplifier is an essential tool for anyone who requires high-quality video distribution across multiple displays. This powerful device effortlessly duplicates and splits a single 12G SDI input into four 12G SDI outputs, enabling real-time simultaneous multi-viewing for various applications such as broadcasting, live events, and production studios. With its advanced technology and durable design, this distribution amplifier ensures that your video signals remain intact and reliable, even over long distances.

• High Performance Video Distribution: The SIIG 1x4 SDI Distribution Amplifier utilizes state-of-the-art automatic equalization technology to transmit signals over impressive distances: 180m (594ft) @3G, 100m (330ft) @6G, and 70m (230ft) @12G using Belden 1694A cables. This feature guarantees seamless video distribution without compromising signal quality.
• Versatile Signal Compatibility: Designed to transmit not just video, but also ancillary data and embedded audio signals, this amplifier is perfect for comprehensive multimedia setups. It supports various formats, making it a versatile choice for different applications.
• Built-in Re-clocking and Equalization: Ensure optimal performance with built-in re-clocking and equalization features which maintain signal integrity without any loss. This technology is especially beneficial when cascading multiple units for longer transmission distances.
• Reliable Power Connection: The SIIG 1x4 SDI Distribution Amplifier includes an inter-locking power supply that ensures safe and reliable power connections. This feature enhances the overall safety and effectiveness of your setup, allowing for uninterrupted performance.
• Durable and User-Friendly Design: Housed in a robust metal casing, the amplifier minimizes EMI/RF interference, promoting long-lasting performance. LED indicators provide clear notifications for signal lock and video rate, making it easy to monitor the system. The plug-and-play functionality means no software installation is required, simplifying the setup process.

Technical Details of Product

• Input: 1 x 12G SDI
• Outputs: 4 x 12G SDI
• Transmission Distances: 180m (594ft) @3G, 100m (330ft) @6G, 70m (230ft) @12G
• Compatibility: Ancillary data and embedded audio signals
• Power Supply: Inter-locking power supply for reliable power connection
• Housing: Metal casing for durability
• LED Indicators: Signal lock and video rate notifications
• Installation: Plug and play, no software required

How to Install

Installing the SIIG 1x4 12G SDI Distribution Amplifier is a straightforward process:

1. Begin by placing the amplifier on a flat, stable surface.
2. Connect your 12G SDI input source (such as a camera or SDI output from a switcher) to the amplifier's input port.
3. Connect SDI cables from each of the amplifier’s output ports to the desired display devices.
4. Ensure the inter-locking power supply is securely connected to the amplifier and plugged into a power outlet.
5. Turn on your input source and connected displays to verify that the video signal is being transmitted correctly. Check the LED indicators for signal lock and video rate notifications.

Frequently Asked Questions

1. What is the maximum distance the SIIG 1x4 12G SDI Distribution Amplifier can transmit a 12G SDI signal?

The maximum distance for a 12G SDI signal is 70m (230ft) when using high-quality Belden 1694A cables.

2. Can this amplifier transmit audio signals?

Yes, the SIIG 1x4 SDI Distribution Amplifier can transmit embedded audio signals along with video and ancillary data.

3. Is any software installation required?

No, the amplifier is designed for plug-and-play operation, meaning no software installation is necessary.

4. How do I know if the amplifier is receiving a signal?

The built-in LED indicators will notify you of signal lock and video rate, ensuring you can easily monitor the status of the connections.

5. Is the amplifier durable for long-term use?

Yes, the SIIG 1x4 12G SDI Distribution Amplifier is housed in a sturdy metal casing that minimizes EMI/RF interference, ensuring reliable performance over time.
