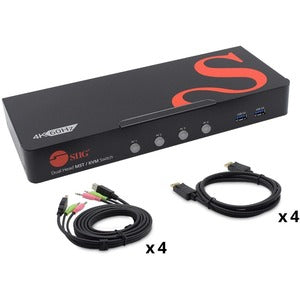

SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch

The SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch is an advanced and highly efficient device designed to enhance your computing experience. With its ability to control up to four DisplayPort 8K computers using just one keyboard and mouse, this KVM switch makes multitasking seamless. Whether you're a gamer, a designer, or simply need to manage multiple systems at once, this KVM switch is the perfect solution for you.

• Easily Control Multiple Systems: Manage four DisplayPort 1.4 and USB computers effortlessly with a single set of input devices. The KVM switch supports connection to one 8K display or dual 4K monitors, ensuring you have all the screen real estate you need for efficient work.
• Exceptional Video Quality: Experience stunning visuals with Ultra HD video resolution of up to 8K (7680x4320) at 30Hz or dual 4K (4096x2160) at 60Hz displays. The switch supports YUV 4:4:4 8-bit, deep color, and 3D video for an immersive viewing experience.
• High Performance Connectivity: Offering a true video bandwidth of 32.4Gbps, this KVM switch supports 7.1 channel surround sound, delivering an impressive auditory experience alongside superb visuals.
• Versatile Input and Output Options: The SIIG KVM switch is equipped with four DisplayPort 1.4 video input ports, multiple USB ports, and 3.5mm audio jacks, allowing you to connect a wide range of devices including printers, keyboards, and mouse peripherals.
• Robust and Reliable Design: Built with a metal housing, this KVM switch is not only drop-resistant and anti-collision but also enhances heat dissipation, ensuring stable and safe operation during prolonged use.

Technical Details of Product

• Model: SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
• Video Resolution: Up to 8K @30Hz and dual 4K @60Hz
• USB Ports: 4 x USB-A 3.2 Gen 1, 2 x USB-A 1.1 HID
• Audio Jacks: 10 x 3.5mm audio/mic jacks
• Power Supply: DC 12V/2A
• Compatibility: Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• Data Transfer: Up to 5Gbps for USB-A 3.2, 12Mbps for USB-A 1.1 HID
• Dimensions: Compact design for easy integration

How to Install

1. Connect your keyboard and mouse to the designated USB ports on the KVM switch.
2. Plug in the four computers to the DisplayPort input ports using appropriate cables.
3. Connect your display(s) to the MST output ports of the KVM switch.
4. Attach the power supply to the KVM switch and plug it into an electrical outlet.
5. Turn on the KVM switch and select the desired computer using the front panel buttons or hotkeys.

Frequently Asked Questions

1. Is the SIIG KVM switch compatible with all operating systems?

Yes, it is compatible with various versions of Windows including Windows 11, 10, 8.x, and 7.

2. Does it support hotkey switching?

Yes, you can switch between connected devices using programmable hotkeys on your keyboard.

3. What are the audio capabilities of this KVM switch?

The switch supports 7.1 channel surround sound and includes multiple 3.5mm jacks for audio and microphone inputs.

4. Can I use this switch with non-DisplayPort devices?

This KVM switch is specifically designed for DisplayPort devices; other types of connections may require adapters and are not guaranteed to work.

5. Is there any software installation required?

No, the SIIG KVM switch features plug-and-play capabilities, meaning no driver installation is necessary.
